| NSTU-SC-010、NSTU-SC-014 |
|
上海川代轴承机械有限公司 新闻动态 2026-6-21
|
 |
|
Series |
Shaft
Size |
|
Standard |
No Lube/Sealed for Life (-NL) |
|
Part No. |
Description |
Part No. |
Description |
|
204 |
1/2 |
125328 |
NSTU-SC-008 |
@ |
NSTU-SC-008-NL |
|
5/8 |
125329 |
NSTU-SC-010 |
@ |
NSTU-SC-010-NL |
|
3/4 |
125050 |
NSTU-SC-012 |
@ |
NSTU-SC-012-NL |
|
20mm |
125900 |
NSTU-SC-20M |
@ |
NSTU-SC-20M-NL |
|
205 |
7/8 |
125365 |
NSTU-SC-014 |
@ |
NSTU-SC-014-NL |
|
15/16 |
125051 |
NSTU-SC-015 |
@ |
NSTU-SC-015-NL |
|
1 |
125052 |
NSTU-SC-100 |
125054 |
NSTU-SC-100-NL |
|
25mm |
125901 |
NSTU-SC-25M |
@ |
NSTU-SC-25M-NL |
|
206 |
1-1/16 |
125366 |
NSTU-SC-101 |
@ |
NSTU-SC-101-NL |
|
1-1/8 |
125367 |
NSTU-SC-102 |
065642 |
NSTU-SC-102-NL |
|
1-3/16 |
125153 |
NSTU-SC-103 |
052194 |
NSTU-SC-103-NL |
|
1-1/4 |
123174 |
NSTU-SC-104S |
@ |
NSTU-SC-104S-NL |
|
30mm |
125902 |
NSTU-SC-30M |
@ |
NSTU-SC-30M-NL |
|
207 |
1-1/4 |
125154 |
NSTU-SC-104 |
058897 |
NSTU-SC-104-NL |
|
1-5/16 |
125368 |
NSTU-SC-105 |
065681 |
NSTU-SC-105-NL |
|
1-3/8 |
125369 |
NSTU-SC-106 |
125378 |
NSTU-SC-106-NL |
|
1-7/16 |
125155 |
NSTU-SC-107 |
052199 |
NSTU-SC-107-NL |
|
35mm |
125903 |
NSTU-SC-35M |
@ |
NSTU-SC-35M-NL |
|

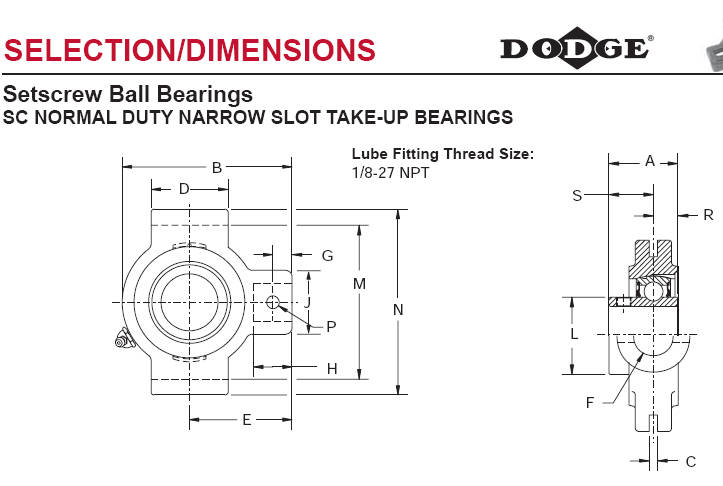

Series |
Shaft Size |
Weight Take-Up lbs.
Framekgs. No. Ref. |
A |
B |
C * |
D |
E |
F
Screw Dia |
G |
H |
J |
L |
M # |
N |
P
Pin Dia |
R |
S |
|
204 |
1/2 |
1.6 |
NS210 |
1-5/32 |
3-1/2 |
1/4 |
1-1/2 |
2-3/16 |
3/4 |
7/16 |
7/8 |
1-3/8 |
1-1/8 |
2-5/8 |
3-1/8 |
5/16 |
27/64 |
47/64 |
|
5/8
3/4 |
1.5
1.4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
20mm |
0.8 |
29.4 |
88.9 |
6.4 |
38.1 |
55.6 |
19.1 |
11.1 |
22.2 |
34.9 |
28.6 |
66.7 |
79.4 |
7.9 |
10.7 |
18.7 |
|
205 |
7/8 |
1.7 |
NS210 |
1-3/16 |
3-9/16 |
1/4 |
1-1/2 |
2-3/16 |
3/4 |
7/16 |
7/8 |
1-3/8 |
1-21/64 |
2-5/8 |
3-1/8 |
5/16 |
27/64 |
49/64 |
|
15/16
1 |
1.6
1.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
25mm |
0.7 |
30.2 |
90.5 |
6.4 |
38.1 |
55.6 |
19.1 |
11.1 |
22.2 |
34.9 |
33.7 |
66.7 |
79.4 |
7.9 |
10.7 |
19.4 |
|
206 |
1-1/16 |
2.9 |
NS308 |
1-25/64 |
4-5/16 |
1/4 |
2-1/2 |
2-11/16 |
3/4 |
1/2 |
15/16 |
1-3/8 |
1-37/64 |
3-1/2 |
4-1/8 |
5/16 |
31/64 |
29/32 |
|
1-1/8 |
2.8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1-3/16 |
2.7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1-1/4 |
2.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
30mm |
1.2 |
35.3 |
109.5 |
6.4 |
63.5 |
68.3 |
19.1 |
12.7 |
23.8 |
34.9 |
40.1 |
88.9 |
104.8 |
7.9 |
12.3 |
23 |
|
207 |
1-1/4 |
2.8 |
NS308 |
1-17/32 |
4-1/2 |
1/4 |
2-1/2 |
2-11/16 |
3/4 |
1/2 |
15/16 |
1-3/8 |
1-27/32 |
3-1/2 |
4-1/8 |
5/16 |
1/2 |
1-1/32 |
|
1-5/16 |
2.7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1-3/8 |
2.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1-7/16 |
2.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
35mm |
1.2 |
38.9 |
114.3 |
6.4 |
63.5 |
68.3 |
19.1 |
12.7 |
23.8 |
34.9 |
46.8 |
88.9 |
104.8 |
7.9 |
12.7 |
26.2 |
|
NSTU-SC-010、NSTU-SC-014现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
