F3B-SL-103、F3B-SL-107

Series	Shaft Size	Part No.		Description
204	3/4 20mm	128083 @		F3B-SL-012 F3B-SL-20M
205	7/8	128178		F3B-SL-014
	15/16	128179		F3B-SL-015
	1	128084		F3B-SL-100
	25mm	@		F3B-SL-25M
206	1-1/8	128180		F3B-SL-102
	1-3/16	128085		F3B-SL-103
	1-1/4	128082		F3B-SL-104S
	30mm	@		F3B-SL-30M
207	1-1/4	128086		F3B-SL-104
	1-3/8	128181		F3B-SL-106
	1-7/16	128087		F3B-SL-107
	35mm	@		F3B-SL-35M

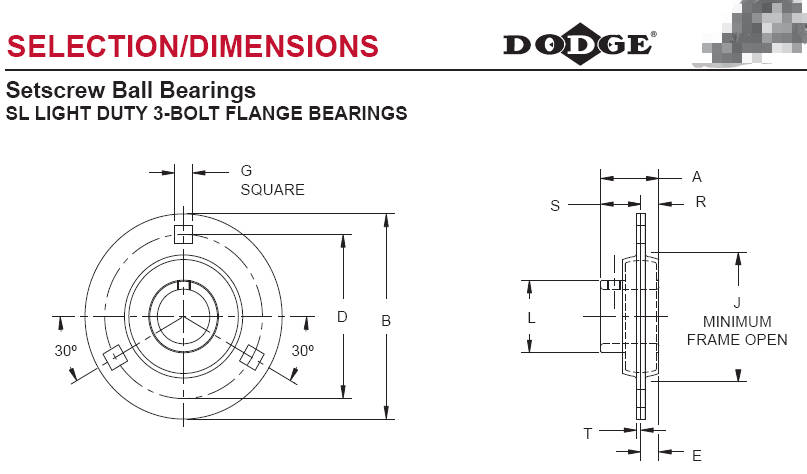

Series	Shaft Size	Weight lbs.kg	A		B	D	E	G*	J	L	R	S	T	Housing Radial Load Rating (lbs.) N
204	3/4 20mm	0.74 0.33	1-1/16 27.0		3-9/16 90.5	2-13/16 71.4	5/16 7.9	11/32 8.7	2-3/16 55.6	1-1/8 90.5	21/64 71.4	47/64 7.9	0.083 2.1	700 3,112
205	7/8	1.01	1-3/32		3-3/4	3	11/32	11/32	2-3/8	1-21/64	21/64	49/64	0.083	800
	15/16	0.97
	1	0.85
	25mm	0.43	27.8		95.3	76.2	8.7	8.7	60.3	33.7	8.3	19.4	2.1	3,557
206	1-1/8	1.39	1-19/64		4-7/16	3-9/16	11/32	13/32	2-13/16	1-37/64	25/64	29/32	0.104	1,100
	1-3/16	1.36
	1-1/4	1.34
	30mm	0.61	32.9		112.7	90.5	8.7	10.3	71.4	40.1	9.9	23.0	2.6	4,891
207	1-1/4	1.89	1-7/16		4-15/16	3-15/16	7/16	13/32	3-3/16	1-27/32	13/32	1-1/32	0.104	1,400
	1-3/8	1.86
	1-7/16	1.73
	35mm	0.83	36.5		125.4	100.1	11.1	10.3	81.0	46.8	10.3	26.2	2.6	6,225
