| P2B-SCAH-010、P2B-SCBAH-20M |
|
上海川代轴承机械有限公司 新闻动态 2025-7-31
|
 |
|
Series |
Shaft Size |
Part No. |
Description |
|
203 |
1/2 |
123725 |
P2B-SCAH-008 |
|
5/8 |
123958 |
P2B-SCAH-010 |
|
17mm |
@ |
P2B-SCAH-17M |
|
204 |
1/2 |
@ |
P2B-SCBAH-008L |
|
5/8 |
068307 |
P2B-SCBAH-010L |
|
3/4 |
123959 |
P2B-SCBAH-012 |
|
20mm |
@ |
P2B-SCBAH-20M |
|
205 |
7/8 |
@ |
P2B-SCBAH-014 |
|
15/16 |
@ |
P2B-SCBAH-015 |
|
1 |
123960 |
P2B-SCBAH-100 |
|
25mm |
@ |
P2B-SCBAH-25M |
|
206 |
1-1/16 |
@ |
P2B-SCBAH-101 |
|
1-1/8 |
@ |
P2B-SCBAH-102 |
|
1-3/16 |
123961 |
P2B-SCBAH-103 |
|
1-1/4 |
123962 |
P2B-SCBAH-104S |
|
30mm |
@ |
P2B-SCBAH-30M |
|
207 |
1-1/4 |
123963 |
P2B-SCBAH-104 |
|
1-5/16 |
@ |
P2B-SCBAH-105 |
|
1-3/8 |
@ |
P2B-SCBAH-106 |
|
1-7/16 |
123918 |
P2B-SCBAH-107 |
|
35mm |
@ |
P2B-SCBAH-35M |
|

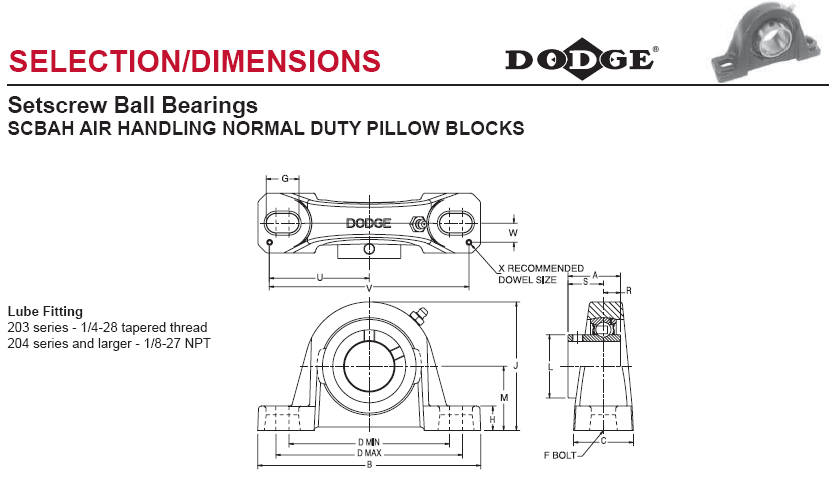

Series |
Shaft
Size |
Weight
lbs
kgs |
A |
B |
C |
D |
F
Bolt Dia. |
G |
H |
J |
L |
M |
R |
S |
U |
V |
W |
X |
|
min. |
max |
|
203 |
1/2 |
1.1 |
1 |
5 |
1-31/64 |
3-1/4 |
4-1/16 |
3/8 |
27/32 |
2-9/64 |
2-9/64 |
31/32 |
1-1/16 |
23/64 |
41/64 |
2-1/4 |
4-1/2 |
3/8 |
1/8 |
|
5/8 |
1.0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
17mm |
0.4 |
25.4 |
127.0 |
30.6 |
82.6 |
103.2 |
M10 |
21.4 |
11.4 |
54.4 |
24.6 |
27.0 |
9.1 |
16.3 |
57.2 |
114.3 |
9.5 |
3.2 |
|
204 |
1/2 |
1.6 |
1-5/32 |
5-1/4 |
1-21/64 |
3-3/8 |
4-3/16 |
3/8 |
27/32 |
29/64 |
2-1/2 |
1-1/8 |
1-1/4 |
27/64 |
47/64 |
2-1/4 |
4-1/2 |
1/2 |
1/8 |
|
5/8
3/4 |
1.5
1.4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
20mm |
0.7 |
29.4 |
133.4 |
33.7 |
85.7 |
106.4 |
M10 |
21.4 |
11.5 |
63.5 |
28.6 |
31.8 |
10.7 |
18.7 |
57.2 |
114.3 |
12.7 |
3.2 |
|
205 |
7/8 |
1.8 |
1-3/16 |
5-1/2 |
1-13/32 |
3-11/16 |
4-1/2 |
3/8 |
27/32 |
29/64 |
2-21/32 |
1-5/16 |
1-5/16 |
27/64 |
49/64 |
2-1/2 |
5 |
1/2 |
3/16 |
|
15/16
1 |
1.7
1.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
25mm |
0.7 |
30.2 |
139.7 |
35.7 |
93.7 |
114.3 |
M10 |
21.4 |
11.5 |
67.5 |
33.3 |
33.3 |
10.7 |
19.4 |
63.5 |
127.0 |
12.7 |
4.8 |
|
206 |
1-1/16 |
2.8 |
1-25/64 |
6-1/4 |
1-47/64 |
4-1/4 |
5 |
1/2 |
15/16 |
5/8 |
3-3/16 |
1-37/64 |
1-9/16 |
31/64 |
29/32 |
2-7/8 |
5-3/4 |
9/16 |
3/16 |
|
1-1/8 |
2.7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1-3/16 |
2.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1-1/4 |
2.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
30mm |
1.1 |
35.3 |
158.8 |
44.1 |
108.0 |
127.0 |
M12 |
23.8 |
15.9 |
81.0 |
40.1 |
39.7 |
12.3 |
23.0 |
73.0 |
146.1 |
14.3 |
4.8 |
|
207 |
1-1/4 |
4.5 |
1-17/32 |
6-1/2 |
1-47/64 |
4-11/16 |
5-7/16 |
1/2 |
15/16 |
41/64 |
3-11/16 |
1-27/32 |
1-13/16 |
1/2 |
1-1/32 |
2-29/32 |
5-13/16 |
9/16 |
3/16 |
|
1-5/16 |
4.4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1-3/8 |
4.3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1-7/16 |
4.2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
35mm |
1.5 |
38.9 |
165.1 |
44.1 |
119.1 |
138.1 |
M12 |
23.8 |
16.3 |
93.7 |
46.8 |
46.0 |
12.7 |
26.2 |
73.8 |
147.6 |
14.3 |
4.8 | |
P2B-SCAH-010、P2B-SCBAH-20M现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
