P2B-SCUAH-008、P2B-SCAH-008

Series

Shaft Size

Part No.

Description

203

1/2

123725

P2B-SCAH-008

5/8

123958

P2B-SCAH-010

17mm

@

P2B-SCAH-17M

203 (SCU)

1/2 5/8 17mm

@ 067742 @

P2B-SCUAH-008 P2B-SCUAH-010 P2B-SCUAH-17M

204

1/2

@

P2B-SCAH-008L

5/8

123790

P2B-SCAH-010L

3/4

123904

P2B-SCAH-012

20mm

056606

P2B-SCAH-20M

205

7/8

064450

P2B-SCAH-014

15/16

123903

P2B-SCAH-015

1

123905

P2B-SCAH-100

25mm

053718

P2B-SCAH-25M

206

1-1/16

@

P2B-SCAH-101

1-1/8

123919

P2B-SCAH-102

1-3/16

123906

P2B-SCAH-103

1-1/4

@

P2B-SCAH-104S

30mm

067652

P2B-SCAH-30M

206 (SCU)

1-1/16

@

P2B-SCUAH-101

1-1/8

@

P2B-SCUAH-102

1-3/16

123916

P2B-SCUAH-103

1-1/4

123183

P2B-SCUAH-104S

30mm

@

P2B-SCUAH-30M

207

1-1/4

123907

P2B-SCAH-104

1-5/16

@

P2B-SCAH-105

1-3/8

050792

P2B-SCAH-106

1-7/16

123908

P2B-SCAH-107

35mm

053717

P2B-SCAH-35M

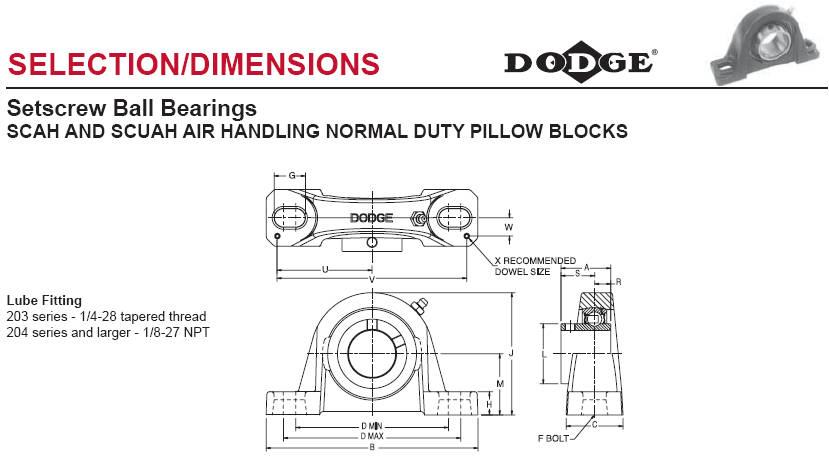

Series

Shaft Size

Weight lbs. kgs.

A

B

C

D

F Bolt Dia.

G

H

J

L

M

R

S

U

V

W

X

min.

max.

203

1/2 5/8 17mm

1.1 1.0 0.4

1 25.4

5 127.0

1-13/64 30.6

3-1/4 82.6

4-1/16 103.2

3/8 M10

27/32 21.4

15/32 11.9

2-9/64 54.4

31/32 24.6

1-1/16 27.0

23/64 9.1

41/64 16.3

2-1/4 57.2

4-1/2 114.3

3/8 9.5

1/8 3.2

203 (SCU)

1/2 5/8 17mm

1.2 1.0 0.4

1 25.4

5 127.0

1-13/64 30.6

3-1/4 82.6

4-1/16 103.2

3/8 M10

27/32 21.4

19/32 15.1

2-17/64 57.5

31/32 24.6

1-3/16 30.2

23/64 9.1

41/64 16.3

2-1/4 57.2

4-1/2 114.3

3/8 9.5

1/8 3.2

204

1/2 5/8 3/4 20mm

1.6 1.5 1.4 0.7

1-5/32 29.4

5-1/4 133.4

1-21/64 33.7

3-3/8 85.7

4-3/16 106.4

3/8 M10

27/32 21.4

33/64 13.1

2-9/16 65.1

1-1/8 28.6

1-5/16 33.3

27/64 10.7

47/64 18.7

2-1/4 57.2

4-1/2 114.3

1/2 12.7

1/8 3.2

205

7/8 15/16 1 25mm

1.8 1.7 1.6 0.7

1-3/16 30.2

5-1/2 139.7

1-13/32 35.7

3-11/16 93.7

4-1/2 114.3

3/8 M10

27/32 21.4

37/64 14.7

2-25/32 70.6

1-5/16 33.3

1-7/16 36.5

27/64 10.7

49/64 19.4

2-1/2 63.5

5 127.0

1/2 12.7

3/16 4.8

206

1-1/16 1-1/8 1-3/16 1-1/4 30mm

2.8 2.7 2.6 2.5 1.1

1-25/64 35.3

6-1/4 158.8

1-47/64 44.1

4-1/4 108.0

5 127.0

1/2 M12

15/16 23.8

11/16 17.5

3-1/4 82.6

1-37/64 40.1

1-5/8 41.3

31/64 12.3

29/32 23.0

2-7/8 73.0

5-3/4 146.1

9/16 14.3

3/16 4.8

206 (SCU)

1-1/16 1-1/8 1-3/16 1-1/4 30mm

2.9 2.8 2.7 2.6 1.1

1-25/64 35.3

6-1/4 158.8

1-47/64 44.1

4-1/4 108.0

5.00 127.0

1/2 M12

15/16 23.8

3/4 19.1

3-5/16 84.1

1-37/64 40.1

1-11/16 42.9

31/64 12.3

29/32 23.0

2-7/8 73.0

5-3/4 146.1

9/16 14.3

3/16 4.8

207

1-1/4 1-5/16 1-3/8 1-7/16 35mm

4.5 4.4 4.3 4.2 1.5

1-17/32 38.9

6-1/2 165.1

1-47/64 44.1

4-11/16 119.1

5-7/16 138.1

1/2 M12

15/16 23.8

45/64 17.9

3-3/4 95.3

1-27/32 46.8

1-7/8 47.6

1/2 12.7

1-1/32 26.2

2-29/32 73.8

5-13/16 147.6

9/16 14.3

3/16 4.8
