| P2B-SC-40M、P2B-SC-112 |
|
上海川代轴承机械有限公司 新闻动态 2025-5-1
|
 |
|
Series |
Shaft Size |
Standard |
No-Lube/Sealed for Life (-NL) Part |
With Flingers |
|
Part No. |
Description |
Part No. |
Description |
Part No. |
Description |
|
208 |
1-1/2 |
123814 |
P2B-SC-108 |
123829 |
P2B-SC-108-NL |
125172 |
P2B-SC-108-FF |
|
1-5/8 |
123815 |
P2B-SC-110 |
126510 |
P2B-SC-110-NL |
051996 |
P2B-SC-110-FF |
|
40mm |
056855 |
P2B-SC-40M |
067679 |
P2B-SC-40M-NL |
053199 |
P2B-SC-40M-FF |
|
209 |
1-5/8 |
125169 |
P2B-SC-110L |
@ |
P2B-SC-110L-NL |
@ |
P2B-SC-110L-FF |
|
1-11/16 |
123816 |
P2B-SC-111 |
123784 |
P2B-SC-111-NL |
064657 |
P2B-SC-111-FF |
|
1-3/4 |
123817 |
P2B-SC-112 |
123782 |
P2B-SC-112-NL |
051896 |
P2B-SC-112-FF |
|
45mm |
125857 |
P2B-SC-45M |
067925 |
P2B-SC-45M-NL |
052259 |
P2B-SC-45M-FF |
|
210 |
1-15/16 |
123818 |
P2B-SC-115 |
123793 |
P2B-SC-115-NL |
@ |
P2B-SC-115-FF |
|
2 |
123819 |
P2B-SC-200 |
123939 |
P2B-SC-200-NL |
@ |
P2B-SC-200-FF |
|
50mm |
125858 |
P2B-SC-50M |
@ |
P2B-SC-50M-NL |
@ |
P2B-SC-50M-FF |
|
211 |
2 |
126815 |
P2B-SCM-200 |
126547 |
P2B-SCM-200-NL |
054561 |
P2B-SCM-200-FF |
|
2-3/16 |
123820 |
P2B-SC-203 |
123783 |
P2B-SC-203-NL |
056759 |
P2B-SC-203-FF |
|
2-1/4 |
123821 |
P2B-SC-204 |
126513 |
P2B-SC-204-NL |
057335 |
P2B-SC-204-FF |
|
55mm |
125859 |
P2B-SC-55M |
@ |
P2B-SC-55M-NL |
@ |
P2B-SC-55M-FF |
|
212 |
2-1/4 |
126817 |
P2B-SCM-204 |
@ |
P2B-SCM-204-NL |
@ |
P2B-SCM-204-FF |
|
2-7/16 |
123822 |
P2B-SC-207 |
123987 |
P2B-SC-207-NL |
054265 |
P2B-SC-207-FF |
|
60mm |
125860 |
P2B-SC-60M |
062162 |
P2B-SC-60M-NL |
@ |
P2B-SC-60M-FF |
|
214 |
2-1/2 |
126819 |
P2B-SCM-208 |
@ |
P2B-SCM-208-NL |
@ |
P2B-SCM-208-FF |
|
2-11/16 |
123839 |
P2B-SC-211 |
068603 |
P2B-SC-211-NL |
@ |
P2B-SC-211-FF |
|
70mm |
125861 |
P2B-SC-70M |
126548 |
P2B-SC-70M-NL |
059677 |
P2B-SC-70M-FF |
|
215 |
2-15/16
75mm |
123823
125862 |
P2B-SC-215
P2B-SC-75M |
123636
@ |
P2B-SC-215-NL
P2B-SC-75M-NL |
049828
@ |
P2B-SC-215-FF
P2B-SC-75M-FF |
|
215 |
2-15/16 |
123728 |
P2B-SCU-215 |
@ |
P2B-SCU-215-NL |
054264 |
P2B-SCU-215-FF |
|
(SCU) |
75mm |
052792 |
P2B-SCU-75M |
@ |
P2B-SCU-75M-NL |
@ |
P2B-SCU-75M-FF |
|
218 |
90mm |
052794 |
P2B-SC-90M |
@ |
P2B-SC-90M-NL |
@ |
P2B-SC-90M-FF |
|

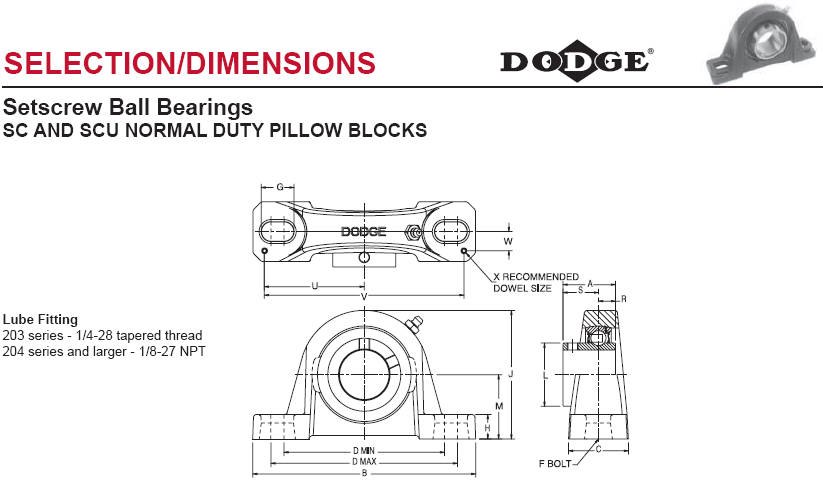

Series |
Shaft Size |
Weight
lbs.kgs. |
A |
B |
C |
D |
F
Bolt Dia. |
G |
H |
J |
L |
M |
R |
S |
U |
V |
W |
X |
|
Min. |
Max. |
|
208 |
1-1/2 |
5.4 |
1-11/16 |
7-1/4 |
1-15/16 |
5-3/16 |
5-7/8 |
1/2 |
29/32 |
15/16 |
4-3/16 |
2-3/64 |
2-1/8 |
19/32 |
1-3/32 |
3-17/64 |
6-17/32 |
11/16 |
3/16 |
|
1-5/8 |
5.3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
40mm |
2.2 |
42.9 |
184.2 |
49.2 |
131.8 |
149.2 |
M12 |
23.0 |
23.8 |
106.4 |
52.0 |
54.0 |
15.1 |
27.8 |
82.9 |
165.9 |
17.5 |
4.8 |
|
209 |
1-5/8 |
6.6 |
1-23/32 |
7-7/16 |
2 |
5-1/2 |
6-3/16 |
1/2 |
29/32 |
3/4 |
4-9/32 |
2-7/32 |
2-1/8 |
19/32 |
1-1/8 |
3-3/8 |
6-3/4 |
11/16 |
3/16 |
|
1-11/16
1-3/4 |
6.4
6.2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
45mm |
2.2 |
43.7 |
188.9 |
50.8 |
139.7 |
161.9 |
M12 |
23.0 |
19.1 |
108.7 |
56.4 |
54.0 |
15.1 |
28.6 |
85.7 |
171.5 |
17.5 |
4.8 |
|
210 |
1-15/16 |
7.2 |
1-3/4 |
8-1/8 |
2-1/4 |
6 |
6-11/16 |
5/8 |
1-1/16 |
3/4 |
4-17/32 |
2-7/16 |
2-1/4 |
19/32 |
1-5/32 |
3-11/16 |
7-3/8 |
13/16 |
3/16 |
|
2 |
7.0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
50mm |
2.6 |
44.5 |
206.4 |
57.2 |
152.4 |
169.9 |
M16 |
27.0 |
19.1 |
115.1 |
61.9 |
57.2 |
15.1 |
29.4 |
93.7 |
187.3 |
20.6 |
4.8 |
|
211 |
2 |
9.0 |
1-27/32 |
8-7/8 |
2-5/16 |
6-3/8 |
7-7/16 |
5/8 |
1-7/32 |
7/8 |
4-31/32 |
2-23/32 |
2-1/2 |
5/8 |
1-7/32 |
3-15/16 |
7-7/8 |
13/16 |
3/16 |
|
2-3/16
2-1/4 |
8.9
8.8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
55mm |
3.3 |
46.8 |
225.4 |
58.7 |
161.9 |
188.9 |
M16 |
31.0 |
22.2 |
126.2 |
69.1 |
63.5 |
15.9 |
31.0 |
100.0 |
200.0 |
20.6 |
4.8 |
|
212 |
2-1/4 |
10.8 |
1-63/64 |
9-1/2 |
2-3/8 |
6-7/8 |
7-15/16 |
5/8 |
1-7/32 |
7/8 |
5-13/32 |
2-31/32 |
2-3/4 |
43/64 |
1-5/16 |
4-1/4 |
8-1/2 |
7/8 |
3/16 |
|
2-7/16 |
10.2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
60mm |
4.2 |
50.4 |
241.3 |
60.3 |
174.6 |
201.6 |
M16 |
31.0 |
22.2 |
137.3 |
75.4 |
69.9 |
17.1 |
33.3 |
108.0 |
215.9 |
22.2 |
4.8 |
|
214 |
2-1/2 |
15.5 |
2-15/64 |
10-3/4 |
2-11/16 |
7-1/2 |
8-1/2 |
3/4 |
1-5/16 |
15/16 |
6-3/32 |
3-5/16 |
3 |
51/64 |
1-7/16 |
4-7/8 |
9-3/4 |
15/16 |
3/16 |
|
2-11/16 |
15.0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
70mm |
6.9 |
56.8 |
273.1 |
68.3 |
190.5 |
215.9 |
M18 |
33.3 |
23.8 |
154.8 |
84.1 |
76.2 |
20.2 |
36.5 |
123.8 |
247.7 |
23.8 |
4.8 |
|
215 |
2-15/16
75mm |
20.5
7.9 |
2-9/32
57.9 |
11-3/4
298.5 |
2-7/8
73.0 |
8-1/2
215.9 |
9-1/2
241.3 |
7/8
M22 |
1-7/16
36.5 |
1
25.4 |
6-3/4
171.5 |
3-5/8
92.1 |
3-1/2
88.9 |
13/16
20.6 |
1-15/32
37.3 |
5-31/64
139.3 |
10-31/32
278.6 |
1-3/64
26.6 |
3/16
4.8 |
|
215 |
2-15/16 |
20.7 |
2-9/32 |
11-3/4 |
2-7/8 |
8-1/2 |
9-1/2 |
7/8 |
1-7/16 |
1 |
6-1/2 |
3-5/8 |
3-1/4 |
13/16 |
1-15/32 |
5-31/64 |
10-31/32 |
1-3/64 |
3/16 |
|
(SCU) |
75mm |
8.0 |
57.9 |
298.5 |
73.0 |
215.9 |
241.3 |
M22 |
36.5 |
25.4 |
165.1 |
92.1 |
82.6 |
20.6 |
37.3 |
139.3 |
278.6 |
26.6 |
4.8 |
|
218 |
90mm |
13.6 |
63.1 |
355.6 |
85.7 |
261.9 |
295.3 |
M22 |
40.5 |
33.3 |
203.2 |
110.7 |
101.6 |
23.4 |
39.7 |
116.7 |
333.4 |
30.2 |
4.8 | |
