Series	Shaft Size	Complete Unit			Unit without Adapter Sleeve & Lock Nut							Adapter Sleeve & Lock  Nut Assembly
		Part No.	Description		Part No.				Description			Part No.	Description
211	1-15/16	129814	INS-GTM-115		129524				INS-GT-11			129931	AN-GTM-11-115
	2	129815	INS-GTM-200									129932	AN-GTM-11-200
	50mm	129894	INS-GTM-50M									129961	AN-GTM-11-50M
212	2-3/16	129816	INS-GTM-203		129525				INS-GT-12			129933	AN-GTM-12-203
	2-1/4	129817	INS-GTM-204									129934	AN-GTM-12-204
	55mm	129895	INS-GTM-55M									129962	AN-GTM-12-55M
214	2-7/16	129818	INS-GTM-207		129526				INS-GT-14			129935	AN-GTM-14-207
	2-1/2	129819	INS-GTM-208									129936	AN-GTM-14-208
	65mm	129896	INS-GTM-65M									129963	AN-GTM-14-65M
215	2-11/16 70mm	129820 129897	INS-GTM-211 INS-GTM-70M		129527				INS-GT-15			129937 129964	AN-GTM-15-211 AN-GTM-15-70M
216	2-15/16	129821	INS-GTM-215		129528				INS-GT-16			129938	AN-GTM-16-215
	3	129822	INS-GTM-300									129939	AN-GTM-16-300
	75mm	129898	INS-GTM-75M									129965	AN-GTM-16-75M
218	3-7/16	129823	INS-GTM-307		129529				INS-GT-18			129940	AN-GTM-18-307
	3-1/2	129824	INS-GTM-308									129941	AN-GTM-18-308
	85mm	129899	INS-GTM-85M									129966	AN-GTM-18-85M

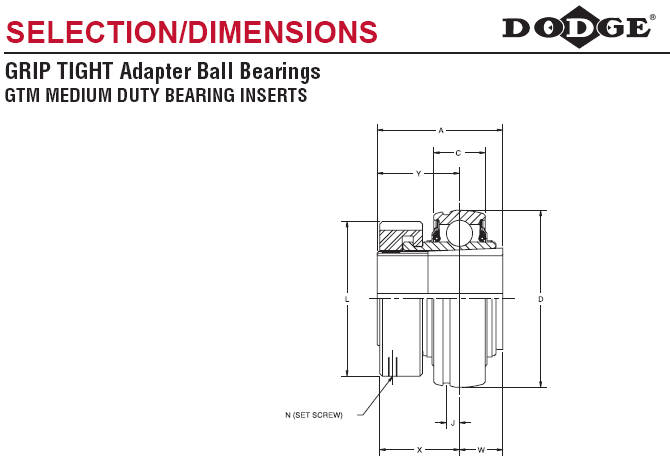

Series	Shaft Size	Weight lbskg	A	C		D	J	L		N SetScrew (UNF)	W#	X	Y#K
211	1-15/16	3.4	1-59/64	0.9449		3.9370	0.267	3-1/4		#10-32 x 1/4	45/64	1-3/16	1-7/32
	2	3.3
	50mm	1.5	48.8	24.0		100.0	6.8	82.6			17.9	30.2	31.0
212	2-3/16	4.9	2-7/64	1.0240		4.3307	0.250	3-1/2		#10-32 x 1/4	49/64	1-5/16	1-11/32
	2-1/4	4.8
	55mm	2.2	53.6	26.0		110.0	6.4	88.9			19.4	33.3	34.1
214	2-7/16	5.5	2-25/64	1.1020		4.9213	0.265	3-13/16		#10-32 x 1/4	7/8	1-15/32	1-33/64
	2-1/2	5.4
	65mm	2.5	60.7	28.0		125.0	6.7	96.8			22.2	37.3	38.5
215	2-11/16 70mm	5.9 2.7	2-9/16 65.1	1.1420 29.0		5.1181 130.0	0.265 6.7	4-1/4 108.0		#10-32 x 1/4	57/64 22.6	1-5/8 41.3	1-43/64 42.5
216	2-15/16	6.9	2-49/64	1.1810		5.5118	0.285	4-1/2		#10-32 x 1/4	29/32	1-51/64	1-55/64
	3	6.8
	75mm	3.2	70.2	30.0		140.0	7.2	114.3			23.0	45.6	47.2
218	3-7/16	8.8	2-51/64	1.3400		6.2992	0.300	5		#10-32 x 1/4	1	1-3/4	1-51/64
	3-1/2	8.7
	85mm	4.0	71.0	34.0		160.0	7.6	127.0			25.3	44.5	45.6
