| NSTU-GT-102、NSTU-GT-30M |
|
上海川代轴承机械有限公司 新闻动态 2025-9-16
|
 |
|
Series |
Shaft Size |
Complete Unit
Part No. Description |
Unit without Adapter
Sleeve & Lock Nut Part
No. Description |
Adapter Sleeve & Lock
Nut Assembly Part No. Description |
|
204 |
3/4
20mm |
136110
136238 |
NSTU-GT-012
NSTU-GT-20M |
136210 |
NSTU-GT-04 |
129904
129943 |
AN-GT-04-012
AN-GT-04-20M |
|
205 |
7/8 |
136111 |
NSTU-GT-014 |
136211 |
NSTU-GT-05 |
129905 |
AN-GT-05-014 |
|
15/16 |
136112 |
NSTU-GT-015 |
129906 |
AN-GT-05-015 |
|
1 |
136113 |
NSTU-GT-100 |
129907 |
AN-GT-05-100 |
|
25mm |
136239 |
NSTU-GT-25M |
129944 |
AN-GT-05-25M |
|
206 |
1-1/8 |
136114 |
NSTU-GT-102 |
136212 |
NSTU-GT-06 |
129908 |
AN-GT-06-102 |
|
1-3/16 |
136115 |
NSTU-GT-103 |
129909 |
AN-GT-06-103 |
|
1-1/4 |
136116 |
NSTU-GT-104S |
129910 |
AN-GT-06-104S |
|
30mm |
136240 |
NSTU-GT-30M |
129945 |
AN-GT-06-30M |
|
207 |
1-1/4 |
136117 |
NSTU-GT-104 |
136213 |
NSTU-GT-07 |
129911 |
AN-GT-07-104 |
|
1-3/8 |
136118 |
NSTU-GT-106 |
129912 |
AN-GT-07-106 |
|
1-7/16 |
136119 |
NSTU-GT-107 |
129913 |
AN-GT-07-107 |
|
35mm |
136241 |
NSTU-GT-35M |
129946 |
AN-GT-07-35M |
|
208 |
1-1/2 |
136120 |
NSTU-GT-108 |
136214 |
NSTU-GT-08 |
129914 |
AN-GT-08-108 |
|
1-5/8 |
126121 |
NSTU-GT-110 |
129955 |
AN-GT-08-110 |
|
40mm |
136242 |
NSTU-GT-40M |
129947 |
AN-GT-08-40M |
|

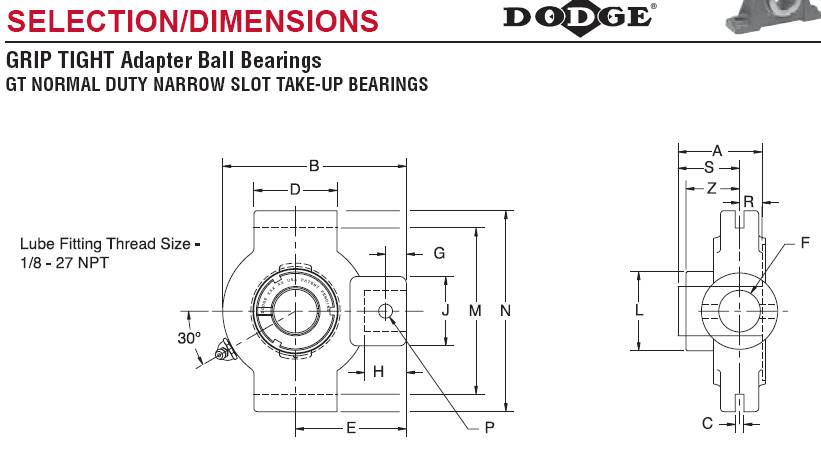

SeriesShaft
Size |
Weight
Take-
Size |
A |
B |
C* |
D |
E |
F
Dia. |
G |
H |
J |
L |
M@ |
N |
P
Dia. |
R# |
S# |
Z |
|
204 |
3/4
20mm |
1.6
0.8 |
|
1-15/32
37.3 |
3-1/2
88.9 |
1/4
6.4 |
1-1/2
38.1 |
2-3/16
55.6 |
3/4
19.1 |
7/16
11.1 |
7/8
22.2 |
1-3/8
34.9 |
1-1/2
38.1 |
2-5/8
66.7 |
3-1/8
79.4 |
5/16
7.9 |
31/64
12.3 |
63/64
25.0 |
1-3/64
26.6 |
|
205 |
7/8 |
1.7 |
NS210 |
1-29/64 |
3-9/16 |
1/4 |
1-1/2 |
2-3/16 |
3/4 |
7/16 |
7/8 |
1-3/8 |
1-51/64 |
2-5/8 |
3-1/8 |
5/16 |
1/2 |
61/64 |
1-1/64 |
|
15/16 |
1.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
1.5 |
|
25mm |
0.7 |
36.9 |
90.5 |
6.4 |
38.1 |
55.6 |
19.1 |
11.1 |
22.2 |
34.9 |
45.6 |
66.7 |
79.4 |
7.9 |
12.8 |
24.2 |
25.8 |
|
206 |
1-1/8 |
2.8 |
NS308 |
1-39/64 |
4-5/16 |
1/4 |
2-1/2 |
2-11/16 |
3/4 |
1/2 |
15/16 |
1-3/8 |
2-5/64 |
3-1/2 |
4-1/8 |
5/16 |
17/32 |
1-5/64 |
1-1/8 |
|
1-3/16 |
2.7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1-1/4 |
2.6 |
|
30mm |
1.2 |
40.9 |
109.5 |
6.4 |
63.5 |
68.3 |
19.1 |
12.7 |
23.8 |
34.9 |
52.8 |
88.9 |
104.8 |
7.9 |
13.5 |
27.4 |
28.6 |
|
207 |
1-1/4 |
2.8 |
NS308 |
1-5/8 |
4-1/2 |
1/4 |
2-1/2 |
2-11/16 |
3/4 |
1/2 |
15/16 |
1-3/8 |
2-3/8 |
3-1/2 |
4-1/8 |
5/16 |
9/16 |
1-1/16 |
1-9/64 |
|
1-3/8 |
2.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1-7/16 |
2.5 |
|
35mm |
1.2 |
41.3 |
114.3 |
6.4 |
63.5 |
68.3 |
19.1 |
12.7 |
23.8 |
34.9 |
60.3 |
88.9 |
104.8 |
7.9 |
14.3 |
27.0 |
29.0 |
|
208 |
1-1/2 |
4.7 |
NS400 |
1-27/32 |
5-3/8 |
5/16 |
3 |
3-1/4 |
7/8 |
21/32 |
1-5/32 |
2-5/8 |
2-5/8 |
4 |
4-3/4 |
3/8 |
21/32 |
1-3/16 |
1-15/64 |
|
1-5/8 |
4.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
40mm |
2.1 |
46.8 |
136.5 |
7.9 |
76.2 |
82.6 |
22.2 |
16.7 |
29.4 |
66.7 |
66.7 |
101.6 |
120.7 |
9.5 |
16.7 |
30.2 |
31.4 | | |
