F4B-GT-17M、F4B-GT-014

Series	Shaft Size	Complete Unit Part No.               Description				Unit without Adapter Sleeve & Lock Nut Part No.                  Description				Adapter Sleeve & Lock Nut Assembly Part No.                  Description
203	1/2	129637		F4B-GT-008		129464		F4B-GT-03		129902		AN-GT-03-008
	5/8	129638		F4B-GT-010						129903		AN-GT-03-010
	17mm	129667		F4B-GT-17M						129942		AN-GT-03-17M
204	3/4 20mm	129639 129668		F4B-GT-012 F4B-GT-20M		129465		F4B-GT-04		129904 129943		AN-GT-04-012 AN-GT-04-20M
205	7/8	129640		F4B-GT-014		129466		F4B-GT-05		129905		AN-GT-05-014
	15/16	129641		F4B-GT-015						129906		AN-GT-05-015
	1	129642		F4B-GT-100						129907		AN-GT-05-100
	25mm	129669		F4B-GT-25M						129944		AN-GT-05-25M
206	1-1/8	129643		F4B-GT-102		129467		F4B-GT-06		129908		AN-GT-06-102
	1-3/16	129644		F4B-GT-103						129909		AN-GT-06-103
	1-1/4	129645		F4B-GT-104S						129910		AN-GT-06-104S
	30mm	129670		F4B-GT-30M						129945		AN-GT-06-30M
207	1-1/4	129646		F4B-GT-104		129468		F4B-GT-07		129911		AN-GT-07-104
	1-3/8	129647		F4B-GT-106						129912		AN-GT-07-106
	1-7/16	129648		F4B-GT-107						129913		AN-GT-07-107
	35mm	129671		F4B-GT-35M						129946		AN-GT-07-35M

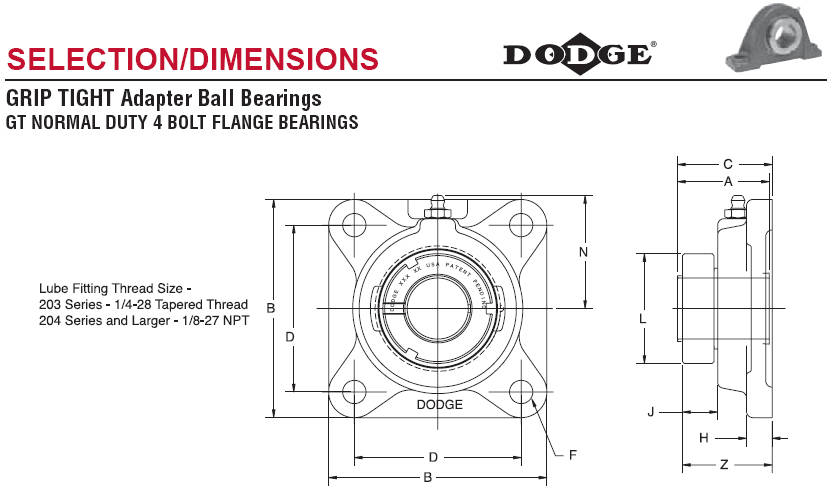

	Shaft Size	Weight				F
Series		lbs	A		B	C#	D	Bolt	H	J	L	N	Z
		kg				Dia.
203	1/2	1.4	1-19/64		3	1-27/64	2-1/8	3/8	7/16	39/64	1-13/32	1-11/16	1-29/64
	5/8	1.3
	17mm	0.6	32.9		76.2	36.1	54.0	M10	11.1	15.5	35.7	42.9	36.9
204	3/4 20mm	1.7 0.8	1-15/32 37.3		3-3/8 85.7	1-39/64 40.9	2-1/2 63.5	3/8 M10	7/16 11.1	11/16 17.5	1-1/2 38.1	1-15/16 49.2	1-43/64 42.5
205	7/8	2.2	1-29/64		3-3/4	1-35/64	2-3/4	7/16	1/2	21/32	1-51/64	2-1/16	1-39/64
	15/16 1	2.2 2.2
	25mm	1.0	36.9		95.3	39.3	69.9	M10	12.7	16.7	45.6	52.4	40.9
206	1-1/8	3.8	1-39/64		4-1/4	1-45/64	3-1/4	7/16	1/2	11/16	2-5/64	2-3/16	1-3/4
	1-3/16 1-1/4	3.7 3.7
	30mm	1.7	40.9		108.0	43.3	82.6	M10	12.7	17.5	52.8	55.6	44.5
207	1-1/4	4.4	1-5/8		4-3/4	1-49/64	3-5/8	1/2	9/16	41/64	2-3/8	2-7/16	1-55/64
	1-3/8 1-7/16	4.4 4.3
	35mm	2.0	41.3		120.7	44.8	92.1	M12	14.3	16.3	60.3	61.9	47.2
