| F2B-GTM-100、F2B-GTM-25M |
|
上海川代轴承机械有限公司 新闻动态 2026-5-6
|
 |
|
Series |
Shaft Size |
Complete Unit
Part No. Description |
Unit without Adapter
Sleeve & Lock Nut
Part No. Description |
Adapter Sleeve & Lock Nut
Assembly Part No.
Description |
|
205 |
3/4 |
129369 |
F2B-GTM-012 |
129492 |
F2B-GT-05 |
129924 |
AN-GTM-05-012 |
|
206 |
1
25mm |
129330
136268 |
F2B-GTM-100
F2B-GTM-25M |
129493 |
F2B-GT-06 |
129925
129957 |
AN-GTM-06-100
AN-GTM-06-25M |
|
207 |
1-3/16 |
129331 |
F2B-GTM-103 |
129494 |
F2B-GT-07 |
129926 |
AN-GTM-07-103 |
|
1-1/4 |
129310 |
F2B-GT-104 |
129911 |
AN-GT-07-104 |
|
30mm |
136269 |
F2B-GTM-30M |
129954 |
AN-GTM-07-30M |
|
208 |
1-7/16
35mm |
129332
136270 |
F2B-GTM-107
F2B-GTM-35M |
129495 |
F2B-GT-08 |
129927
129958 |
AN-GTM-08-107
AN-GTM-08-35M |
|
209 |
1-1/2 |
129333 |
F2B-GTM-108 |
129496 |
F2B-GT-09 |
129928 |
AN-GTM-09-108 |
|
1-5/8 |
129314 |
F2B-GT-110L |
|
|
|
40mm |
136271 |
F2B-GTM-40M |
129959 |
AN-GTM-09-40M |
|
210 |
1-11/16 |
129334 |
F2B-GTM-111 |
129497 |
F2B-GT-10 |
129929 |
AN-GTM-10-111 |
|
1-3/4 |
129335 |
F2B-GTM-112 |
129930 |
AN-GTM-10-112 |
|
45mm |
136272 |
F2B-GTM-405M |
129960 |
AN-GTM-10-45M |
|
211 |
1-15/16 |
129336 |
F2B-GTM-115 |
129498 |
F2B-GT-11 |
129931 |
AN-GTM-11-115 |
|
2 |
129337 |
F2B-GTM-200 |
129932 |
AN-GTM-11-200 |
|
50mm |
136273 |
F2B-GTM-50M |
129961 |
AN-GTM-11-50M |
|
212 |
2-3/16 |
@ |
F2B-GTM-203 |
129078 |
F2B-GT-12 |
129933 |
AN-GTM-12-203 |
|
2-1/4 |
064472 |
F2B-GTM-204 |
129934 |
AN-GTM-12-204 |
|
55mm |
136274 |
F2B-GTM-55M |
129962 |
AN-GTM-12-55M |
|

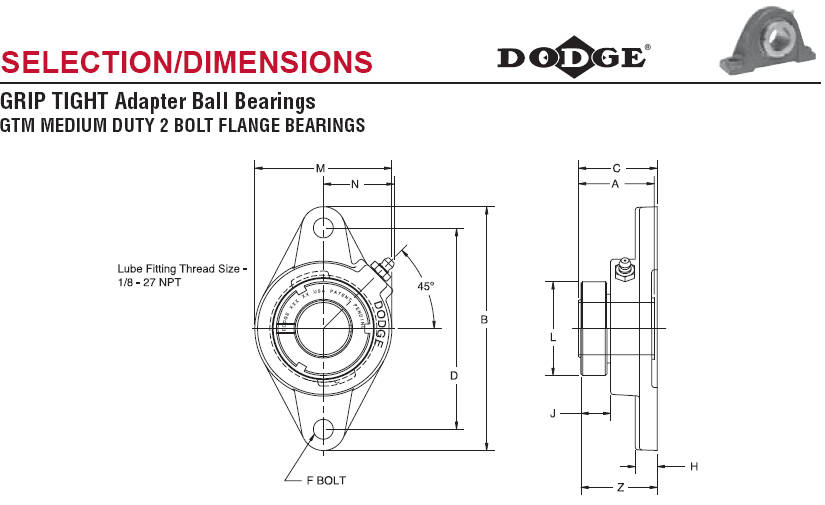

Shaft Size |
Weight |
F |
|
Series |
lbs |
A |
B |
C# |
D |
Bolt |
H |
J |
L |
M |
N |
Z |
|
kg |
Dia. |
|
205 |
3/4 |
2.1 |
1-29/64 |
4-7/8 |
1-35/64 |
3-57/64 |
7/16 |
1/2 |
19/32 |
1-51/64 |
2-3/4 |
1-7/16 |
1-39/64 |
|
206 |
1
25mm |
2.9
1.4 |
1-39/64
40.9 |
5-9/16
141.3 |
1-45/64
43.3 |
4-19/32
116.7 |
7/16
M12 |
1/2
12.7 |
19/32
15.1 |
2-5/64
52.8 |
3-1/8
79.4 |
1-9/16
39.7 |
1-3/4
44.5 |
|
207 |
1-3/16 |
4.4 |
1-5/8 |
6-1/8 |
1-25/32 |
5-1/8 |
1/2 |
9/16 |
35/64 |
2-3/8 |
3-3/4 |
1-27/32 |
1-55/64 |
|
1-1/4 |
4.3 |
|
|
|
|
|
|
|
|
|
|
|
|
30mm |
2.1 |
41.3 |
155.6 |
45.2 |
130.2 |
M12 |
14.3 |
13.9 |
60.3 |
95.3 |
46.8 |
47.2 |
|
208 |
1-7/16
35mm |
5.1
2.5 |
1-27/32
46.8 |
6-3/4
171.5 |
1-31/32
50.0 |
5-21/32
143.7 |
1/2
M12 |
9/16
14.3 |
37/64
14.7 |
2-5/8
66.7 |
4-1/8
104.8 |
1-53/64
46.4 |
2-7/32
56.4 |
|
209 |
1-1/2 |
6.3 |
1-55/64 |
7-1/16 |
2 |
5-27/32 |
1/2 |
5/8 |
9/16 |
2-55/64 |
4-3/8 |
1-29/32 |
2-3/32 |
|
1-5/8 |
6.2 |
|
|
|
|
|
|
|
|
|
|
|
|
40mm |
3.1 |
47.2 |
179.4 |
50.8 |
148.4 |
M12 |
15.9 |
14.3 |
72.6 |
111.1 |
48.4 |
53.2 |
|
210 |
1-11/16 |
7.0 |
1-55/64 |
7-7/16 |
2-3/64 |
6-3/16 |
1/2 |
5/8 |
17/32 |
3-1/8 |
4-9/16 |
2-1/32 |
2-1/8 |
|
1-3/4 |
6.9 |
|
|
|
|
|
|
|
|
|
|
|
|
45mm |
3.4 |
47.2 |
188.9 |
52.0 |
157.2 |
M12 |
15.9 |
13.5 |
79.4 |
115.9 |
51.6 |
54.0 |
|
211 |
1-15/16 |
8.1 |
1-59/64 |
8-5/8 |
2-5/32 |
7-1/4 |
5/8 |
11/16 |
17/32 |
3-27/64 |
5-1/4 |
2-17/64 |
2-9/32 |
|
2 |
8.0 |
|
|
|
|
|
|
|
|
|
|
|
|
50mm |
3.9 |
48.8 |
219.1 |
54.8 |
184.2 |
M16 |
17.5 |
13.5 |
86.9 |
133.4 |
57.5 |
57.9 |
|
212 |
2-3/16 |
9.4 |
2-7/64 |
9-13/16 |
2-5/16 |
7-61/64 |
7/8 |
13/16 |
9/16 |
3-11/16 |
5-1/2 |
2-15/32 |
2-7/16 |
|
2-1/4 |
9.3 |
|
|
|
|
|
|
|
|
|
|
|
|
55mm |
4.6 |
53.6 |
249.2 |
58.7 |
202.0 |
M22 |
20.6 |
14.3 |
93.7 |
139.7 |
62.7 |
61.9 | |
