| P2B-GTMAH-204、P2B-GTMAH-65M |
|
上海川代轴承机械有限公司 新闻动态 2025-9-16
|
 |
|
Series |
Shaft Size |
Complete Unit
Part No.
Description |
Unit Without Adapter & Nut Part No. Description |
Adapter & Nut Assembly Part No.
Description |
|
211 |
1-15/16 |
129238 |
P2B-GTMAH-115 |
129448 |
P2B-GTAH-11 |
129931 |
AN-GTM-11-115 |
|
2 |
@ |
P2B-GTMAH-200 |
129932 |
AN-GTM-11-200 |
|
50mm |
065969 |
P2B-GTMAH-50M |
129961 |
AN-GTM-11-50M |
|
212 |
2-3/16 |
129239 |
P2B-GTMAH-203 |
129449 |
P2B-GTAH-12 |
129933 |
AN-GTM-12-203 |
|
2-1/4 |
@ |
P2B-GTMAH-204 |
129934 |
AN-GTM-12-204 |
|
55mm |
068673 |
P2B-GTMAH-55M |
129962 |
AN-GTM-12-55M |
|
214 |
2-7/16 |
129240 |
P2B-GTMAH-207 |
129450 |
P2B-GTAH-14 |
129935 |
AN-GTM-14-207 |
|
2-1/2 |
068865 |
P2B-GTMAH-208 |
129936 |
AN-GTM-14-208 |
|
65mm |
068682 |
P2B-GTMAH-65M |
129963 |
AN-GTM-14-65M |
|
215 |
2-11/16
70mm |
129241
064684 |
P2B-GTMAH-211
P2B-GTMAH-70M |
129451 |
P2B-GTAH-15 |
129937
129964 |
AN-GTM-15-211
AN-GTM-15-70M |
|
216 |
2-15/16 |
129242 |
P2B-GTMAH-215 |
129455 |
P2B-GTAH-16 |
129938 |
AN-GTM-16-215 |
|
3 |
@ |
P2B-GTMAH-300 |
129939 |
AN-GTM-16-300 |
|
75mm |
068329 |
P2B-GTMAH-75M |
129965 |
AN-GTM-16-75M |
|
218 |
3-7/16 |
129243 |
P2B-GTMAH-307 |
129456 |
P2B-GTAH-18 |
129940 |
AN-GTM-18-307 |
|
3-1/2 |
@ |
P2B-GTMAH-308 |
129941 |
AN-GTM-18-308 |
|
85mm |
068686 |
P2B-GTMAH-85M |
129966 |
AN-GTM-18-85M |
|

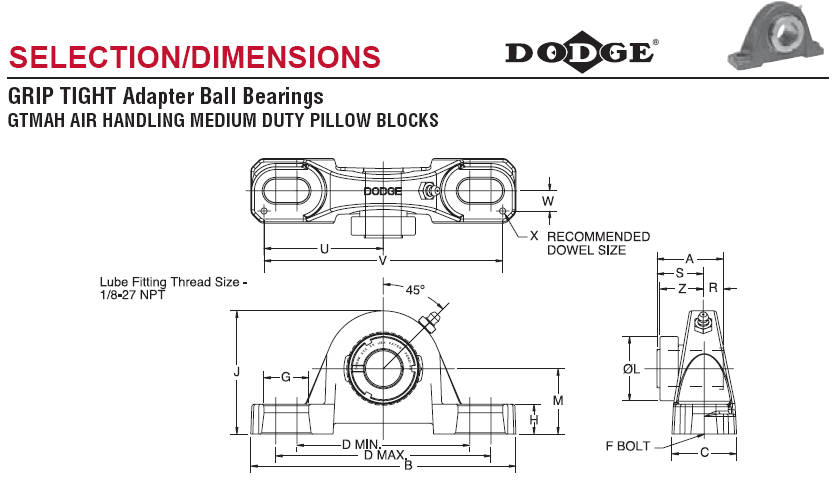

Series |
Shaft Size |
Weight
lbs
kg |
A |
B |
C |
D
min. max. |
F
Bolt Dia. |
G |
H |
J |
L |
M |
R# |
S# |
U |
V |
W |
X |
Z |
|
211 |
1-15/16 |
12.3 |
1-59/64 |
8-7/8 |
2-5/16 |
6-3/8 |
7-7/16 |
5/8 |
1-7/32 |
7/8 |
4-15/16 |
3-27/64 |
2-1/2 |
45/64 |
1-7/32 |
3-15/16 |
7-7/8 |
13/16 |
3/16 |
1-11/32 |
|
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
50mm |
5.6 |
48.8 |
225.4 |
58.7 |
161.9 |
188.9 |
M16 |
31.0 |
22.2 |
125.4 |
86.9 |
63.5 |
17.9 |
31.0 |
100.0 |
200.0 |
20.6 |
4.8 |
34.1 |
|
212 |
2-3/16 |
17.5 |
2-7/64 |
9-1/2 |
2-3/8 |
6-7/8 |
7-15/16 |
5/8 |
1-7/32 |
7/8 |
5-3/8 |
3-11/16 |
2-3/4 |
49/64 |
1-11/32 |
4-1/4 |
8-1/2 |
7/8 |
3/16 |
1-15/32 |
|
2-1/4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
55mm |
7.0 |
53.6 |
241.3 |
60.3 |
174.6 |
201.6 |
M16 |
31.0 |
22.2 |
136.5 |
93.7 |
69.9 |
19.4 |
34.1 |
108.0 |
215.9 |
22.2 |
4.8 |
37.3 |
|
214 |
2-7/16 |
19.4 |
2-25/64 |
10-3/4 |
2-11/16 |
7-1/2 |
8-1/2 |
3/4 |
1-5/16 |
15/16 |
6-5/64 |
4 |
3 |
7/8 |
1-33/64 |
4-7/8 |
9-3/4 |
15/16 |
3/16 |
1-19/32 |
|
2-1/2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
65mm |
8.9 |
60.7 |
273.1 |
68.3 |
190.5 |
215.9 |
M18 |
33.3 |
23.8 |
154.4 |
101.6 |
76.2 |
22.2 |
38.5 |
123.8 |
247.7 |
23.8 |
4.8 |
40.5 |
|
215 |
2-11/16
70mm |
24.9
10.1 |
2-29/64
62.3 |
11-3/4
298.5 |
2-7/8
73.0 |
8-1/2
215.9 |
9-1/2
241.3 |
7/8
M22 |
1-7/16
36.5 |
1
25.4 |
6-23/32
170.7 |
4-7/16
112.7 |
3-1/2
88.9 |
57/64
22.6 |
1-9/16
39.7 |
5-1/2
139.7 |
11
279.4 |
1-1/16
27.0 |
3/16
4.8 |
1-5/8
41.3 |
|
216 |
2-15/16 |
25.4 |
2-11/16 |
11-3/4 |
3 |
8-1/2 |
9-1/2 |
7/8 |
1-7/16 |
1-1/4 |
6-31/32 |
4-11/16 |
3-1/2 |
29/32 |
1-55/64 |
5-1/2 |
11 |
1-3/32 |
3/16 |
1-5/8 |
|
3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
75mm |
10.3 |
68.3 |
298.5 |
76.2 |
215.9 |
241.3 |
M22 |
36.5 |
31.8 |
177.0 |
119.1 |
88.9 |
23.0 |
47.2 |
139.7 |
279.4 |
27.8 |
4.8 |
41.3 |
|
218 |
3-7/16 |
34.9 |
2-51/64 |
14 |
3-3/8 |
10-5/16 |
11-5/8 |
7/8 |
1-19/32 |
1-5/16 |
8 |
5-3/16 |
4 |
1 |
1-51/64 |
6-9/16 |
13-1/8 |
1-3/16 |
3/16 |
1-45/64 |
|
3-1/2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
85mm |
14.1 |
71.0 |
355.6 |
85.7 |
261.9 |
295.3 |
M22 |
40.5 |
33.3 |
203.2 |
131.8 |
101.6 |
25.3 |
45.6 |
166.7 |
333.4 |
30.2 |
4.8 |
43.3 |
|
