| CCFD-1 3/8、CCFD-1 1/2、CCFD-1 3/4 |
|
上海川代轴承机械有限公司 新闻动态 2026-2-4
|
 |
|

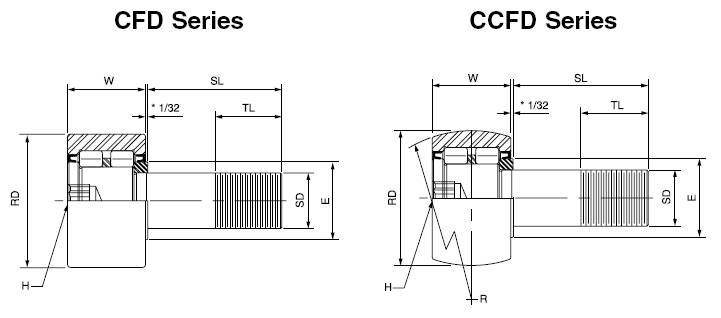

Bearing Number |
Roller Diameter RD
+.000
-.001 |
Roller Width W
+.000
-.005 |
Stud Diameter SD
+.001
-.000 |
Stud Length SL |
Min. Thread Length TL |
Fine Threads Class 2A |
Hex Hole Size H |
Endplate OD
E |
Crown Radius R (CCFD) |
Rec’d Hsg. Bore
+.0002
-.0003 |
Max. Rec’d Torque** In.-Lbs. |
ISO/ABMA Load Rating*** |
Track Roller Load Rating Dynamic Lbs. |
|
Dynamic Lbs. |
Static Lbs. |
|
CFD-1 1/4 |
CCFD-1 1/4 |
1.250 |
.750 |
.500 |
1 1/4 |
5/8 |
1/2-20 |
1/4 |
45/64 |
14 |
.5003 |
350 |
4000 |
4260 |
3300 |
|
CFD-1 3/8 |
CCFD-1 3/8 |
1.375 |
.750 |
.500 |
1 1/4 |
5/8 |
1/2-20 |
1/4 |
45/64 |
14 |
.5003 |
350 |
4000 |
4260 |
3600 |
|
CFD-1 1/2 |
CCFD-1 1/2 |
1.500 |
.875 |
.625 |
1 1/2 |
3/4 |
5/8-18 |
5/16 |
55/64 |
20 |
.6253 |
650 |
6150 |
6910 |
5000 |
|
CFD-1 5/8 |
CCFD-1 5/8 |
1.625 |
.875 |
.625 |
1 1/2 |
3/4 |
5/8-18 |
5/16 |
55/64 |
20 |
.6253 |
650 |
6150 |
6910 |
5400 |
|
CFD-1 3/4 |
CCFD-1 3/4 |
1.750 |
1.000 |
.750 |
1 3/4 |
7/8 |
3/4-16 |
5/16 |
15/16 |
20 |
.7503 |
1250 |
7900 |
9190 |
6650 |
|
CFD-1 7/8 |
CCFD-1 7/8 |
1.875 |
1.000 |
.750 |
1 3/4 |
7/8 |
3/4-16 |
5/16 |
15/16 |
20 |
.7503 |
1250 |
7900 |
9190 |
7100 |
|
CFD-2 |
CCFD-2 |
2.000 |
1.250 |
.875 |
2 |
1 |
7/8-14 |
7/16 |
1 5/32 |
24 |
.8753 |
1500 |
12100 |
14600 |
9500 |
|
CFD-2 1/4 |
CCFD-2 1/4 |
2.250 |
1.250 |
.875 |
2 |
1 |
7/8-14 |
7/16 |
1 5/32 |
24 |
.8753 |
1500 |
12100 |
14600 |
10500 |
|
CFD-2 1/2 |
CCFD-2 1/2 |
2.500 |
1.500 |
1.000 |
2 1/4 |
1 1/8 |
1-14 |
1/2 |
1 5/16 |
30 |
1.0003 |
2250 |
16600 |
22600 |
14000 |
|
CFD-2 3/4 |
CCFD-2 3/4 |
2.750 |
1.500 |
1.000 |
2 1/4 |
1 1/8 |
1-14 |
1/2 |
1 5/16 |
30 |
1.0003 |
2250 |
16600 |
22600 |
15000 |
|
CFD-3 |
CCFD-3 |
3.000 |
1.750 |
1.250 |
2 1/2 |
1 1/4 |
1 1/4-12 |
3/4 |
1 27/32 |
30 |
1.2503 |
3450 |
25100 |
36500 |
18300 |
|
CFD-3 1/4 |
CCFD-3 1/4 |
3.250 |
1.750 |
1.250 |
2 1/2 |
1 1/4 |
1 1/4-12 |
3/4 |
1 27/32 |
30 |
1.2503 |
3450 |
25100 |
36500 |
20300 |
|
CFD-3 1/2 |
CCFD-3 1/2 |
3.500 |
2.000 |
1.375 |
2 3/4 |
1 3/8 |
1 3/8-12 |
3/4 |
2 3/16 |
30 |
1.3753 |
4200 |
34200 |
52500 |
23700 |
|
CFD-4 |
CCFD-4 |
4.000 |
2.250 |
1.500 |
3 1/2 |
1 1/2 |
1 1/2-12 |
3/4 |
2 27/64 |
30 |
1.5003 |
5000 |
44100 |
67900 |
32500 |
|
CFD-5 |
CCFD-5 |
5.000 |
2.750 |
2.000 |
5 1/16 |
2 9/16 |
2-12 |
7/8 |
2 61/64 |
48 |
2.0003 |
5000 |
67800 |
109500 |
50500 |
|
CFD-6 |
CCFD-6 |
6.000 |
3.250 |
2.500 |
6 |
3 |
2 1/2-12 |
1 |
3 11/16 |
56 |
2.5003 |
5000 |
101900 |
169900 |
71500 | |
CCFD-1 3/8、CCFD-1 1/2、CCFD-1 3/4现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
639174,
544118,
3MM9111WICRDUMFS637,
3MMVC9311HXVVDULFS637,
5566/5535,
CZSB102CDUL O-11 P2PFT 25205,
AVZ25L,
B7001E.T.P4S.UL,
RKYR62,
SAS2Std,
17PU-H342U,
LB68M1103R,
GIL10DO,
23926YMW20C3,
SEA140/GH7BE1DDL,
SEA120/XN5LI1DDL,
51317,
6209-Z,
POS20EC,
6006DB,
02C75MEX,
IR15 × 18 × 12.5,
81216T2,
MR9612040,
7006CTYP5,
GE15GS-2RS,
3482/3420,
YAK215/16,
HWE207SR,
HCN1011K.M1.SP,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008进行详细查询，谢谢！
，我们还提供其相关技术信息包括
FYH UCSP UCSFL UCSF UCSPA UCST USP,
STIEBER AS AV BAT CR CSK DC FS FSO GFK GFR 图和尺寸,
HYSM6008C、HYSM605C、HYSM660C、HYSM607C、HYSM608C、HYSM609C、HYSM6000C、HYSM6001C、HYSM6002C、HYSM6003C、,
IKO、LRBZ81212 GBR142212、LRBZ202416 GBR243320、LRBZ243020 GBR324116、LRBZ324028、GBR445624,
直行走轴承SDM8S、SDM6、SDM8、SDM10、SDM12、SDM13、SDM16、SDM20、SDM25、SDM30、SDM35,
UG2M55NL 孔径 55 、 UG236NL 孔径 2-1/4,
471192V 714489 713750 471193 National美国油封型号,
导引式法兰单元SFC-206TMC、SFC-207TMC、SFC-209TMC、SFC-211TMC,
ZEF6107、ZEF6045MM、ZEF6203,
FRY224N、FRY227N、FRY231N、FRY2E32N,
WSTU-DLEZ-100-PCR、WSTU-DLEZ-012-PCR,
F3B-SLX-20M、F3B-SLX-25M,
National 油封 457295、457299、457343,
MAM08ADJWSS、THOMSON产、 MAM12ADJWSS,
CTH34、CTH3D、CTH35、CTH7D、CTH6D,
我们能针对客户的需求提供各种技术服务，具体详细信息请联系川代轴承全国客服热线021-52797858转8008询价，我们将为您提供专业详细的服务。如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008询价进行详细查询，谢谢！ |
