Series	Shaft Size	Part No.		Insert with Flingers Description			Corrosion Resistant Insert Part No.                            Description
204	3/4 20mm	128646 126629		INS-DL-012 INS-DL-20M			126685 126693			INS-DL-012-CR INS-DL-20M-CR
205	7/8	128684		INS-DL-014			@			INS-DL-014-CR*
	15/16	128647		INS-DL-015			@			INS-DL-015-CR*
	1	128648		INS-DL-100			126686			INS-DL-100-CR
	25mm	126630		INS-DL-25M			126694			INS-DL-25M-CR
206	1-1/8	128649		INS-DL-102			059869			INS-DL-102-CR*
	1-3/16	128650		INS-DL-103			126687			INS-DL-103-CR
	1-1/4	128651		INS-DL-104S			126688			INS-DL-104S-CR
	30mm	126631		INS-DL-30M			126695			INS-DL-30M-CR
207	1-1/4	128652		INS-DL-104			126689			INS-DL-104-CR
	1-3/8	128653		INS-DL-106			@			INS-DL-106-CR*
	1-7/16	128654		INS-DL-107			052093			INS-DL-107-CR
	35mm	126632		INS-DL-35M			126696			INS-DL-35M-CR
208	1-1/2 40mm	128655 126633		INS-DL-108 INS-DL-40M			126690 126697			INS-DL-108-CR INS-DL-40M-CR
209	1-5/8	128656		INS-DL-110L			@			INS-DL-110L-CR*
	1-11/16	128657		INS-DL-111			126691			INS-DL-111-CR
	1-3/4	128658		INS-DL-112			@			INS-DL-112-CR*
	45mm	126634		INS-DL-45M			126698			INS-DL-45M-CR
210	1-11/16	128672		INS-DLM-111			@			INS-DLM-111-CR
	1-15/16	128659		INS-DL-115			126692			INS-DL-115-CR
	2	128660		INS-DL-200			053986			INS-DL-200-CR*
	50mm	126635		INS-DL-50M			126699			INS-DL-50M-CR

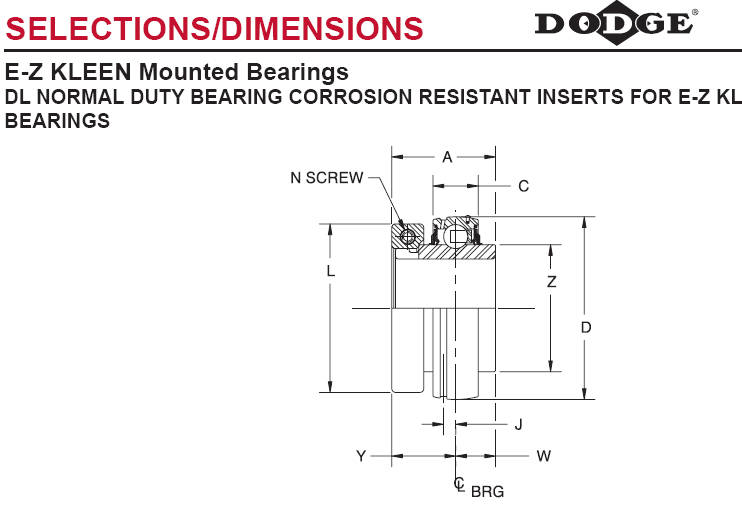

Series	Shaft Size	Weight lbs kg	A		C	D		J	L		N	W	Y	Z
204	3/4 20mm	0.6 0.3	1-9/32 32.5		0.5906 15.0	1.8504 47.0		0.152 3.9	1-45/64 43.3		No. 8 M4	1/2 12.7	25/32 19.8	1-1/8 28.6
205	7/8	0.8	1-7/16		0.5906	2.0472		0.152	2		No. 10	9/16	7/8	1-21/64
	15/16	0.8
	1	0.8
	25mm	0.4	36.5		15.0	52.0		3.9	50.8		M5	14.3	22.2	33.7
206	1-1/8	1.2	1-9/16		0.7087	2.4409		0.190	2-7/32		No. 10	5/8	15/16	1-37/64
	1-3/16	1.2
	1-1/4	1.1
	30mm	0.6	39.7		18.0	62.0		4.8	56.4		M5	15.9	23.8	40.1
207	1-1/4	1.8	1-3/4		0.7480	2.8346		0.202	2-11/16		1/4	11/16	1-1/16	1-27/32
	1-3/8	1.8
	1-7/16	1.7
	35mm	0.8	44.5		19.0	72.0		5.1	68.3		M6	17.5	27.0	46.8
208	1-1/2 40mm	2.2 1.0	2 50.8		0.8661 22.0	3.1496 80.0		0.224 5.7	2-47/64 69.5		1/4 M6	3/4 19.1	1-1/4 31.8	2-3/64 52.0
209	1-5/8	2.5	2		0.8661	3.3465		0.248	2-63/64		1/4	3/4	1-1/4	2-7/32
	1-11/16	2.5
	1-3/4	2.5
	45mm	1.2	50.8		22.2	85.8		6.4	75.8		M6	19.1	31.8	56.9
210	1-11/16	3.0	2-3/32		0.8661	3.5433		0.248	3-15/64		1/4	3/4	1-11/32	2-7/16
	1-15/16	3.0
	2	3.0
	50mm	1.4	53.2		22.0	90.0		6.3	82.1		M6	19.1	34.1	61.9
