FB-DLEZ-20M-PCR、FB-DLEZ-100-PCR

Series

Shaft Size

With Corrosion Resistant Insert Part

No.                            Description

With Insert With Flingers

Part No.                            Description

204

3/4

20 mm

127611

127648

FB-DLEZ-012-PCR

FB-DLEZ-20M-PCR

@

@

FB-DLEZ-012-P

FB-DLEZ-20M-P

205

7/8

@

FB-DLEZ-014-PCR*

@

FB-DLEZ-014-P

15/16

@

FB-DLEZ-015-PCR*

@

FB-DLEZ-015-P

1

127612

FB-DLEZ-100-PCR

@

FB-DLEZ-100-P

25 mm

127649

FB-DLEZ-25M-PCR

@

FB-DLEZ-25M-P

206

1-1/8

@

FB-DLEZ-102-PCR*

@

FB-DLEZ-102-P

1-3/16

127613

FB-DLEZ-103-PCR

@

FB-DLEZ-103-P

1-1/4

127614

FB-DLEZ-104S-PCR

@

FB-DLEZ-104S-P

30 mm

127650

FB-DLEZ-30M-PCR

@

FB-DLEZ-30M-P

207

1-1/4

127615

FB-DLEZ-104-PCR

@

FB-DLEZ-104-P

1-3/8

@

FB-DLEZ-106-PCR*

@

FB-DLEZ-106-P

1-7/16

127616

FB-DLEZ-107-PCR

@

FB-DLEZ-107-P

35 mm

127651

FB-DLEZ-35M-PCR

@

FB-DLEZ-35M-P

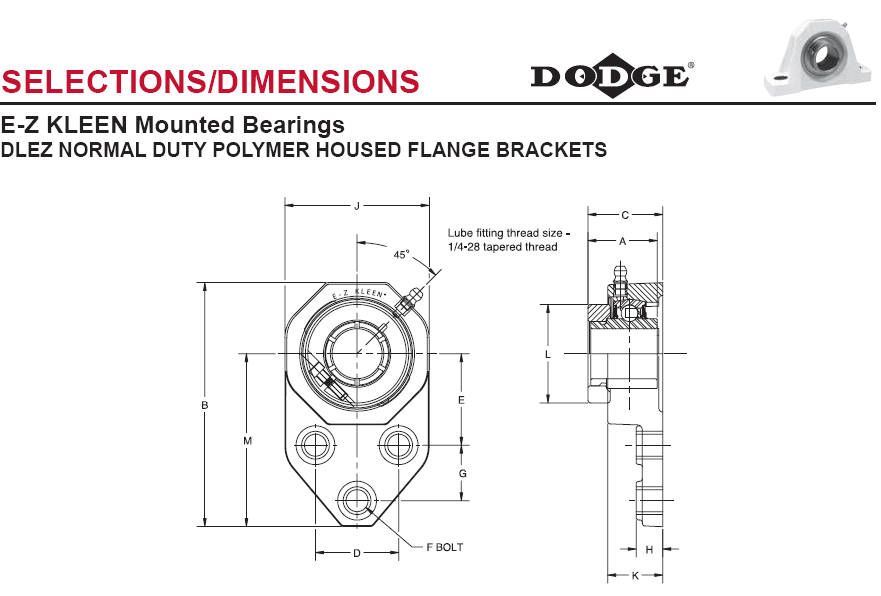

Series

Shaft Size

Weight

Lbs kg

A

B

C

D

E

F

Bolt Dia.

G

H

I

J

K

L

204

3/4

20 mm

0.75

0.35

1-9/32

32.5

4-25/64

111.5

1-15/32

37.3

1-1/2

38.1

1-11/16

42.9

3/8

M10

7/8

22.2

17/32

13.5

3-3/16

81.1

2-11/32

59.4

1-1/8

28.4

1-45/64

43.3

205

7/8

1.32

1-7/16

4-29/32

1-37/64

1-5/8

1-13/16

3/8

1-1/8

35/64

3-17/32

2-45/64

1-9/64

2

15/16

1.22

1

1.12

25 mm

0.51

36.5

124.6

40.1

41.3

46.1

M10

28.6

13.9

89.8

68.8

29.0

50.8

206

1-1/8

1.77

1-9/16

5-31/64

1-11/16

1-7/8

2-1/16

3/8

1-1/4

39/64

3-57/64

3-13/64

1-1/4

2-7/32

1-3/16

1.67

1-1/4

1.57

30 mm

0.76

39.7

139.3

42.9

47.6

52.4

M10

31.8

15.5

98.6

81.3

31.8

56.4

207

1-1/4

2.65

1-3/4

6-7/64

1-53/64

2

2-3/8

1/2

1-1/4

5/8

4-15/64

3-45/64

1-9/32

2-11/16

1-3/8

2.58

1-7/16

2.55

35 mm

1.22

44.5

155.2

46.4

50.8

60.3

M12

31.8

15.9

107.6

94.1

32.5

68.3
