FB-SCEZ-100-PCR、FB-SCEZ-010-PCR

Series

Shaft Size

With Corrosion

Resistant Insert Part

No.

Description

With Insert

With Flingers

Part No.

 Description

204

1/2

@

FB-SCEZ-008-PCR*

062317

FB-SCEZ-008-P

5/8

@

FB-SCEZ-010-PCR*

@

FB-SCEZ-010-P

3/4

127533

FB-SCEZ-012-PCR

058336

FB-SCEZ-012-P

20 mm

127570

FB-SCEZ-20M-PCR

@

FB-SCEZ-20M-P

205

7/8

@

FB-SCEZ-014-PCR*

@

FB-SCEZ-014-P

15/16

@

FB-SCEZ-015-PCR*

@

FB-SCEZ-015-P

1

127534

FB-SCEZ-100-PCR

057908

FB-SCEZ-100-P

25 mm

127521

FB-SCEZ-25M-PCR

@

FB-SCEZ-25M-P

206

1-1/8

@

FB-SCEZ-102-PCR*

@

FB-SCEZ-102-P

1-3/16

127535

FB-SCEZ-103-PCR

@

FB-SCEZ-103-P

1-1/4

127536

FB-SCEZ-104S-PCR

058311

FB-SCEZ-104S-P

30 mm

127522

FB-SCEZ-30M-PCR

@

FB-SCEZ-30M-P

207

1-1/4

127537

FB-SCEZ-104-PCR

@

FB-SCEZ-104-P

1-5/16

058648

FB-SCEZ-105-PCR*

@

FB-SCEZ-105-P

1-3/8

@

FB-SCEZ-106-PCR*

@

FB-SCEZ-106-P

1-7/16

127538

FB-SCEZ-107-PCR

@

FB-SCEZ-107-P

35 mm

127523

FB-SCEZ-35M-PCR

@

FB-SCEZ-35M-P

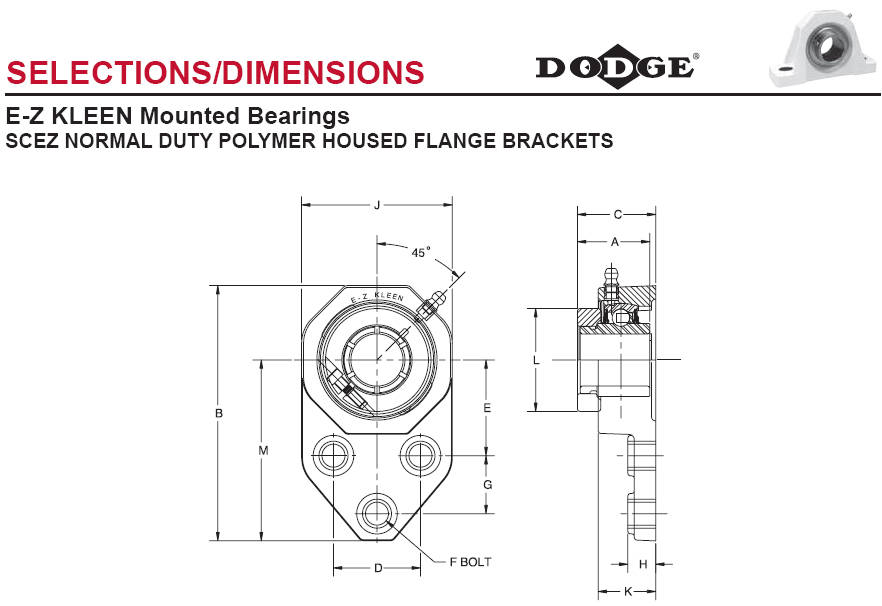

Series

Shaft Size

Weight

kg

A

B

C

D

E

F

Bolt Dia.

G

H

I

J

K

L

204

1/2

0.51

1-5/32

4-25/64

1-27/64

1-1/2

1-11/16

3/8

7/8

17/32

3-3/16

2-11/32

1-1/8

1-1/8

5/8

0.49

3/4

0.47

20 mm

0.23

29.4

111.5

37.3

38.1

42.9

M10

22.2

13.5

81.1

59.4

28.4

28.6

205

7/8

0.73

1-3/16

4-29/32

1-15/32

1-5/8

1-13/16

3/8

1-1/8

35/64

3-17/32

2-23/32

1-9/64

1-21/64

15/16

0.71

1

0.69

25 mm

0.32

30.2

124.6

40.1

41.3

46.1

M10

28.6

13.9

89.8

69.1

29.0

33.7

206

1-1/8

1.09

1-25/64

5-31/64

1-21/32

1-7/8

2-1/16

3/8

1-1/4

39/64

3-57/64

3-13/64

1-1/4

1-37/64

1-3/16

1.07

1-1/4

1.05

30 mm

0.48

35.3

139.2

42.9

47.6

52.4

M10

31.8

15.5

98.6

81.3

31.8

40.1

207

1-1/4

1.87

1-17/32

6-7/64

1-51/64

2

2-3/8

1/2

1-1/4

5/8

4-15/64

3-45/64

1-9/32

1-27/32

1-5/16

1.81

1-3/8

1.76

1-7/16

1.71

35 mm

0.83

38.9

155.2

46.4

50.8

60.3

M12

31.8

15.9

107.6

94.1

32.5

46.8
