TB-SCEZ-012-PCR、TB-SCEZ-100-PCR

Series

Shaft Size

With Corrosion

Resistant Insert Part No.

  Description

Standard Insert With

Flingers Part No.

  Description

204

1/2

@

TB-SCEZ-008L-PCR*

@

TB-SCEZ-008L-P

5/8

@

TB-SCEZ-010L-PCR*

@

TB-SCEZ-010L-P

3/4

127509

TB-SCEZ-012-PCR

@

TB-SCEZ-012-P

20 mm

127552

TB-SCEZ-20M-PCR

@

TB-SCEZ-20M-P

205

7/8

@

TB-SCEZ-014-PCR*

@

TB-SCEZ-014-P

15/16

@

TB-SCEZ-015-PCR*

@

TB-SCEZ-015-P

1

127510

TB-SCEZ-100-PCR

@

TB-SCEZ-100-P

25 mm

127553

TB-SCEZ-25M-PCR

@

TB-SCEZ-25M-P

206

1-1/8

@

TB-SCEZ-102-PCR*

@

TB-SCEZ-102-P

1-3/16

127511

TB-SCEZ-103-PCR

@

TB-SCEZ-103-P

1-1/4

127512

TB-SCEZ-104S-PCR

058632

TB-SCEZ-104S-P

30 mm

127554

TB-SCEZ-30M-PCR

@

TB-SCEZ-30M-P

207

1-1/4

127513

TB-SCEZ-104-PCR

@

TB-SCEZ-104-P

1-5/16

@

TB-SCEZ-105-PCR*

@

TB-SCEZ-105-P

1-3/8

056577

TB-SCEZ-106-PCR*

@

TB-SCEZ-106-P

1-7/16

127514

TB-SCEZ-107-PCR

@

TB-SCEZ-107-P

35 mm

127555

TB-SCEZ-35M-PCR

@

TB-SCEZ-35M-P

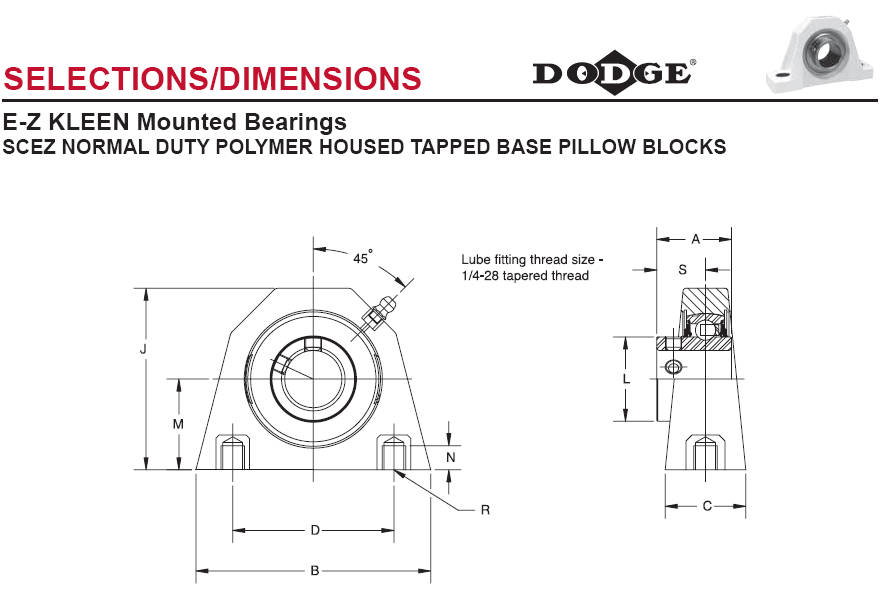

Series

Shaft Size

Weight

Lbs kg

A

B

C

D

J

L

M

N

Thread Depth

R

Bolt Hole

Threads

S

204

1/2

0.74

1-5/32

3-1/4

1-31/64

2

2-21/32

1-1/8

1-5/16

13/32

3/8-16

47/64

5/8

0.66

3/4

0.60

20 mm

0.29

29.4

82.6

37.7

50.8

67.6

28.6

33.3

10.2

M10x1.5

18.7

205

7/8

0.72

1-3/16

3-1/4

1-1/2

2

2-57/64

1-21/64

1-7/16

13/32

3/8-16

49/64

15/16

0.64

1

0.58

25 mm

0.28

30.2

82.6

38.1

50.8

73.3

33.7

36.5

10.2

M10x1.5

19.4

206

1-1/8

1.16

1-25/64

4-3/8

1-37/64

3

3-3/8

1-37/64

1-11/16

29/64

7/16-14

29/32

1-3/16

1.09

1-1/4

1.07

30 mm

0.49

35.3

111.1

40.1

76.2

85.9

40.1

42.9

11.4

M10x1.5

23.0

207

1-1/4

1.64

1-17/32

4-5/8

1-57/64

3-1/4

3-13/16

1-27/32

1-7/8

35/64

1/2-13

1-1/32

1-5/16

1.58

1-3/8

1.53

1-7/16

1.48

35 mm

0.72

38.9

117.5

48.0

82.6

97.2

46.8

47.6

14.0

M12x1.75

26.2
