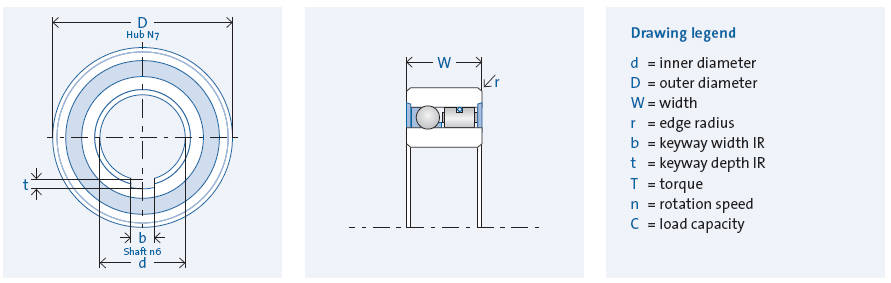

Designation

d

[mm]

D

[mm]

W

[mm]

r

[mm]

b

[mm]

t

[mm]

Tnom

[Nm]

nmax

[rpm]

Cdyn.

[N]

Cstat

.[N]

Weight

[kg]

Itemno.

FKN6203

17

40

12

1

5

12

53

10,800

6,245

3,441

0.07

301112

FKN6203-RS

17

40

12

1

5

1.2

53

3,700

6,245

3,441

0.07

301114

FKN6204

20

47

14

1.5

6

1.6

60

7,500

6,869

4,268

0.12

301120

FKN6204-2RS

20

47

14

1.5

6

1.6

60

3,200

6,869

4,268

0.12

301125

FKN6205

25

52

15

1.5

8

2

104

5,400

7,448

5,146

0.15

301131

FKN6205-2RS

25

52

15

1.5

8

2

104

2,800

7,448

5,146

0.15

301130

FKN6206

30

62

16

1.5

8

2

148

5,100

7,859

6,066

0.23

301145

FKN6206-2RS

30

62

16

1.5

8

2

148

2,400

7,859

6,066

0.23

301143

FKN6207

35

72

17

1.5

10

3.3

265

3,700

8,902

7,819

0.33

301156

FKN6207-2RS

35

72

17

1.5

10

3.3

265

1,900

8,902

7,819

0.33

301158

FKN6208

40

80

18

1.5

12

3.3

267

3,700

8,902

7,752

0.45

301161

FKN6208-2RS

40

80

18

1.5

12

3.3

267

1,900

8,902

7,752

0.45

301163
