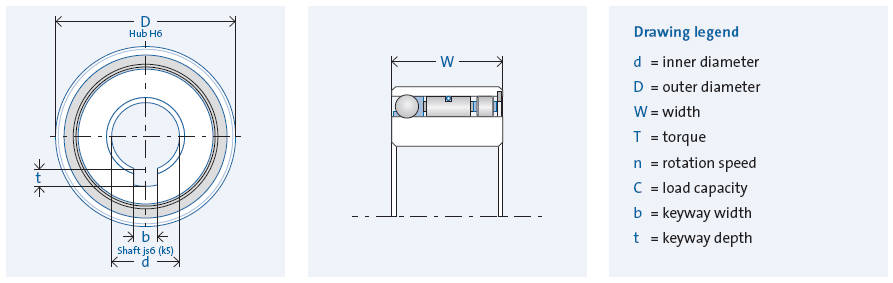

Designation

d

[mm]

D

[mm]

W

[mm]

Tnom

[Nm]

nmax

[rpm]

Cdyn.

[N]

Cstat

.[N]

Weight

[kg]

b

[mm]

t

[mm]

Itemno.

FN437M

15

41

27

176

4,800

8,962

8,661

0.19

15

2.3

300706

FN437Z

15

41

27

160

4,800

8,962

8,661

0.19

15

2.3

300707

FN442M

20

46

27

223

4,200

10,247

10,708

0.22

20

2.8

300712

FN442Z

20

46

27

208

4,200

10,247

10,708

0.22

20

2.8

300714

FN453M

25

58

27

343

3,400

11,417

13,577

0.36

25

3.3

300718

FN453Z

25

58

27

314

3,400

11,417

13,577

0.36

25

3.3

300719

FN459M

30

64

27

411

3,000

12,691

16,320

0.43

30

3.3

300726

FN459Z

30

64

27

381

3,000

12,691

16,320

0.43

30

3.3

300728

FN463M

35

68

27

461

2,900

13,070

17,063

0.47

35

3.3

306526

FN463Z

35

68

27

427

2,900

13,070

17,063

0.47

35

3.3

306527

FN470M

40

75

27

550

2,600

14,050

19,840

0.54

40

3.3

300731

FN470Z

40

75

27

509

2,600

14,050

19,840

0.54

40

3.3

300733

FN473M

45

78

27

588

2,500

14,128

19,896

0.58

45

3.8

306530

FN473Z

45

78

27

544

2,500

14,128

19,896

0.58

45

3.8

306531
