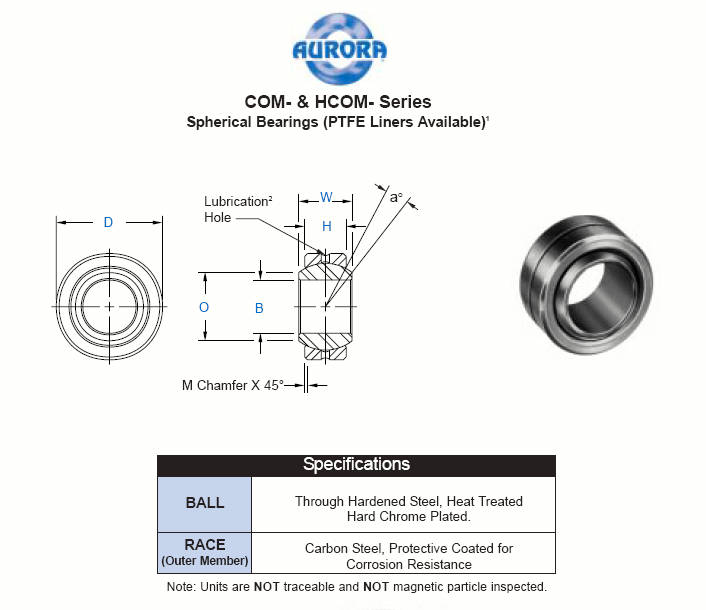

COM-4、COM-6、COM-10、COM-14关节轴承

AURORA

 NO.

DIMENSIONS IN MILLIMETERS

a°

Misalign.

Angle

Radial Static

Load Capacity

Lbs.

Approx.

Brg. Wt.

 Lbs.

B

+ .0015

- .0005

D

+ .0000

- .0007

H

+.005

W

+.005

O

Flat Dia

 Ref.

M

Chamfer

 Ref.

Ball Dia.

 Ref.

COM-3

.1900

.5625

.218

.281

.293

.015

.406

11

3,250

.014

COM-4

.2500

.6562

.250

.343

.364

.022

.500

13.5

4,950

.022

COM-5

.3125

.7500

.281

.375

.419

.032

.562

12

6,475

.030

COM-6

.3750

.8125

.312

.406

.516

.032

.656

10

8,400

.038

COM-7

.4375

.9062

.343

.437

.530

.032

.687

8

9,453

.047

COM-8

.5000

1.0000

.390

.500

.640

.032

.813

9.5

13,250

.065

COM-9

.5625

1.0937

.437

.562

.710

.032

.906

9.5

16,630

.086

COM-10

.6250

1.1875

.500

.625

.780

.032

1.000

8.5

21,280

.110

COM-12

.7500

1.4375

.593

.750

.920

.044

1.187

9

31,920

.204

COM-14

.8750

1.5625

.703

.875

.980

.044

1.312

9.5

41,960

.263

*COM-16

1.0000

1.7500

.797

1.000

1.118

.044

1.500

10

55,200

.386

*HCOM-16

1.0000

2.0000

.781

1.000

1.360

.032

1.687

9

70,820

.553

*HCOM-19

1.1875

2.3750

.937

1.187

1.610

.032

2.000

8.5

100,730

.895

*HCOM-20

1.2500

2.3750

.937

1.187

1.610

.032

2.000

8.5

100,730

.895

*HCOM-24

1.5000

2.7500

1.094

1.375

1.860

.032

2.312

8.5

135,950

1.358

*HCOM-28

1.7500

3.1250

1.250

1.562

2.110

.044

2.625

8

176,370

1.948

*HCOM-32

2.0000

3.5000

1.750

1.750

2.360

.044

2.937

8.5

217,060

2.650
