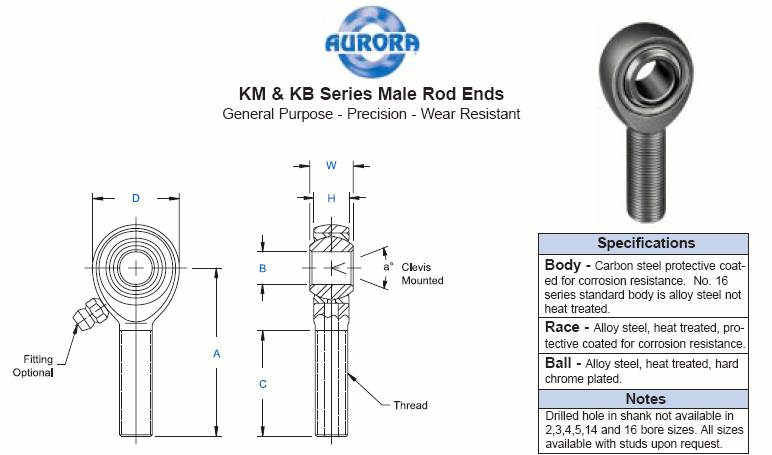

Rod End No.

DIMENSIONS IN INCHES

a°

Misalign.

Angle

Ultimate

Radial Static

Load Capacity

 Lbs.

Approx.

Brg. Wt.

Lbs.

Right

Hand

Left

Hand

B

+ .0015

- .0005

W

+ .000

- .005

H

+.005

A

+.015

D

+.010

Ball

Dia. Ref.

C

+ .062

- .031

Thread

UNF-3A

KM-3

KB-3

.1900

.312

.250

1.250

.625

.437

.750

10-32

13

1,169

.028

KM-4

KB-4

.2500

.375

.281

1.562

.750

.500

1.000

1/4-28

16

2,158

.043

KM-5

KB-5

.3125

.437

.344

1.875

.875

.625

1.250

5/16-24

14

2,784

.072

KM-6

KB-6

.3750

.500

.406

1.938

1.000

.719

1.250

3/8-24

12

3,915

.112

KM-7

KB-7

.4375

.562

.437

2.125

1.125

.812

1.375

7/16-20

14

4,218

.160

KM-8

KB-8

.5000

.625

.500

2.438

1.312

.937

1.500

1/2-20

12

6,660

.249

KM-10

KB-10

.6250

.750

.562

2.625

1.500

1.125

1.625

5/8-18

16

7,364

.382

KM-12

KB-12

.7500

.875

.687

2.875

1.750

1.312

1.750

3/4-16

14

11,518

.602

KM-14

KB-14

.8750

.875

.765

3.375

2.000

1.375

2.000

7/8-14

7

18,476

.906

KM-16

KB-16

1.0000

1.375

1.000

4.125

2.750

1.875

2.125

1 1/4-12

17

43,541

2.406

KM-16-1

KB-16-1

1.0000

1.375

1.000

4.125

2.750

1.875

2.125

1-143

17

43,541

2.127

KM-16-2

KB-16-2

1.0000

1.375

1.000

4.125

2.750

1.875

2.125

1-12

17

43,541

2.127
