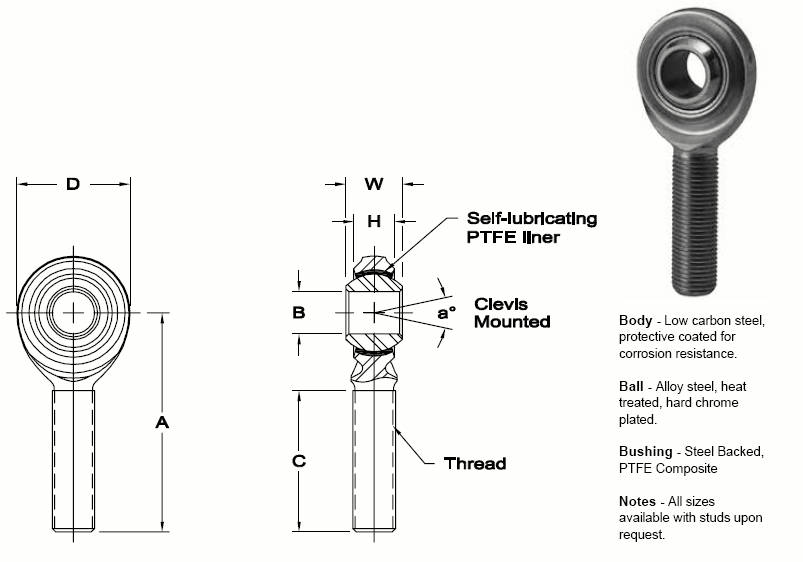

ROD END NO.

DIMENSIONS IN INCHES

a° Misalign.

Angle

Ultimate

Radial Static

Load

Capacity Lbs.

Approx. Brg.

Wt. Lbs.

Right

Hand

Left

Hand

B

+ .0025

- .0005

W

± .005

H

Ref.

A

± .015

D

Ref.

Ball Dia.

 Ref.

C

+ .062

- .031

Thread

UNF-3A

VCM-5

VCB-5

.3125

.437

.312

1.875

.875

.593

1.250

5/16-24

18

2,623

.07

VCM-6

VCB-6

.3750

.500

.359

1.938

1.000

.687

1.250

3/8-24

18

3,643

.11

VCM-7

VCB-7

.4375

.562

.406

2.125

1.125

.781

1.375

7/16-20

17

4,464

.15

VCM-8

VCB-8

.5000

.625

.453

2.438

1.312

.875

1.500

1/2-20

16

7,229

.24

VCM-10

VCB-10

.6250

.750

.484

2.625

1.500

1.062

1.625

5/8-18

22

8,204

.36

VCM-12

VCB-12

.7500

.875

.593

2.875

1.750

1.250

1.750

3/4-16

20

12,280

.57
