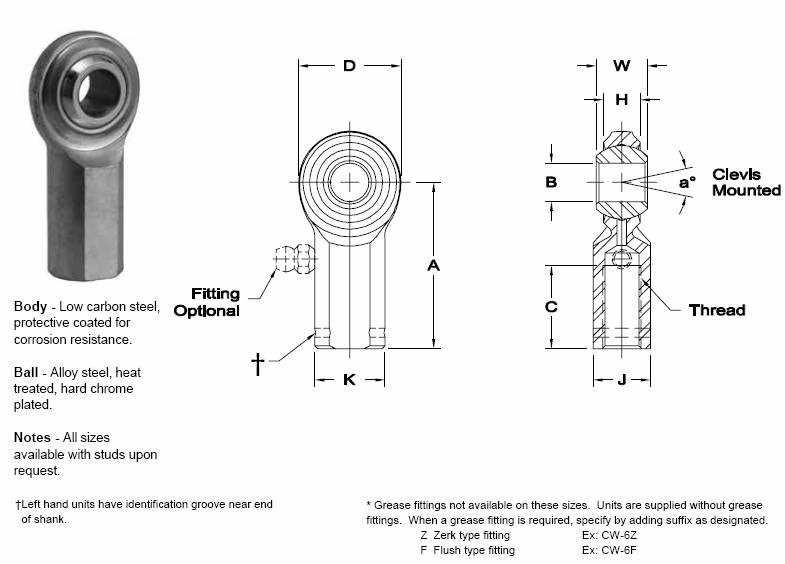

ROD END NO.

DIMENSIONS IN INCHES

a° Misalign.

Angle

Ultimate Radial

Static Load

Capacity Lbs.

Approx.

Brg. Wt. Lbs.

Right

Hand

Left

Hand†

B

+ .0025

-.0005

W

± .005

H

Ref.

A

± .015

D

Ref.

K

± .010

J

± .010

Ball Dia. Ref.

C

+ .062

- .031

Thread

UNF-2B

CW-3*

CG-3*

.1900

.312

.234

1.062

.625

.406

.312

.437

.500

10-32

20

2,079

.04

CW-4

CG-4

.2500

.375

.250

1.312

.750

.469

.375

.500

.687

1/4-28

27

3,208

.05

CW-5

CG-5

.3125

.437

.312

1.375

.875

.500

.437

.625

.687

5/16-24

22

3,824

.08

CW-6

CG-6

.3750

.500

.359

1.625

1.000

.687

.562

.719

.812

3/8-24

22

5,087

.13

CW-7

CG-7

.4375

.562

.406

1.812

1.125

.750

.625

.812

.937

7/16-20

21

6,385

.18

CW-8

CG-8

.5000

.625

.453

2.125

1.312

.875

.750

.937

1.062

1/2-20

20

9,096

.29

CW-10

CG-10

.6250

.750

.484

2.500

1.500

1.000

.875

1.125

1.375

5/8-18

26

9,713

.43

CW-12

CG-12

.7500

.875

.593

2.875

1.750

1.125

1.000

1.312

1.562

3/4-16

24

14,207

.65
