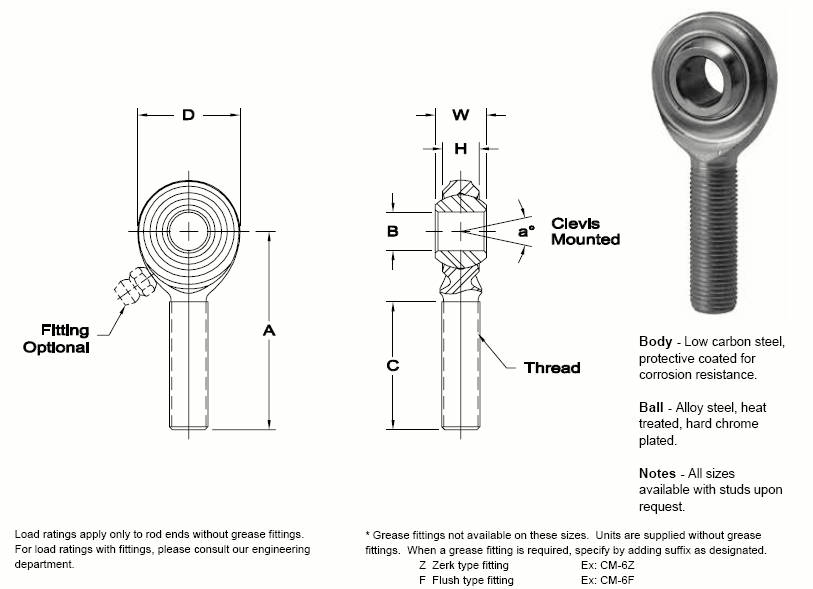

CM-6、CM-8、CB-6、CM-10关节轴承

ROD END NO.

DIMENSIONS IN INCHES

a° Misalign.

 Angle

Ultimate Radial

Static Load

Capacity Lbs.

Approx.

Brg. Wt. Lbs.

Right Hand

Left Hand

B

+ .0025

-.0005

W

± .005

H

Ref.

A

± .015

D

Ref.

Ball Dia.

 Ref.

C

+ .062

- .031

Thread

UNF-3A

CM-3*

CB-3*

.1900

.312

.234

1.250

.625

.437

.750

10-32

20

1,204

.03

CM-4*

CB-4*

.2500

.375

.250

1.562

.750

.500

1.000

1/4-28

27

2,212

.04

CM-5*

CB-5*

.3125

.437

.312

1.875

.875

.625

1.250

5/16-24

22

3,577

.07

CM-6

CB-6

.3750

.500

.359

1.938

1.000

.719

1.250

3/8-24

22

5,068

.11

CM-7

CB-7

.4375

.562

.406

2.125

1.125

.812

1.375

7/16-20

21

6,345

.15

CM-8

CB-8

.5000

.625

.453

2.438

1.312

.937

1.500

1/2-20

20

8,338

.24

CM-10

CB-10

.6250

.750

.484

2.625

1.500

1.125

1.625

5/8-18

26

9,713

.36

CM-12

CB-12

.7500

.875

.593

2.875

1.750

1.312

1.750

3/4-16

24

14,207

.57
