| SPW-4、SPG-6、SPW-7、SPW-10关节 |
|
上海川代轴承机械有限公司 新闻动态 2025-10-31
|
 |
|

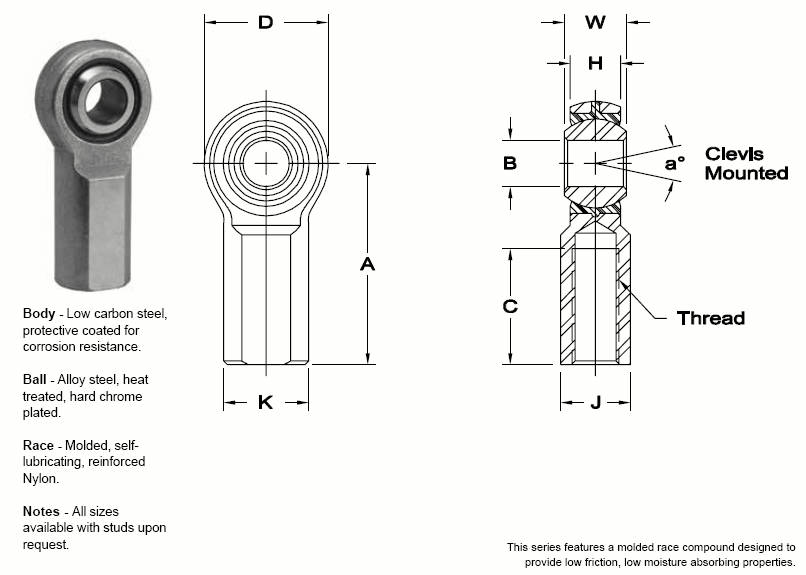

ROD END NO. |
AURORA: DIMENSIONS IN INCHES |
|
a° Misalign. Angle |
Ultimate Radial Static Load Capacity Lbs. |
Approx. Brg. Wt. Lbs. |
|
Right Hand |
Left Hand |
B
+ .0020
-.0000 |
W
± .005 |
H
Ref. |
A
+ .060
- .030 |
D
± .015 |
K
± .015 |
J
± .015 |
Ball Dia. Ref. |
C
± .062 |
Thread UNF-2B |
|
SPW-3 |
SPG-3 |
.1900 |
.312 |
.250 |
1.062 |
.625 |
.406 |
.312 |
.437 |
.562 |
10-32 |
13 |
1,210 |
.04 |
|
SPW-4 |
SPG-4 |
.2500 |
.375 |
.281 |
1.312 |
.750 |
.469 |
.375 |
.500 |
.750 |
1/4-28 |
16 |
2,470 |
.06 |
|
SPW-5 |
SPG-5 |
.3125 |
.437 |
.344 |
1.375 |
.875 |
.500 |
.437 |
.625 |
.750 |
5/16-24 |
14 |
2,740 |
.08 |
|
SPW-6 |
SPG-6 |
.3750 |
.500 |
.406 |
1.625 |
1.000 |
.687 |
.562 |
.719 |
.937 |
3/8-24 |
12 |
4,100 |
.15 |
|
SPW-7 |
SPG-7 |
.4375 |
.562 |
.437 |
1.812 |
1.125 |
.750 |
.625 |
.812 |
1.062 |
7/16-20 |
14 |
5,350 |
.19 |
|
SPW-8 |
SPG-8 |
.5000 |
.625 |
.500 |
2.125 |
1.312 |
.875 |
.750 |
.937 |
1.187 |
1/2-20 |
12 |
6,430 |
.31 |
|
SPW-10 |
SPG-10 |
.6250 |
.750 |
.562 |
2.500 |
1.500 |
1.000 |
.875 |
1.125 |
1.500 |
5/8-18 |
16 |
8,300 |
.46 |
|
SPW-12 |
SPG-12 |
.7500 |
.875 |
.687 |
2.875 |
1.750 |
1.125 |
1.000 |
1.312 |
1.562 |
3/4-16 |
14 |
10,900 |
.67 |
|
ROD END NO. |
DIMENSIONS IN MILLIMETERS |
|
a° Misalign. Angle |
Ultimate
Radial Static Load Capacity Newtons |
Approx. Brg. Wt. Grams |
|
|
Right Hand |
Left Hand |
B
+ .051
-.000 |
W
± .13 |
H
Ref. |
A
+ 1.52
- .76 |
D
± .38 |
K
± .38 |
J
± .38 |
Ball Dia. Ref. |
C
± 1.57 |
Thread UNF-2B |
|
|
SPW-3 |
SPG-3 |
4.826 |
7.92 |
6.35 |
26.97 |
15.88 |
10.31 |
7.92 |
11.10 |
14.27 |
10-32 |
13 |
5,382 |
17 |
|
|
SPW-4 |
SPG-4 |
6.350 |
9.53 |
7.14 |
33.32 |
19.05 |
11.91 |
9.53 |
12.70 |
19.05 |
1/4-28 |
16 |
10,987 |
27 |
|
|
SPW-5 |
SPG-5 |
7.938 |
11.10 |
8.74 |
34.93 |
22.23 |
12.70 |
11.10 |
15.88 |
19.05 |
5/16-24 |
14 |
12,188 |
35 |
|
|
SPW-6 |
SPG-6 |
9.525 |
12.70 |
10.31 |
41.28 |
25.40 |
17.45 |
14.27 |
18.26 |
23.80 |
3/8-24 |
12 |
18,237 |
66 |
|
|
SPW-7 |
SPG-7 |
11.113 |
14.27 |
11.10 |
46.02 |
28.58 |
19.05 |
15.88 |
20.62 |
26.97 |
7/16-20 |
14 |
23,797 |
87 |
|
|
SPW-8 |
SPG-8 |
12.700 |
15.88 |
12.70 |
53.98 |
33.32 |
22.23 |
19.05 |
23.80 |
30.15 |
1/2-20 |
12 |
28,601 |
142 |
|
|
SPW-10 |
SPG-10 |
15.875 |
19.05 |
14.27 |
63.50 |
38.10 |
25.40 |
22.23 |
28.58 |
38.10 |
5/8-18 |
16 |
36,918 |
210 |
|
|
SPW-12 |
SPG-12 |
19.050 |
22.23 |
17.45 |
73.03 |
44.45 |
28.58 |
25.40 |
33.32 |
44.45 |
3/4-12 |
14 |
48,483 |
305 |
|
|
