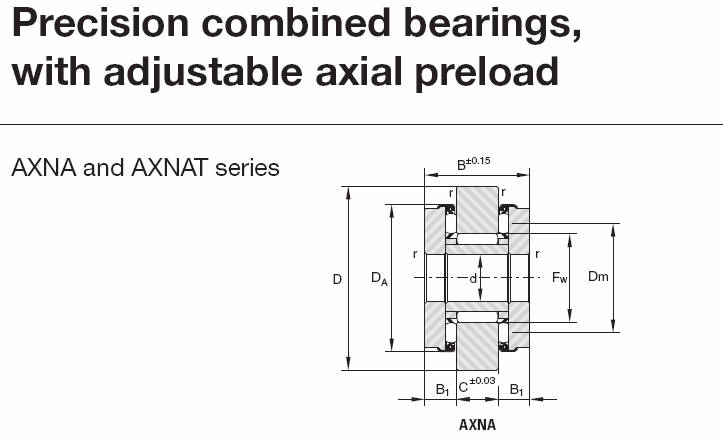

AXNA522、AXNAT638、AXNAT742

Shaft ∅ mm	Designation		dmm	D mm	Fwmm	DA mm	Dmmm	B mm	C mm	B1 mm	rmin.	Mounting
	AXNA	AXNAT										4) class12.9	N° screws	E mm	Torque Nm
5	AXNA522		5	22	7.3	17	12.5	12	4	4	0.35
		AXNAT532	5	32	7.3	17	12.5	12	4	4	0.35	3x10	4	24	1.4
6	AXNA628		6	28	8.7	22	15.3	16	6	5	0.35
		AXNAT638	6	38	8.7	22	15.3	16	6	5	0.35	4x12	4	30	3
7	AXNA732		7	32	11.1	26	18.8	18	6	6	0.35
		AXNAT742	7	42	11.1	26	18.8	18	6	6	0.35	4x12	6	34	3
8	AXNA832		8	32	11.1	26	18.8	18	6	6	0.35
		AXNAT842	8	42	11.1	26	18.8	18	6	6	0.35	4x12	6	34	3
9	AXNA935		9	35	12.8	28	20.8	20	8	6	0.35
		AXNAT945	9	45	12.8	28	20.8	20	8	6	0.35	4x16	6	37	3
10	AXNA1037		10	37	14.1	30	22.8	22	8	7	0.35
		AXNAT1048	10	48	14.1	30	22.8	22	8	7	0.35	5x16	6	39	6
12	AXNA1240		12	40	16.6	32	24.8	22	8	7	0.35
		AXNAT1250	12	50	16.6	32	24.8	22	8	7	0.35	5x16	6	41	6
