AX4060、AX4565、AX5578、AX6085

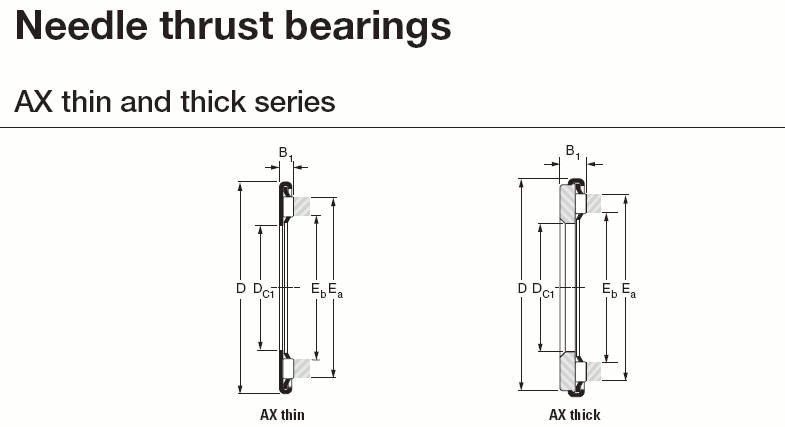

Shaft ∅ mm	Designation		D mm	D mm	B mm	E mm	E mm	Loadratings		Speedratin goilmin-1	Weight kg
	AXthinseries	AXthickseries						Dyn.CkN	Stat.CokN
40	AX4060		40	60	2.8	43.0	54.9	20.40	96.00	5000	0.024
		AX54060	40	60	5.0	43.0	54.9	20.40	96.00	5000	0.046
45	AX4565		45	65	2.8	48.0	59.9	21.80	109	4500	0.025
		AX54565	45	65	5.0	48.0	59.9	21.80	109	4500	0.050
50	AX5070		50	70	2.8	53.3	65.7	22.50	118	4000	0.026
		AX55070	50	70	5.0	53.3	65.7	22.50	118	4000	0.055
55	AX5578		55	78	2.8	58.4	72.5	28.50	164	3800	0.034
		AX65578	55	78	6.0	58.4	72.5	28.50	164	3800	0.089
60	AX6085		60	85	2.8	63.5	79.2	31.50	193	3500	0.040
		AX66085	60	85	6.0	63.5	79.2	31.50	193	3500	0.106
65	AX3.56590		65	90	3.5	68.5	84.2	33.50	210	3200	0.059
		AX66590	65	90	6.0	68.5	84.2	33.50	210	3200	0.114
70	AX3.57095		70	95	3.5	73.5	89.2	34.50	223	3000	0.061
		AX67095	70	95	6.0	73.5	89.2	34.50	223	3000	0.120
75	AX3.575100		75	100	3.5	78.5	94.2	36.00	240	2900	0.065
		AX675100	75	100	6.0	78.5	94.2	36.00	240	2900	0.127
80	AX3.580105		80	105	3.5	83.5	99.2	36.50	253	2700	0.069
		AX680105	80	105	6.0	83.5	99.2	36.50	253	2700	0.134
85	AX3.585110		85	110	3.5	88.5	104.2	38.00	270	2600	0.078
		AX685110	85	110	6.0	88.5	104.2	38.00	270	2600	0.142
90	AX4.590120		90	120	4.5	94.2	112.9	59.00	360	2400	0.117
		AX890120	90	120	8.0	94.2	112.9	59.00	360	2400	0.238
100	AX4.5100135		100	135	4.5	104.2	127.3	73.00	490	2100	0.155
		AX9100135	100	135	9.0	104.2	127.3	73.00	490	2100	0.364
110	AX4.5110145		110	145	4.5	114.2	137.3	77.00	550	2000	0.168
		AX9110145	110	145	9.0	114.2	137.3	77.00	550	2000	0.393
120	AX4.5120155		120	155	4.5	124.2	147.3	80.00	590	1800	0.182
		AX9120155	120	155	9.0	124.2	147.3	80.00	590	1800	0.42
