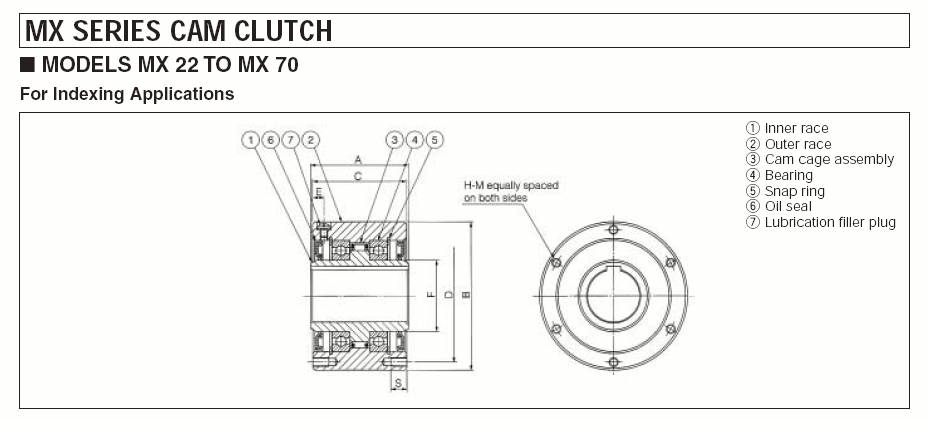

MX22、MX35、MX50、MX70

Model

Max. Torque (N·m)

Max.

 Indexing (cycle/min.)

Stock Bore Size

A

B (h7)

C

D

E

F

S

H-M

No. of Tapped Holes

× Size × Pitch

Lubrication

Filler Plug

Size × Pitch

Inertia

Overrun.

Drag (N·m)

Oil (cc)

Weight (kg)

Dia. (H7)

Key- way

Inner Race (kg·m2)

MX22

78.4

1,200

22

6 × 2.8

80

95

77

80

12

35

16

4 × M 8 × P1.25

M6 × P1.0

0.000150

0.470

80

3.3

MX35

235

1,200

35

10 × 3.3

90

125

87

110

12

50

16

4 × M 8 × P1.25

M6 × P1.0

0.000625

1.36

110

6.4

MX50

441

1,200

50

14 × 3.8

100

155

97

140

14

70

16

6 × M 8 × P1.25

M8 × P1.25

0.00275

2.68

190

10.6

MX70

784

1,200

70

20 × 4.9

127

200

124

180

15

100

20

6 × M10 × P1.5

M8 × P1.25

0.0130

5.15

340

21.3
