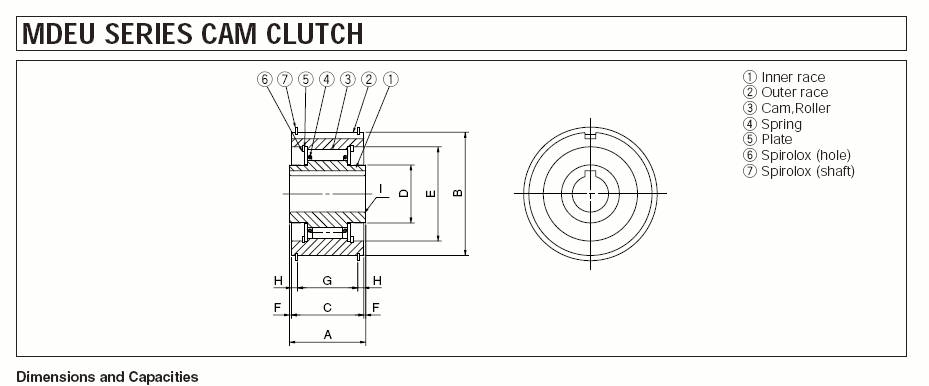

MDEU35、MDEU50、MDEU60、MDEU80

Model

Torque Capacity

N·m

Max.

Overrunning Speed

Inner race

r/min

Max. Indexing

cycle/min

Max.Radial

Load When Overrunning N

Bore Size

H7

Inner race Keyway

A

B

h7

C

D

E

F

G

H

I

Keyway

Outer race

Weight

kg

MDEU15

70

600

100

610

15

5×2.3

39

55

37

25

42

1

30

3.5

0.5

5×3

0.52

MDEU20

150

500

100

910

20

6×2.8

42

68

40

32

52

1

33

3.5

0.5

6×3.5

0.88

MDEU25

230

450

100

1060

25

8×3.3

42

80

40

40

65

1

33

3.5

0.5

8×4

1.1

MDEU30

390

400

100

1400

30

8×3.3

50

90

48

45

72

1

36

6

1

8×4

1.7

MDEU35

460

350

100

1500

35

10×3.3

50

100

48

50

80

1

36

6

1

10×5

2.1

MDEU40

530

350

100

1580

40

12×3.3

50

110

48

55

78

1

36

6

1

12×5

2.7

MDEU45

690

300

100

1770

45

14×3.8

50

120

48

65

88

1

36

6

1

14×5.5

3.2

MDEU50

870

300

100

1880

50

14×3.8

50

130

48

70

95

1

36

6

1

14×5.5

3.8

MDEU55

1100

250

100

2850

55

16×4.3

60

140

58

80

105

1

46

6

1

16×6

5.3

MDEU60

1500

250

100

3060

60

18×4.4

60

150

58

90

115

1

46

6

1

18×7

6.1

MDEU70

1900

200

100

3470

70

20×4.9

60

170

58

100

125

1

46

6

1

20×7.5

7.9

MDEU80

2300

200

100

3600

80

22×5.4

60

190

58

110

140

1

46

6

1

22×9

9.7
