单线轴承B205、B206、B207

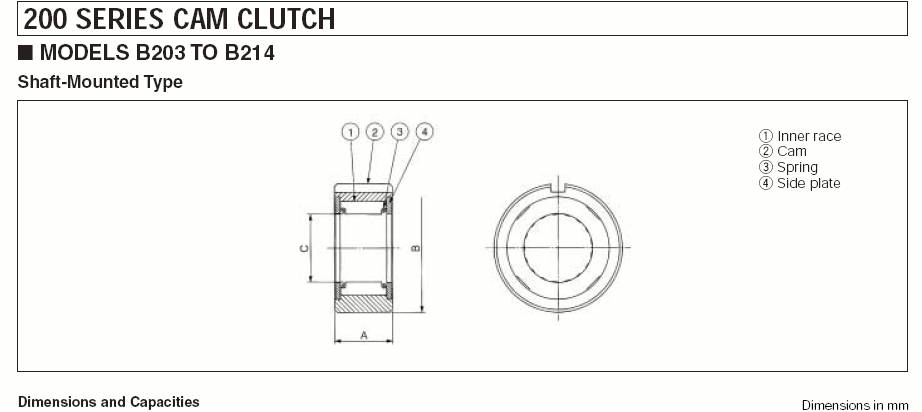

Model	Max. Torque (N·m)	Nomina lOverrunning Drag (N·m)	Max.Overrunning (r/min)		Max. Indexing (cycle/min.)	A(+0to)	B	ShaftDia. C(+0to) –0.025	Keyway	UsewithJ ISBearing Number	Weight (kg)
			Shaft	OuterRace
B203	39.2	0.098	2,400	500	150	25.0	40–0.014 –0.039	16.510	4×2.5	6203	0.23
B204	58.8	0.098	2,400	500	150	25.0	47–0.014 –0.039	18.796	5×3	6204	0.34
B205	98	0.196	1,800	400	150	25.0	52–0.017 –0.042	23.622	5×3	6205	0.45
B206	235	0.196	1,800	350	150	28.0	62–0.017 –0.042	32.766	7×4	6206	0.68
B207	372	0.196	1,800	300	150	28.0	72–0.017 –0.042	42.088	7×4	6207	0.80
B208	549	0.196	1,800	200	150	32.0	80–0.017 –0.042	46.761	10×4.5	6208	0.91
B209	549	0.196	1,800	200	150	32.0	85–0.020 –0.045	46.761	10×4.5	6209	0.95
B210	784	0.294	1,200	200	150	32.0	90–0.020 –0.045	56.109	10×4.5	6210	1.00
B211	784	0.294	1,200	200	150	32.0	100–0.020 –0.050	56.109	10×4.5	6211	1.40
B212	1,230	0.294	1,200	180	150	42.0	110–0.020 –0.050	70.029	10×4.5	6212	1.80
B213	1,230	0.294	1,200	180	150	42.0	120–0.020 –0.050	70.029	10×4.5	6213	2.30
B214	1,390	0.392	1,000	180	150	42.0	125–0.024 –0.060	79.356	12×4.5	6214	2.40
