1671-294-10、1671-394-10、1671-393-10

Size	Accuracy class	Part numbers for runner blocks for preload class
		10 µm clearance	0.02 C
20/40	P		1671-812-10
	H	1671-893-10	1671-813-10
	N	1671-894-10	1671-814-10
25/70	P		1671-212-10
	H	1671-293-10	1671-213-10
	N	1671-294-10	1671-214-10
35/90	P		1671-312-10
	H	1671-393-10	1671-313-10
	N	1671-394-10	1671-314-10

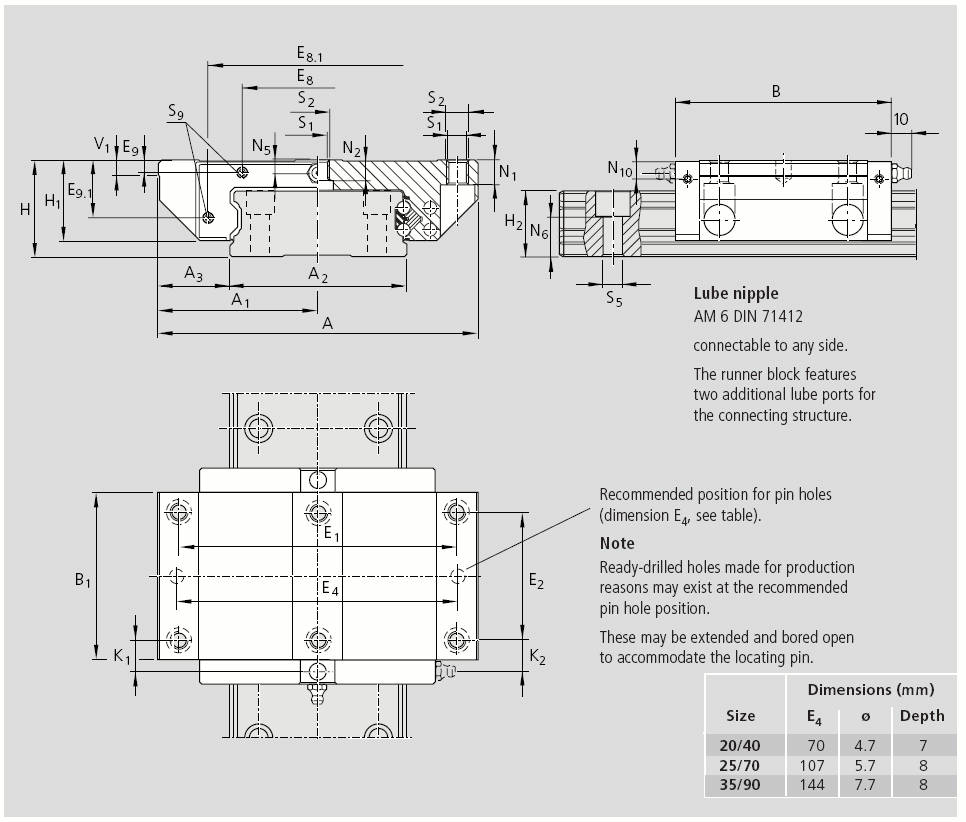

Dimensions (mm)
Size	A		A1		A2		A3		B		B1		H		H1	H2	V1		E1		E2	E8		E8.1		E9		E9.1	N1		N2	N5
20/40	80		40		42		19.0		73		52.0		27		23.5	19.05	6.0		70		40	36.0		57.5		3.55		15.5	7.7		3.7	4.0
25/70	120		60		69		25.5		105		79.5		35		30.0	23.40	7.5		107		60	70.2		90.7		5.6		20.3	9.0		7.0	5.5
35/90	162		81		90		36.0		142		113.6		50		42.5	32.00	8.0		144		80	79.0		116.0		6.8		29.9	14.0		12.0	9.0
Dimensions (mm)																		Mass (kg)		C dyn.			C0 stat.		Mt dyn.		Mt0 stat.			ML dyn.			ML0 stat.
Size		N60.5		N10		S1		S2		K1		K2		S9
20/40		13.2		5.5		5.4		M6		10.6		11.0		M2.5-3.5deep				0.45		15 600			24 100		370		640			116			200
25/70		14.4		8.0		6.4		M8		15.4		16.3		M3-5 deep				1.70		30 400*			45 500		1 130		1 690			345			510
35/90		20.5		9.0		8.4		M10		22.8		24.8		M3-5 deep				3.70		58 200*			86 300		2 880		4 270			920			1 370
