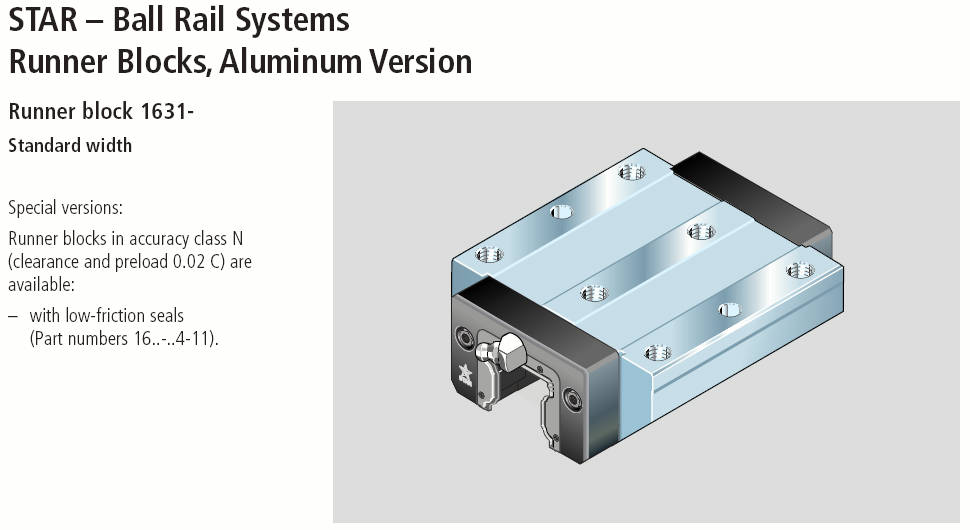

| 1631-194-10、1631-294-10、1631-794-10 |
|
上海川代轴承机械有限公司 新闻动态 2025-6-17
|
 |
|
Size |
Accuracy class |
Part numbers for runner blocks for preload class |
|
10 µm clearance |
0.02 C |
|
15 |
H |
1631-193-10 |
1631-113-10 |
|
N |
1631-194-10 |
1631-114-10 |
|
25 |
H |
1631-293-10 |
1631-213-10 |
|
N |
1631-294-10 |
1631-214-10 |
|
30 |
H |
1631-793-10 |
1631-713-10 |
|
N |
1631-794-10 |
1631-714-10 |
|
35 |
H |
1631-393-10 |
1631-313-10 |
|
N |
1631-394-10 |
1631-314-10 |
|
|
|
|

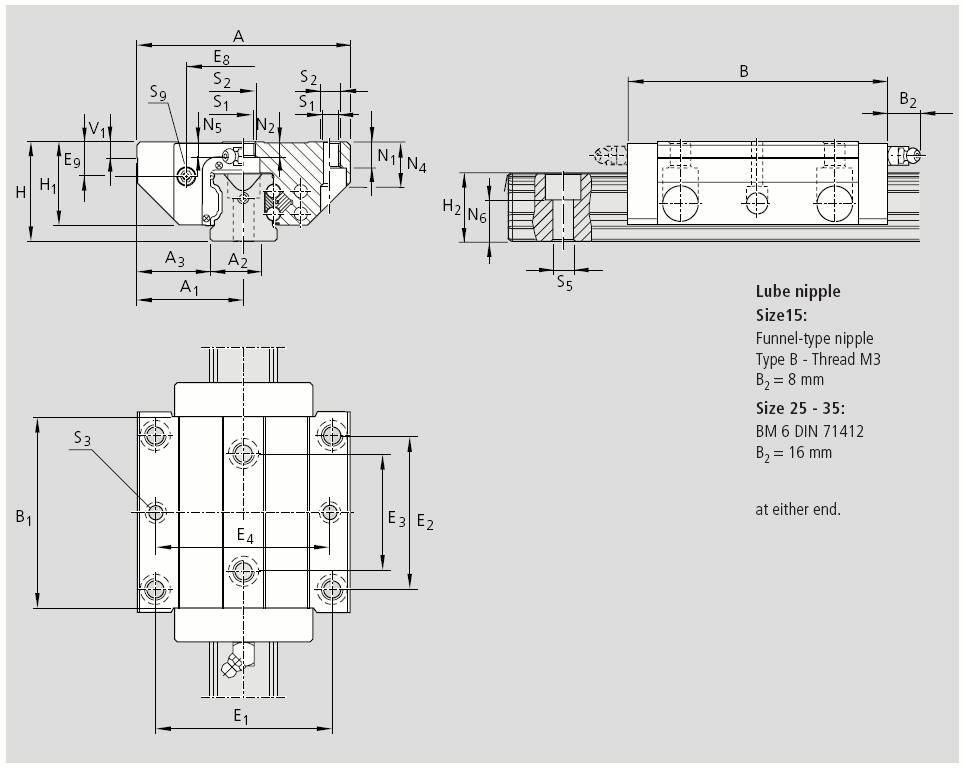

Size |
Dimensions (mm) |
|
|
A |
A1 |
A2 |
A3 |
B |
B1 |
H |
H1 |
H21) |
H22) |
V1 |
E1 |
E2 |
E3 |
E4 |
E8 |
E9 |
N1 |
N2 |
N4 |
|
|
15 |
47 |
23.5 |
15 |
16.0 |
54 |
39.2 |
24 |
19.8 |
16.3 |
16.20 |
5.0 |
38 |
30 |
26 |
38 |
24.55 |
6.7 |
5 |
4.4 |
10 |
|
|
25 |
70 |
35.0 |
23 |
23.5 |
81.0 |
57.8 |
36 |
29.5 |
24.4 |
24.25 |
7.5 |
57 |
45 |
40 |
55 |
38.3 |
11.5 |
9 |
7.0 |
18 |
|
|
30 |
90 |
45.0 |
28 |
31.0 |
94.0 |
67.4 |
42 |
35.0 |
28.5 |
28.35 |
7.0 |
72 |
52 |
44 |
70 |
48.4 |
14.6 |
11 |
8.0 |
18 |
|
|
35 |
100 |
50.0 |
34 |
33.0 |
105.0 |
77.0 |
48 |
40.0 |
32.15 |
31.85 |
8.0 |
82 |
62 |
52 |
80 |
58.0 |
17.5 |
12 |
10.2 |
21 |
|
|
Dimensions (mm) |
Mass
(kg) |
C
dyn. |
Fmax |
Mt
dyn. |
Mt
max. |
ML
dyn. |
ML
max. |
|
Size |
N5 |
N60.5 |
S1 |
S2 |
S3 |
S5 |
S9 |
|
15 |
4.0 |
10.3 |
4.4 |
M5 |
3.7 |
4.4 |
M2.5-3.5deep |
0.15 |
7 800 |
3 000 |
74 |
29 |
40 |
16 |
|
25 |
5.5 |
15.2 |
6.8 |
M8 |
5.7 |
7.0 |
M3-5 deep |
0.35 |
22 800 |
8 800 |
320 |
125 |
180 |
70 |
|
30 |
6.0 |
17.0 |
8.6 |
M10 |
7.7 |
9.0 |
M3-5 deep |
0.45 |
31 700 |
12 200 |
540 |
210 |
290 |
110 |
|
35 |
7.0 |
20.5 |
8.6 |
M10 |
7.7 |
9.0 |
M3-5 deep |
0.80 |
41 900 |
16 200 |
890 |
345 |
440 |
170 | |
