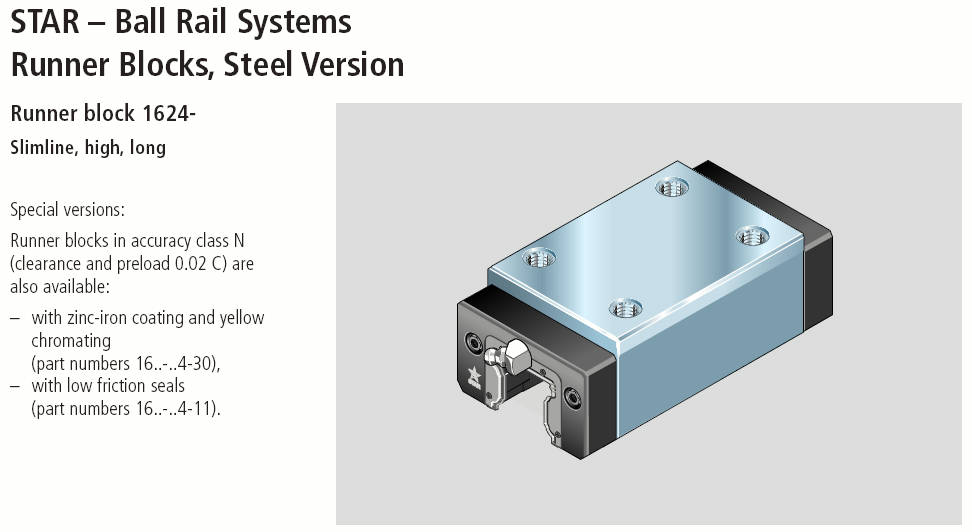

1624-293-10、1624-294-10、1624-793-10

Size

Accuracy class

Part numbers for runner blocks for preload class

up to approx.

10m clearance

Preload

0.02 C

Preload

0.08 C

Preload

0.13 C

25

P

1624-212-10

1624-222-10

1624-232-10

H

1624-293-10

1624-213-10

1624-223-10

N

1624-294-10

1624-214-10

1624-224-10

30

P

1624-712-10

1624-722-10

1624-732-10

H

1624-793-10

1624-713-10

1624-723-10

N

1624-794-10

1624-714-10

1624-724-10

35

P

1624-312-10

1624-322-10

1624-332-10

H

1624-393-10

1624-313-10

1624-323-10

N

1624-394-10

1624-314-10

1624-324-10

45

P

1624-412-10

1624-422-10

1624-432-10

H

1624-493-10

1624-413-10

1624-423-10

N

1624-494-10

1624-414-10

1624-424-10

55

P

1624-512-10*

1624-522-10*

1624-532-10*

H

1624-593-10*

1624-513-10*

1624-523-10*

N

1624-594-10*

1624-514-10*

1624-524-10*

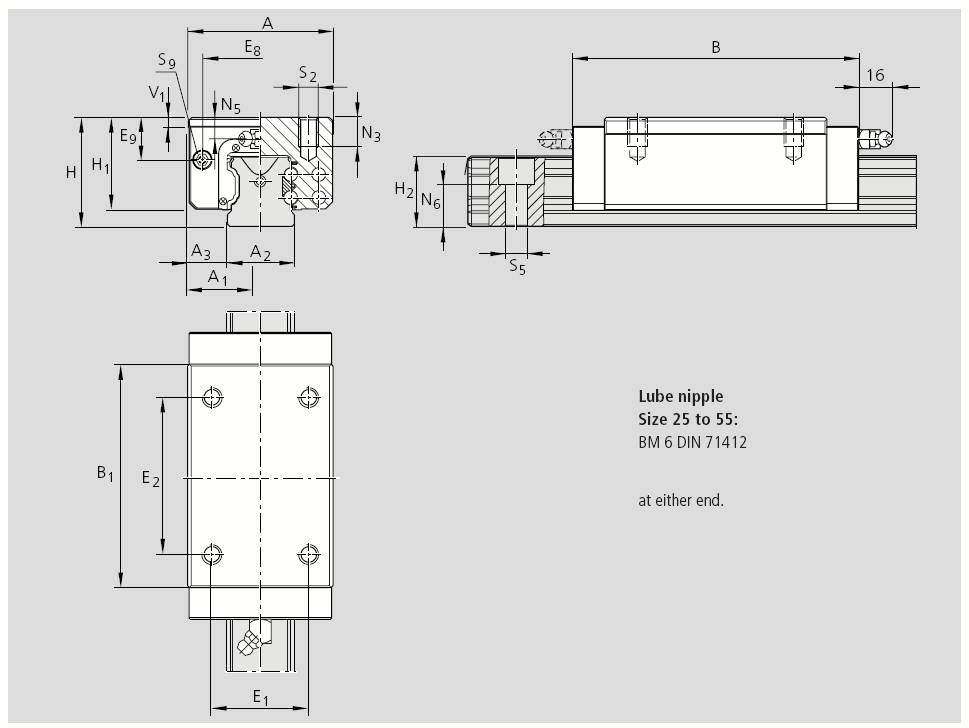

Dimensions (mm)

Size

A

A1

A2

A3

B

B1

H

H1

H21)

H22)

V1

E1

E2

E8

E9

N3

25

48

24

23

12.5

103

79.5

40

33.5

24.4

24.25

7.5

35

50

38.3

15.5

9

30

60

30

28

16.0

116

89.4

45

38.0

28.5

28.35

7.0

40

60

48.4

17.6

12

35

70

35

34

18.0

133

105.5

55

47.0

32.15

31.85

8.0

50

72

58.0

24.5

13

45

86

43

45

20.5

170

133.5

70

60.0

40.15

39.85

10.0

60

80

70.0

31.0

18

55

100

50

53

23.5

200

155.5

80

67.0

48.15

47.85

12.0

75

95

80.0

32.3

19
