| MI-22-4S、MI-24、MI-25-4S |
|
上海川代轴承机械有限公司 新闻动态 2025-11-1
|
|
|
|

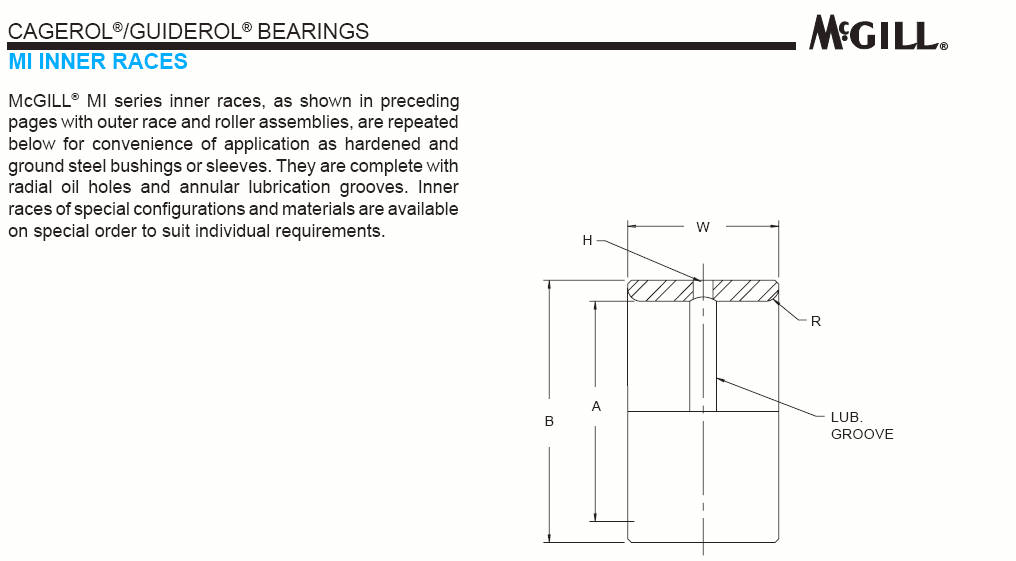

McGILL
INNER
RING
NUMBER |
MILITARY
STANDARD
NUMBER |
DIMENSIONS IN INCHES |
|
A BORE DIA. |
B INNER O.D. |
W WIDTH
+.000
-.005 |
H HOLE
DIA. |
R MAX.
FILLET
FOR SHAFT |
|
NOM. |
TOL.
+.0000 |
NOM. |
TOL.
+.0000 |
|
MI-22 |
MS 51962-19 |
1.3750 |
-.0005 |
1.7490 |
-.0006 |
1.260 |
1/8 |
.060 |
|
MI-22-4S |
MS 51962-18 |
1.3750 |
-.0005 |
1.6240 |
-.0006 |
1.260 |
1/8 |
.060 |
|
MI-23 |
MS 51962-20 |
1.4375 |
-.0005 |
1.7490 |
-.0006 |
1.260 |
1/8 |
.060 |
|
MI-24 |
MS 51962-22 |
1.5000 |
-.0005 |
1.7490 |
-.0006 |
1.260 |
1/8 |
.060 |
|
MI-24-N |
MS 51962-21 |
1.5000 |
-.0005 |
1.7490 |
-.0006 |
1.010 |
1/8 |
.060 |
|
MI-25 |
|
1.5625 |
-.0005 |
1.9989 |
-.0007 |
1.260 |
1/8 |
.060 |
|
MI-25-4S |
|
1.5625 |
-.0005 |
1.8740 |
-.0006 |
1.260 |
1/8 |
.060 |
|
MI-26 |
MS 51962-23 |
1.6250 |
-.0005 |
1.9989 |
-.0007 |
1.260 |
1/8 |
.060 |
|
MI-26-2S |
|
1.6250 |
-.0005 |
1.9364 |
-.0007 |
1.260 |
1/8 |
.060 |
|
MI-26-N |
|
1.6250 |
-.0005 |
1.9989 |
-.0007 |
1.010 |
1/8 |
.060 |
|
MI-27 |
|
1.6875 |
-.0005 |
1.9989 |
-.0007 |
1.260 |
1/8 |
.060 |
|
MI-28 |
MS 51962-25 |
1.7500 |
-.0005 |
2.2489 |
-.0007 |
1.760 |
3/16 |
.060 |
|
MI-28-N |
MS 51962-24 |
1.7500 |
-.0005 |
2.2489 |
-.0007 |
1.510 |
3/16 |
.060 |
|
MI-30 |
|
1.8750 |
-.0005 |
2.2489 |
-.0007 |
1.760 |
3/16 |
.060 |
|
MI-31 |
MS 51962-26 |
1.9375 |
-.0005 |
2.4989 |
-.0007 |
1.760 |
3/16 |
.080 |
|
MI-32 |
|
2.0000 |
-.0005 |
2.4989 |
-.0007 |
1.760 |
3/16 |
.080 |
|
MI-32-N |
MS 51962-27 |
2.0000 |
-.0005 |
2.4989 |
-.0007 |
1.510 |
3/16 |
.080 |
|
MI-34 |
|
2.1250 |
-.0006 |
2.4989 |
-.0007 |
1.760 |
3/16 |
.080 |
|
MI-35 |
MS 51962-28 |
2.1875 |
-.0006 |
2.7489 |
-.0007 |
1.760 |
3/16 |
.080 |
|
MI-36 |
|
2.2500 |
-.0006 |
2.7489 |
-.0007 |
1.760 |
3/16 |
.080 |
|
MI-36-N |
MS 51962-29 |
2.2500 |
-.0006 |
2.7489 |
-.0007 |
1.510 |
3/16 |
.080 |
|
MI-38 |
MS 51962-30 |
2.3750 |
-.0006 |
2.9989 |
-.0007 |
1.760 |
3/16 |
.080 |
|
MI-39 |
|
2.4375 |
-.0006 |
2.9989 |
-.0007 |
1.760 |
3/16 |
.080 |
|
MI-40 |
|
2.5000 |
-.0006 |
2.9989 |
-.0007 |
1.760 |
3/16 |
.080 |
|
MI-40-N |
MS 51962-31 |
2.5000 |
-.0006 |
2.9989 |
-.0007 |
1.510 |
3/16 |
.080 |
|
MI-42 |
|
2.6250 |
-.0006 |
3.2487 |
-.0009 |
1.760 |
3/16 |
.080 |
|
MI-44 |
MS 51962-32 |
2.7500 |
-.0006 |
3.2487 |
-.0009 |
1.760 |
3/16 |
.080 |
|
MI-46 |
|
2.8750 |
-.0006 |
3.4987 |
-.0009 |
2.010 |
1/4 |
.080 |
|
MI-47 |
MS 51962-34 |
2.9375 |
-.0006 |
3.4987 |
-.0009 |
2.010 |
1/4 |
.080 |
|
MI-48 |
|
3.0000 |
-.0006 |
3.4987 |
-.0009 |
2.010 |
1/4 |
.080 |
|
MI-48-N |
|
3.0000 |
-.0006 |
3.4987 |
-.0009 |
1.760 |
1/4 |
.080 |
|
MI-50 |
MS 51962-35 |
3.1250 |
-.0006 |
3.7487 |
-.0009 |
2.010 |
1/4 |
.100 |
|
MI-52 |
MS 51962-36 |
3.2500 |
-.0006 |
3.7487 |
-.0009 |
2.010 |
1/4 |
.100 |
|
MI-54 |
MS 51962-38 |
3.3750 |
-.0008 |
3.9985 |
-.0009 |
2.010 |
1/4 |
.100 |
|
MI-56 |
|
3.5000 |
-.0008 |
3.9985 |
-.0009 |
2.010 |
1/4 |
.100 |
|
MI-58 |
|
3.6250 |
-.0008 |
4.2485 |
-.0009 |
2.010 |
1/4 |
.100 |
|
MI-60 |
MS 51962-40 |
3.7500 |
-.0008 |
4.2485 |
-.0009 |
2.010 |
1/4 |
.100 |
|
MI-62 |
|
3.8750 |
-.0008 |
4.4985 |
-.0009 |
2.260 |
1/4 |
.100 |
|
MI-64 |
|
4.0000 |
-.0008 |
4.9985 |
-.0010 |
2.260 |
1/4 |
.100 |
|
MI-68 |
|
4.2500 |
-.0008 |
4.9985 |
-.0010 |
2.260 |
1/4 |
.100 |
|
MI-72 |
MS 51962-44 |
4.5000 |
-.0008 |
5.4985 |
-.0010 |
3.015 |
1/4 |
.100 |
|
MI-72-N |
MS 51962-43 |
4.5000 |
-.0008 |
5.4985 |
-.0010 |
2.515 |
1/4 |
.100 |
|
MI-80 |
MS 51962-47 |
5.0000 |
-.0010 |
5.9983 |
-.0010 |
3.015 |
5/16 |
.120 |
|
MI-80-N |
MS 51962-46 |
5.0000 |
-.0010 |
5.9983 |
-.0010 |
2.515 |
5/16 |
.120 |
|
MI-88 |
MS 51962-49 |
5.5000 |
-.0010 |
6.4983 |
-.0010 |
3.015 |
5/16 |
.120 |
|
MI-88-N |
MS 51962-48 |
5.5000 |
-.0010 |
6.4983 |
-.0010 |
2.515 |
5/16 |
.120 |
|
MI-96 |
MS 51962-50 |
6.0000 |
-.0010 |
7.2481 |
-.0012 |
3.015 |
5/16 |
.120 |
|
MI-104 |
|
6.5000 |
-.0010 |
7.7481 |
-.0012 |
3.015 |
5/16 |
.120 |
|
MI-112 |
|
7.0000 |
-.0010 |
8.2481 |
-.0012 |
3.015 |
5/16 |
.120 |
|
MI-120 |
|
7.5000 |
-.0012 |
8.7480 |
-.0012 |
3.015 |
5/16 |
.160 |
|
MI-128 |
|
8.0000 |
-.0012 |
9.2480 |
-.0012 |
3.015 |
5/16 |
.160 | |
