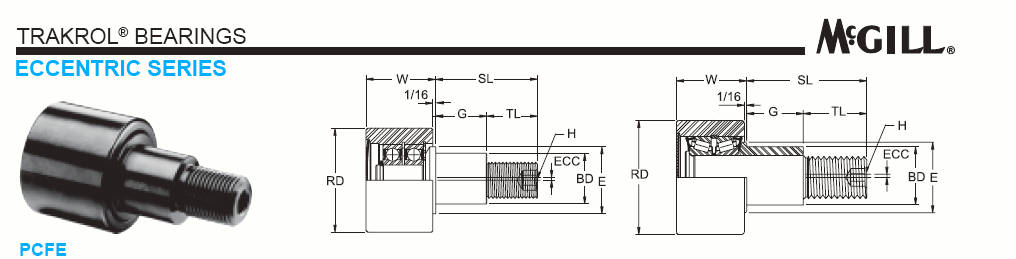

BRG. NO.

ROLLER

DIA.

(RD)

WIDTH

(W)

MIN.

THREAD LENGTH

(TL)

FINE

THREADS

STUD

LENGTH

(SL)

ECCENTRIC

DIA. (BD)

+.001

-.001

ECCENTRIC

LENGTH (G)

+.000

-.010

ECCENTRIC

(ECC)

HEX

SOCKET

(H)

SHOULDER

DIAMETER

(E)

RADIAL

BASIC DYNAMIC RATING (LBS)

DYNAMIC

THRUST LOAD RATING (LBS)

MAX.

STATIC CAPACITY

(LBS)

PCFE-1 1/2

1.500

1 3/16

.770

5/8-18

1 1/2

0.875

.730

.030

1/4

1 1/8

2520

1320

1370

PCFE-1 3/4

1.750

1 3/16

.895

3/4-16

1 3/4

1.000

.855

.030

1/4

1 1/4

2520

1320

1370

PCFE-2

2.000

1 11/16

1.020

7/8-14

2

1.187

.980

.030

3/8

1 1/2

3490

1830

2000

PCFE-2 1/4

2.250

1 11/16

1.020

7/8-14

2

1.187

.980

.030

3/8

1 1/2

3490

1830

2000

PCFE-2 1/2

2.500

1 11/16

1.145

1-14

2 1/4

1.375

1.105

.030

7/16

1 11/16

5120

2680

3120

PCFE-2 3/4

2.750

1 11/16

1.145

1-14

2 1/4

1.375

1.105

.030

7/16

1 11/16

5120

2680

3120

PCFE-3

3.000

2

1.270

1 1/4-12

2 1/2

1.750

1.230

.060

7/16

2 5/16

14300

5790

16000

PCFE-3 1/4

3.250

2

1.270

1 1/4-12

2 1/2

1.750

1.230

.060

7/16

2 5/16

14300

5790

16000

PCFE-3 1/2

3.500

2

1.395

1 1/4-12

2 3/4

1.812

1.355

.060

7/16

2 5/16

14300

5790

16000

PCFE-4

4.000

2

1.395

1 1/4-12

2 3/4

1.812

1.355

.060

7/16

2 5/16

14300

5790

16000
