| MCFR-26A、MCFR-22A-S、MCFR-26 |
|
上海川代轴承机械有限公司 新闻动态 2026-3-18
|
|
|
|

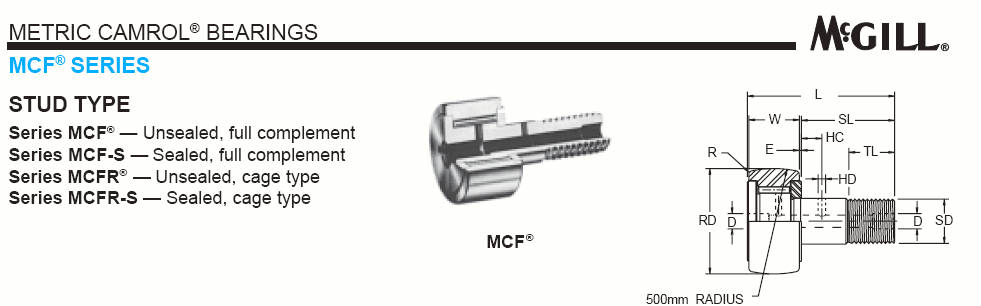

UNSEALED BRG. NO.
(1) |
SEALED BRG. NO.
(1) |
ROLLER DIA. RD NOM.
(2) |
ROLLER WIDTH W
+0.00
-0.12 |
STUD DIA. SD
NOM. (3) |
STUD L’GTH. SL NOM. |
OVERALL LENGTH L
NOM. |
ENDPLATE EXTENSION
E
NOM. |
THREAD |
THREAD LENGTH TL
MIN. |
OIL HOLE |
|
(HC) NOM. |
(HD) NOM. |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
MCFR-13 |
MCFR-13-S |
13 |
9 |
5 |
13 |
23 |
0.6 |
M5x0.8 |
7.5 |
- |
- |
|
MCFR-16 MCF-16 |
MCFR-16-S MCF-16-S |
16 |
11 |
6 |
16 |
28 |
0.6 |
M6x1 |
9 |
- |
- |
|
MCFR-19 MCF-19 |
MCFR-19-S MCF-19-S |
19 |
11 |
8 |
20 |
32 |
0.6 |
M8x1.25 |
11 |
- |
- |
|
MCFR-22 MCF-22 |
MCFR-22-S MCF-22-S |
22 |
12 |
10 |
23 |
36 |
0.6 |
M10x1 |
12 |
- |
- |
|
MCFR-22A MCF-22A |
MCFR-22A-S MCF-22A-S |
22 |
12 |
10 |
23 |
36 |
0.6 |
M10x1.25 |
13 |
- |
- |
|
MCFR-26 MCF-26 |
MCFR-26-S MCF-26-S |
26 |
12 |
10 |
23 |
36 |
0.6 |
M10x1 |
12 |
- |
- |
|
MCFR-26A MCF-26A |
MCFR-26A-S MCF-26A-S |
26 |
12 |
10 |
23 |
36 |
0.6 |
M10x1.25 |
13 |
- |
- |
|
MCFR-30 MCF-30 |
MCFR-30-S MCF-30-S |
30 |
14 |
12 |
25 |
40 |
0.6 |
M12x1.5 |
14 |
6 |
3 |
|
MCFR-32 MCF-32 |
MCFR-32-S MCF-32-S |
32 |
14 |
12 |
25 |
40 |
0.6 |
M12x1.5 |
14 |
6 |
3 |
|
MCFR-35 MCF-35 |
MCFR-35-S MCF-35-S |
35 |
18 |
16 |
32.5 |
52 |
0.8 |
M16x1.5 |
18 |
8 |
3 |
|
MCFR-40 MCF-40 |
MCFR-40-S MCF-40-S |
40 |
20 |
18 |
36.5 |
58 |
0.8 |
M18x1.5 |
19 |
8 |
3 |
|
MCFR-40A MCF-40A |
MCFR-40A-S MCF-40A-S |
40 |
20 |
18 |
36.5 |
58 |
0.8 |
M18x1.5 |
20 |
10 |
3 |
|
MCFR-47 MCF-47 |
MCFR-47-S MCF-47-S |
47 |
24 |
20 |
40.5 |
66 |
0.8 |
M20x1.5 |
21 |
9 |
4 |
|
MCFR-47A MCF-47A |
MCFR-47A-S MCF-47A-S |
47 |
24 |
20 |
40.5 |
66 |
0.8 |
M20x1.5 |
22 |
12 |
4 |
|
MCFR-52 MCF-52 |
MCFR-52-S MCF-52-S |
52 |
24 |
20 |
40.5 |
66 |
0.8 |
M20x1.5 |
21 |
9 |
4 |
|
MCFR-52A MCF-52A |
MCFR-52A-S MCF-52A-S |
52 |
24 |
20 |
40.5 |
66 |
0.8 |
M20x1.5 |
22 |
12 |
4 |
|
MCFR-62 MCF-62 |
MCFR-62-S MCF-62-S |
62 |
29 |
24 |
49.5 |
80 |
0.8 |
M24x1.5 |
25 |
11 |
4 |
|
MCFR-62A MCF-62A |
MCFR-62A-S MCF-62A-S |
62 |
29 |
24 |
49.5 |
80 |
0.8 |
M24x1.5 |
25 |
12 |
4 |
|
MCFR-72 MCF-72 |
MCFR-72-S MCF-72-S |
72 |
29 |
24 |
49.5 |
80 |
0.8 |
M24x1.5 |
25 |
11 |
4 |
|
MCFR-72A MCF-72A |
MCFR-72A-S MCF-72A-S |
72 |
29 |
24 |
49.5 |
80 |
0.8 |
M24x1.5 |
25 |
12 |
4 |
|
MCFR-80 MCF-80 |
MCFR-80-S MCF-80-S |
80 |
35 |
30 |
63 |
100 |
1 |
M30x1.5 |
32 |
15 |
4 |
|
MCFR-85 MCF-85 |
MCFR-85-S MCF-85-S |
85 |
35 |
30 |
63 |
100 |
1 |
M30x1.5 |
32 |
15 |
4 |
|
MCFR-90 MCF-90 |
MCFR-90-S MCF-90-S |
90 |
35 |
30 |
63 |
100 |
1 |
M30x1.5 |
32 |
15 |
4 | |
MCFR-26A、MCFR-22A-S、MCFR-26现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
29416R ,
AZK70X94.5X4,
CF12UUR,
H2338,
RASE35N,
3MMVC9113HXVVSULFS637,
K30X42X30H.ZB2,
SDM10LY,
RBL12BD,
R165182920,
TK095-SP65-500-15T,
TKP0350W16H-MW-PIA,
3MMV9113HXCRSUL,
033216 F4B-LT10-208,
131102 F4B-SXR-010,
KHPFL205A,
CSK30-2RS,
CR 12640,
CR 7455,
NUKRU 180/3AS,
N-320-E,
22334 EMKW33C3,
67389/67322D/X3S-67389,
SHS25LC,
LM406080AJ,
CYR-2 1/4-S,
23220E1A.M.C4,
PKB224M45FH轴径45(in),
MA5312TV,
CZSB1917EDUL O-11 P2PF 27480,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008进行详细查询，谢谢！
