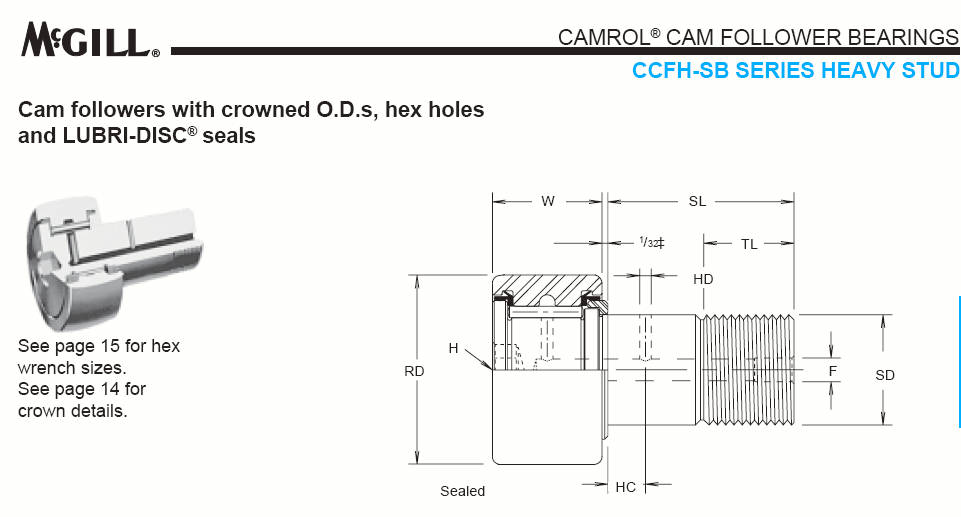

BRG. NO.

ROLLER DIA. (RD)

+.000

-.001

ROLLER WIDTH (W)

+.000

-.005

STUD DIA. (SD)

+.001

-.000

STUD L’GTH.

(SL)

MIN. THR’D L’GTH.

(TL)

FINE THR’DS.

OIL HOLE

LUB. FIT- TING SIZE (F)

MIN. BOSS DIA.

HOUSING BORE DIA.

+.0002

-.0003

RECOM. CLAMPING TORQUE

LBS.-IN.

MAX.

 STATIC CAPACITY LBS.

BASIC DYN. RATING LBS.

HOLE CENTER (HC)

HOLE DIA. (HD)

CCFH-1/2-SB

.500

.375

.250

5/8

1/4

1/4-28

-

-

-

13/32

.2503

35

1580

680

CCFH-9/16-SB

.5625

.375

.250

5/8

1/4

1/4-28

-

-

-

13/32

.2503

35

1580

680

CCFH-5/8-SB

.625

.4375

.3125

3/4

5/16

5/16-24

-

-

-

15/32

.3128

90

2480

955

CCFH-11/16-SB

.6875

.4375

.3125

3/4

5/16

5/16-24

-

-

-

15/32

.3128

90

2480

955

CCFH-3/4-SB

.750

.500

.4375

7/8

3/8

7/16-20

1/4

3/32

3/16

39/64

.4378

250

4130

1660

CCFH-7/8-SB

.875

.500

.4375

7/8

3/8

7/16-20

1/4

3/32

3/16

39/64

.4378

250

4130

1660

CCFH-1-SB

1.000

.625

.625

1

1/2

5/8-18

1/4

3/32

3/16

25/32

.6253

650

6120

2225

CCFH-1 1/8-SB

1.125

.625

.625

1

1/2

5/8-18

1/4

3/32

3/16

25/32

.6253

650

6120

2225

CCFH-1 1/4-SB

1.250

.750

.750

1 1/4

5/8

3/4-16

5/16

3/32

3/16

63/64

.7503

1250

8500

3930

CCFH-1 3/8-SB

1.375

.750

.750

1 1/4

5/8

3/4-16

5/16

3/32

3/16

63/64

.7503

1250

8500

3930

CCFH-1 1/2-SB

1.500

.875

.875

1 1/2

3/4

7/8-14

3/8

3/32

3/16

1 3/32

.8753

1500

11280

4840

CCFH-1 5/8-SB

1.625

.875

.875

1 1/2

3/4

7/8-14

3/8

3/32

3/16

1 3/32

.8753

1500

11280

4840

CCFH-1 3/4-SB

1.750

1.000

1.000

1 3/4

7/8

1-14

7/16

3/32

3/16

1 1/4

1.0003

2250

15840

6385

CCFH-1 7/8-SB

1.875

1.000

1.000

1 3/4

7/8

1-14

7/16

3/32

3/16

1 1/4

1.0003

2250

15840

6385

CCFH-2-SB

2.000

1.250

1.125

2

1

1 1/8-12

1/2

1/8

3/16

1 13/32

1.1253

2800

21140

8090

CCFH-2 1/4-SB

2.250

1.250

1.125

2

1

1 1/8-12

1/2

1/8

3/16

1 13/32

1.1253

2800

21140

8090

CCFH-2 1/2-SB

2.500

1.500

1.250

2 1/4

1 1/8

1 1/4-12

9/16

1/8

3/16

1 11/16

1.2503

3450

32900

11720

CCFH-2 3/4-SB

2.750

1.500

1.250

2 1/4

1 1/8

1 1/4-12

9/16

1/8

3/16

1 11/16

1.2503

3450

32900

11720

CCFH-3-SB

3.000

1.750

1.500

2 1/2

1 1/4

1 1/2-12

5/8

1/8

① 1/4

2 1/8

1.5003

5000

49820

15720

CCFH-3 1/4-SB

3.250

1.750

1.500

2 1/2

1 1/4

1 1/2-12

5/8

1/8

① 1/4

2 1/8

1.5003

5000

49820

15720

CCFH-3 1/2-SB

3.500

2.000

1.750

2 3/4

1 3/8

1 3/4-12

11/16

1/8

① 1/4

2 7/16

1.7503

5000

63250

22800

CCFH-4-SB

4.000

2.250

2.000

3 1/2

1 1/2

2-12

3/4

1/8

① 1/4

2 51/64

2.0003

5000

89540

29985
