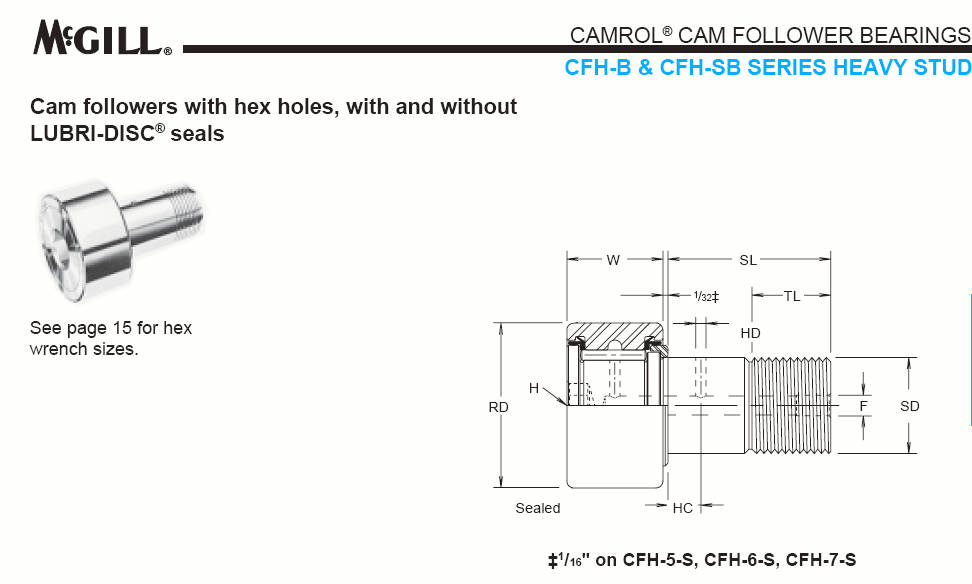

| CFH-9/16-B、CFH-7/8-B、CFH-1 1/2-SB |
|
上海川代轴承机械有限公司 新闻动态 2025-5-1
|
|
|
|
UNSEALED BRG. NO. |
SEALED BRG. NO. |
ROLLER DIA. (RD)
+.000
-.001 |
ROLLER WIDTH (W)
+.000
-.005 |
STUD DIA. (SD)
+.001
-.000 |
STUD L’GTH.
(SL) |
MIN. THR’D.
L’GTH.
(TL) |
FINE THR’DS. |
OIL HOLE |
LUB. FIT- TING SIZE (F) |
MIN. BOSS DIA. |
HOUSING BORE DIA.
+.0002
-.0003 |
RECOM. CLAMPING TORQUE LBS.-
IN. |
MAX. STATIC CAPACITY LBS. |
BASIC DYN. RATING LBS. |
|
HOLE CENTER (HC) |
HOLE DIA. (HD) |
|
CFH-1/2-B |
CFH-1/2-SB |
.500 |
.375 |
.250 |
5/8 |
1/4 |
1/4-28 |
- |
- |
- |
13/32 |
.2503 |
35 |
1580 |
680 |
|
CFH-9/16-B |
CFH-9/16-SB |
.5625 |
.375 |
.250 |
5/8 |
1/4 |
1/4-28 |
- |
- |
- |
13/32 |
.2503 |
35 |
1580 |
680 |
|
CFH-5/8-B |
CFH-5/8-SB |
.625 |
.4375 |
.3125 |
3/4 |
5/16 |
5/16-24 |
- |
- |
- |
15/32 |
.3128 |
90 |
2480 |
955 |
|
CFH-11/16-B |
CFH-11/16-SB |
.6875 |
.4375 |
.3125 |
3/4 |
5/16 |
5/16-24 |
- |
- |
- |
15/32 |
.3128 |
90 |
2480 |
955 |
|
CFH-3/4-B |
CFH-3/4-SB |
.750 |
.500 |
.4375 |
7/8 |
3/8 |
7/16-20 |
1/4 |
3/32 |
3/16 |
39/64 |
.4378 |
250 |
4130 |
1660 |
|
CFH-7/8-B |
CFH-7/8-SB |
.875 |
.500 |
.4375 |
7/8 |
3/8 |
7/16-20 |
1/4 |
3/32 |
3/16 |
39/64 |
.4378 |
250 |
4130 |
1660 |
|
CFH-1-B |
CFH-1-SB |
1.000 |
.625 |
.625 |
1 |
1/2 |
5/8-18 |
1/4 |
3/32 |
3/16 |
25/32 |
.6253 |
650 |
6120 |
2225 |
|
CFH-1 1/8-B |
CFH-1 1/8-SB |
1.125 |
.625 |
.625 |
1 |
1/2 |
5/8-18 |
1/4 |
3/32 |
3/16 |
25/32 |
.6253 |
650 |
6120 |
2225 |
|
CFH-1 1/4-B |
CFH-1 1/4-SB |
1.250 |
.750 |
.750 |
1 1/4 |
5/8 |
3/4-16 |
5/16 |
3/32 |
3/16 |
63/64 |
.7503 |
1250 |
8500 |
3930 |
|
CFH-1 3/8-B |
CFH-1 3/8-SB |
1.375 |
.750 |
.750 |
1 1/4 |
5/8 |
3/4-16 |
5/16 |
3/32 |
3/16 |
63/64 |
.7503 |
1250 |
8500 |
3930 |
|
CFH-1 1/2-B |
CFH-1 1/2-SB |
1.500 |
.875 |
.875 |
1 1/2 |
3/4 |
7/8-14 |
3/8 |
3/32 |
3/16 |
1 3/32 |
.8753 |
1500 |
11280 |
4840 |
|
CFH-1 5/8-B |
CFH-1 5/8-SB |
1.625 |
.875 |
.875 |
1 1/2 |
3/4 |
7/8-14 |
3/8 |
3/32 |
3/16 |
1 3/32 |
.8753 |
1500 |
11280 |
4840 |
|
CFH-1 3/4-B |
CFH-1 3/4-SB |
1.750 |
1.000 |
1.000 |
1 3/4 |
7/8 |
1-14 |
7/16 |
3/32 |
3/16 |
1 1/4 |
1.0003 |
2250 |
15840 |
6385 |
|
CFH-1 7/8-B |
CFH-1 7/8-SB |
1.875 |
1.000 |
1.000 |
1 3/4 |
7/8 |
1-14 |
7/16 |
3/32 |
3/16 |
1 1/4 |
1.0003 |
2250 |
15840 |
6385 |
|
CFH-2-B |
CFH-2-SB |
2.000 |
1.250 |
1.125 |
2 |
1 |
1 1/8-12 |
1/2 |
1/8 |
3/16 |
1 13/32 |
1.1253 |
2800 |
21140 |
8090 |
|
CFH-2 1/4-B |
CFH-2 1/4-SB |
2.250 |
1.250 |
1.125 |
2 |
1 |
1 1/8-12 |
1/2 |
1/8 |
3/16 |
1 13/32 |
1.1253 |
2800 |
21140 |
8090 |
|
CFH-2 1/2-B |
CFH-2 1/2-SB |
2.500 |
1.500 |
1.250 |
2 1/4 |
1 1/8 |
1 1/4-12 |
9/16 |
1/8 |
3/16 |
1 11/16 |
1.2503 |
3450 |
32900 |
11720 |
|
CFH-2 3/4-B |
CFH-2 3/4-SB |
2.750 |
1.500 |
1.250 |
2 1/4 |
1 1/8 |
1 1/4-12 |
9/16 |
1/8 |
3/16 |
1 11/16 |
1.2503 |
3450 |
32900 |
11720 |
|
CFH-3-B |
CFH-3-SB |
3.000 |
1.750 |
1.500 |
2 1/2 |
1 1/4 |
1 1/2-12 |
5/8 |
1/8 |
① 1/4 |
2 1/8 |
1.5003 |
5000 |
49820 |
15720 |
|
CFH-3 1/4-B |
CFH-3 1/4-SB |
3.250 |
1.750 |
1.500 |
2 1/2 |
1 1/4 |
1 1/2-12 |
5/8 |
1/8 |
① 1/4 |
2 1/8 |
1.5003 |
5000 |
49820 |
15720 |
|
CFH-3 1/2-B |
CFH-3 1/2-SB |
3.500 |
2.000 |
1.750 |
2 3/4 |
1 3/8 |
1 3/4-12 |
11/16 |
1/8 |
① 1/4 |
2 7/16 |
1.7503 |
5000 |
63250 |
22800 |
|
CFH-4-B |
CFH-4-SB |
4.000 |
2.250 |
2.000 |
3 1/2 |
1 1/2 |
2-12 |
3/4 |
1/8 |
① 1/4 |
2 51/64 |
2.0003 |
5000 |
89540 |
29985 | |
CFH-9/16-B、CFH-7/8-B、CFH-1 1/2-SB现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
