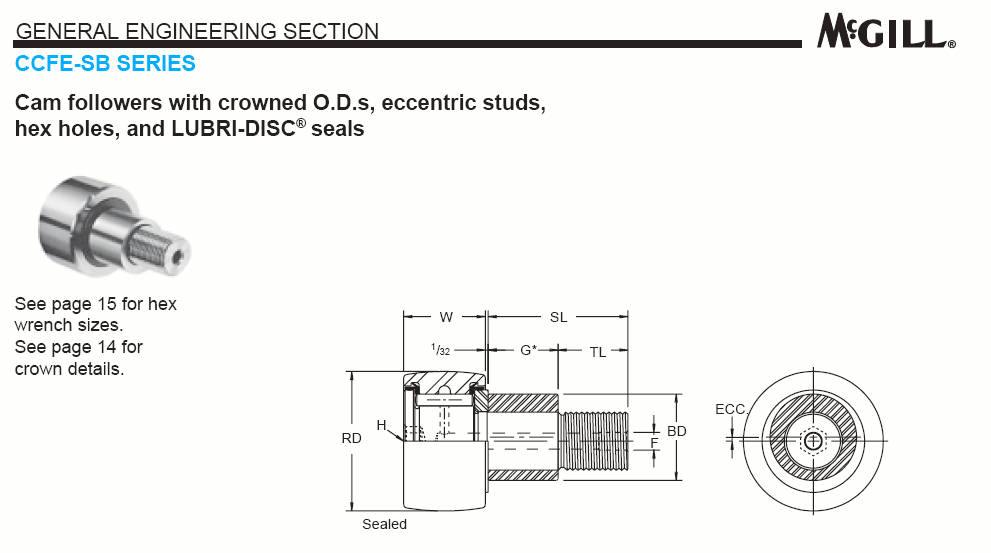

| CCFE-5/8-SB、CCFE-1/2-SB、CCFE-3/4-SB |
|
上海川代轴承机械有限公司 新闻动态 2025-6-16
|
|
|
|
BRG. NO. |
ROLLER DIA. (RD)
+.000
-.001 |
ROLLER WIDTH (W)
+.000
-.005 |
BUSH. L’GTH.
(G*)
+.000
-.010 |
BUSH. DIA. (BD)
±.001 |
STUD L’GTH.
(SL) |
MIN. THR’D L’GTH.
(TL) |
FINE THR’DS. |
ECC. |
LUB.
FIT-
TING SIZE (F) |
RECOM. CLAMPING TORQUE
LBS.-
IN. |
MAX.
STATIC CAPACITY LBS. |
BASIC
DYN. RATING LBS. |
|
CCFE-1/2-N-SB |
.500 |
.344 |
.250 |
.250 |
1/2 |
1/4 |
10-32 |
.010 |
- |
15 |
720 |
620 |
|
CCFE-1/2-SB |
.500 |
.375 |
.375 |
.250 |
5/8 |
1/4 |
10-32 |
.010 |
- |
15 |
790 |
680 |
|
CCFE-9/16-SB |
.5625 |
.375 |
.375 |
.250 |
5/8 |
1/4 |
10-32 |
.010 |
- |
15 |
790 |
680 |
|
CCFE-5/8-SB |
.625 |
.4375 |
.437 |
.375 |
3/4 |
5/16 |
1/4-28 |
.015 |
- |
35 |
1215 |
955 |
|
CCFE-11/16-SB |
.6875 |
.4375 |
.437 |
.375 |
3/4 |
5/16 |
1/4-28 |
.015 |
- |
35 |
1215 |
955 |
|
CCFE-3/4-SB |
.750 |
.500 |
.500 |
.500 |
7/8 |
3/8 |
3/8-24 |
.015 |
3/16 |
95 |
2065 |
1660 |
|
CCFE-7/8-SB |
.875 |
.500 |
.500 |
.500 |
7/8 |
3/8 |
3/8-24 |
.015 |
3/16 |
95 |
2065 |
1660 |
|
CCFE-1-SB |
1.000 |
.625 |
.500 |
.625 |
1 |
1/2 |
7/16-20 |
.030 |
3/16 |
250 |
3060 |
2225 |
|
CCFE-1 1/8-SB |
1.125 |
.625 |
.500 |
.625 |
1 |
1/2 |
7/16-20 |
.030 |
3/16 |
250 |
3060 |
2225 |
|
CCFE-1 1/4-SB |
1.250 |
.750 |
.625 |
.687 |
1 1/4 |
5/8 |
1/2-20 |
.030 |
3/16 |
350 |
4250 |
3930 |
|
CCFE-1 3/8-SB |
1.375 |
.750 |
.625 |
.687 |
1 1/4 |
5/8 |
1/2-20 |
.030 |
3/16 |
350 |
4250 |
3930 |
|
CCFE-1 1/2-SB |
1.500 |
.875 |
.750 |
.875 |
1 1/2 |
3/4 |
5/8-18 |
.030 |
3/16 |
650 |
5640 |
4840 |
|
CCFE-1 5/8-SB |
1.625 |
.875 |
.750 |
.875 |
1 1/2 |
3/4 |
5/8-18 |
.030 |
3/16 |
650 |
5640 |
4840 |
|
CCFE-1 3/4-SB |
1.750 |
1.000 |
.875 |
1.000 |
1 3/4 |
7/8 |
3/4-16 |
.030 |
3/16 |
1250 |
7920 |
6385 |
|
CCFE-1 7/8-SB |
1.875 |
1.000 |
.875 |
1.000 |
1 3/4 |
7/8 |
3/4-16 |
.030 |
3/16 |
1250 |
7920 |
6385 |
|
CCFE-2-SB |
2.000 |
1.250 |
1.000 |
1.187 |
2 |
1 |
7/8-14 |
.030 |
3/16 |
1500 |
10570 |
8090 |
|
CCFE-2 1/4-SB |
2.250 |
1.250 |
1.000 |
1.187 |
2 |
1 |
7/8-14 |
.030 |
3/16 |
1500 |
10570 |
8090 |
|
CCFE-2 1/2-SB |
2.500 |
1.500 |
1.125 |
1.375 |
2 1/4 |
1 1/8 |
1-14 |
.030 |
3/16 |
2250 |
16450 |
11720 |
|
CCFE-2 3/4-SB |
2.750 |
1.500 |
1.125 |
1.375 |
2 1/4 |
1 1/8 |
1-14 |
.030 |
3/16 |
2250 |
16450 |
11720 |
|
CCFE-3-SB |
3.000 |
1.750 |
1.250 |
1.750 |
2 1/2 |
1 1/4 |
1 1/4-12 |
.060 |
① |
1/4 |
3450 |
24910 |
15720 |
|
CCFE-3 1/4-SB |
3.250 |
1.750 |
1.250 |
1.750 |
2 1/2 |
1 1/4 |
1 1/4-12 |
.060 |
① |
1/4 |
3450 |
24910 |
15720 |
|
CCFE-3 1/2-SB |
3.500 |
2.000 |
1.375 |
1.812 |
2 3/4 |
1 3/8 |
1 3/8-12 |
.060 |
① |
1/4 |
4200 |
31625 |
22800 |
|
CCFE-4-SB |
4.000 |
2.250 |
2.000 |
2.000 |
3 1/2 |
1 1/2 |
1 1/2-12 |
.060 |
① |
1/4 |
5000 |
44770 |
29985 |
|
CCFE-5/8-SB、CCFE-1/2-SB、CCFE-3/4-SB现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
