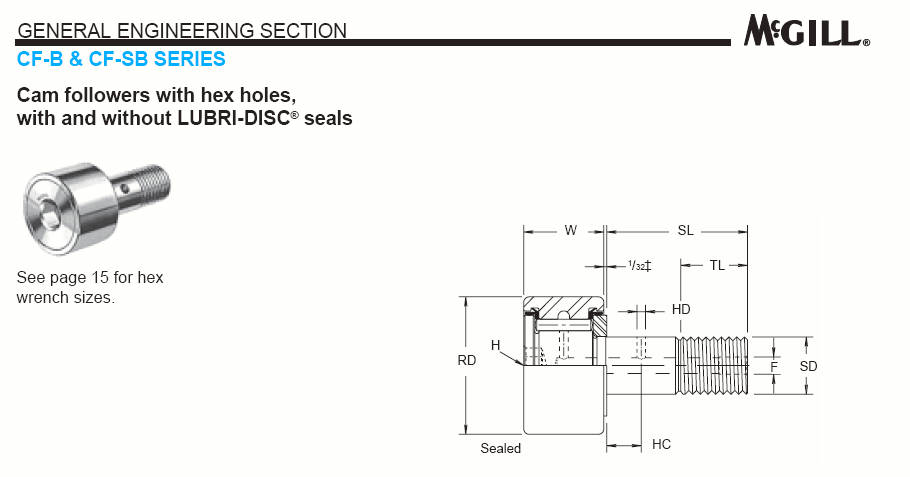

| CF-1/2-B、CF-9/16-SB、CF-5/8-N-B |
|
上海川代轴承机械有限公司 新闻动态 2026-5-3
|
|
|
|
UNSEALED BRG. NO. |
SEALED BRG. NO. |
ROLLER DIA. (RD)
+.000
-.001 |
ROLLER WIDTH (W)
+.000
-.005 |
STUD DIA. (SD)
+.001
-.000 |
STUD L’GTH.
(SL) |
MIN. THR’D L’GTH.
(TL) |
FINE THR’DS. |
OIL HOLE |
LUB. FIT- TING SIZE (F) |
MIN. BOSS DIA. |
HOUSING BORE DIA.
+.0002
-.0003 |
***RECOM. CLAMPING TORQUE LBS.-
IN. |
MAX. STATIC CAPACITY LBS. |
BASIC DYN. RATING LBS. |
|
HOLE CENTER (HC) |
HOLE DIA. (HD) |
|
CF-1/2-N-B |
CF-1/2-N-SB |
.500 |
.344 |
.190 |
1/2 |
1/4 |
10-32 |
- |
- |
- |
19/64 |
.1903 |
15 |
720 |
620 |
|
CF-1/2-B |
CF-1/2-SB |
.500 |
.375 |
.190 |
5/8 |
1/4 |
10-32 |
- |
- |
- |
19/64 |
.1903 |
15 |
790 |
680 |
|
CF-9/16-B |
CF-9/16-SB |
.5625 |
.375 |
.190 |
5/8 |
1/4 |
10-32 |
- |
- |
- |
19/64 |
.1903 |
15 |
790 |
680 |
|
CF-5/8-N-B |
CF-5/8-N-SB |
.625 |
.406 |
.250 |
5/8 |
5/16 |
1/4-28 |
- |
- |
- |
23/64 |
.2503 |
35 |
1085 |
930 |
|
CF-5/8-B |
CF-5/8-SB |
.625 |
.4375 |
.250 |
3/4 |
5/16 |
1/4-28 |
- |
- |
- |
23/64 |
.2503 |
35 |
1215 |
955 |
|
CF-11/16-B |
CF-11/16-SB |
.6875 |
.4375 |
.250 |
3/4 |
5/16 |
1/4-28 |
- |
- |
- |
23/64 |
.2503 |
35 |
1215 |
955 |
|
CF-3/4-B |
CF-3/4-SB |
.750 |
.500 |
.375 |
7/8 |
3/8 |
3/8-24 |
1/4 |
3/32 |
3/16 |
1/2 |
.3753 |
95 |
2065 |
1660 |
|
CF-7/8-B |
CF-7/8-SB |
.875 |
.500 |
.375 |
7/8 |
3/8 |
3/8-24 |
1/4 |
3/32 |
3/16 |
1/2 |
.3753 |
95 |
2065 |
1660 |
|
CF-1-B |
CF-1-SB |
1.000 |
.625 |
.4375 |
1 |
1/2 |
7/16-20 |
1/4 |
3/32 |
3/16 |
41/64 |
.4378 |
250 |
3060 |
2225 |
|
CF-1 1/8-B |
CF-1 1/8-SB |
1.125 |
.625 |
.4375 |
1 |
1/2 |
7/16-20 |
1/4 |
3/32 |
3/16 |
41/64 |
.4378 |
250 |
3060 |
2225 |
|
CF-1 1/4-B |
CF-1 1/4-SB |
1.250 |
.750 |
.500 |
1 1/4 |
5/8 |
1/2-20 |
5/16 |
3/32 |
3/16 |
49/64 |
.5003 |
350 |
4250 |
3930 |
|
CF-1 3/8-B |
CF-1 3/8-SB |
1.375 |
.750 |
.500 |
1 1/4 |
5/8 |
1/2-20 |
5/16 |
3/32 |
3/16 |
49/64 |
.5003 |
350 |
4250 |
3930 |
|
CF-1 1/2-B |
CF-1 1/2-SB |
1.500 |
.875 |
.625 |
1 1/2 |
3/4 |
5/8-18 |
3/8 |
3/32 |
3/16 |
57/64 |
.6253 |
650 |
5640 |
4840 |
|
CF-1 5/8-B |
CF-1 5/8-SB |
1.625 |
.875 |
.625 |
1 1/2 |
3/4 |
5/8-18 |
3/8 |
3/32 |
3/16 |
57/64 |
.6253 |
650 |
5640 |
4840 |
|
CF-1 3/4-B |
CF-1 3/4-SB |
1.750 |
1.000 |
.750 |
1 3/4 |
7/8 |
3/4-16 |
7/16 |
3/32 |
3/16 |
1 3/64 |
.7503 |
1250 |
7920 |
6385 |
|
CF-1 7/8-B |
CF-1 7/8-SB |
1.875 |
1.000 |
.750 |
1 3/4 |
7/8 |
3/4-16 |
7/16 |
3/32 |
3/16 |
1 3/64 |
.7503 |
1250 |
7920 |
6385 |
|
CF-2-B |
CF-2-SB |
2.000 |
1.250 |
.875 |
2 |
1 |
7/8-14 |
1/2 |
1/8 |
3/16 |
1 13/64 |
.8753 |
1500 |
10570 |
8090 |
|
CF-2 1/4-B |
CF-2 1/4-SB |
2.250 |
1.250 |
.875 |
2 |
1 |
7/8-14 |
1/2 |
1/8 |
3/16 |
1 13/64 |
.8753 |
1500 |
10570 |
8090 |
|
CF-2 1/2-B |
CF-2 1/2-SB |
2.500 |
1.500 |
1.000 |
2 1/4 |
1 1/8 |
1-14 |
9/16 |
1/8 |
3/16 |
1 5/16 |
1.0003 |
2250 |
16450 |
11720 |
|
CF-2 3/4-B |
CF-2 3/4-SB |
2.750 |
1.500 |
1.000 |
2 1/4 |
1 1/8 |
1-14 |
9/16 |
1/8 |
3/16 |
1 5/16 |
1.0003 |
2250 |
16450 |
11720 |
|
CF-3-B |
CF-3-SB |
3.000 |
1.750 |
1.250 |
2 1/2 |
1 1/4 |
1 1/4-12 |
5/8 |
1/8 |
① 1/4 |
1 3/4 |
1.2503 |
3450 |
24910 |
15720 |
|
CF-3 1/4-B |
CF-3 1/4-SB |
3.250 |
1.750 |
1.250 |
2 1/2 |
1 1/4 |
1 1/4-12 |
5/8 |
1/8 |
① 1/4 |
1 3/4 |
1.2503 |
3450 |
24910 |
15720 |
|
CF-3 1/2-B |
CF-3 1/2-SB |
3.500 |
2.000 |
1.375 |
2 3/4 |
1 3/8 |
1 3/8-12 |
11/16 |
1/8 |
① 1/4 |
1 59/64 |
1.3753 |
4200 |
31625 |
22800 |
|
CF-4-B |
CF-4-SB |
4.000 |
2.250 |
1.500 |
3 1/2 |
1 1/2 |
1 1/2-12 |
3/4 |
1/8 |
① 1/4 |
2 9/32 |
1.5003 |
5000 |
44770 |
29985 | |
CF-1/2-B、CF-9/16-SB、CF-5/8-N-B现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
4209BTN,
SL1.11/16,
SY 1.1/2 TF/VA201,
H913849/H913810,
SDMF12UU,
NB283720,
6904ZZCM/5K,
SR8SS5 G-2 P2S 18215,
6212.2RSR.C3,
M1316EAB,
23244YMW33W45AC3,
9113PPG,
129818 INS-GTM-207,
HM907614,
VPS-208,
VTWS-114,
K34008CP0,
7312B.TVP,
W6308.2RSR.W203B,
P202-010D1,
MAM08WWSS,
MI-324024,
MU-5152,
749/742DC/X2S-749,
95528/95927CD/X1S-95525,
CF-1-S,
CFE-3 1/2-SB,
114KS,
ZSB1912E,
4200JV密封盖,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008进行详细查询，谢谢！
