| 3NBF512YJ、6NBF817YJ、10NBF1224YJ |
|
上海川代轴承机械有限公司 新闻动态 2025-9-16
|
|
|
|

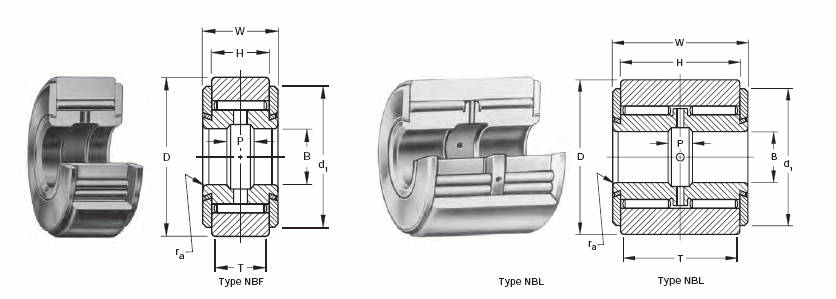

Bearing Designation |
MS24465 MS24466
Dash No. |
Bore
+.000
-.0007 |
B*
+.000
-.018 |
D* O.D.
+0.001 +0.025
-0.001 -0.025 |
+.000
-.005 |
W
+.000
-.13 |
Widths
∅
+.000
-.005 |
H
+.000
-.13 |
§
Shaft Fillet
(max.) |
d1 End
Washer Diameter (ref.) |
P
Inner Ring Groove Width
(ref.) |
|
|
|
in. |
mm |
in. |
mm |
in. |
mm |
in. |
mm |
in. mm |
in. mm |
in. mm |
|
3NBF512YJ |
MS24465-3 |
0.1900 |
4.826 |
0.7500 |
19.05 |
0.312 |
7.92 |
0.218 |
5.54 |
0.022 0.56 |
0.688 17.48 |
0.094 2.39 |
|
4NBF614YJ |
MS24465-4 |
0.2500 |
6.350 |
0.8750 |
22.23 |
0.375 |
9.53 |
0.281 |
7.14 |
0.022 0.56 |
0.750 19.05 |
0.125 3.18 |
|
6NBF817YJ |
MS24465-6 |
0.3750 |
9.525 |
1.0625 |
26.99 |
0.500 |
12.70 |
0.375 |
9.53 |
0.022 0.56 |
0.938 23.83 |
0.188 4.78 |
|
8NBF1021YJ |
MS24465-8 |
0.5000 |
12.700 |
1.3125 |
33.34 |
0.625 |
15.88 |
0.500 |
12.70 |
0.032 0.81 |
1.188 30.18 |
0.188 4.78 |
|
10NBF1224YJ |
MS24465-10 |
0.6250 |
15.875 |
1.5000 |
38.10 |
0.750 |
19.05 |
0.625 |
15.88 |
0.032 0.81 |
1.375 34.93 |
0.250 6.35 |
|
12NBF1628YJ |
MS24465-12 |
0.7500 |
19.050 |
1.7500 |
44.45 |
1.000 |
25.40 |
0.875 |
22.23 |
0.032 0.81 |
1.625 41.28 |
0.250 6.35 |
|
14NBF1832YJ |
MS24465-14 |
0.8750 |
22.225 |
2.0000 |
50.80 |
1.125 |
28.58 |
1.000 |
25.40 |
0.032 0.81 |
1.875 47.63 |
0.250 6.35 |
|
20NBF2040YJ |
MS24465-20 |
1.2500 |
31.750 |
2.5000 |
63.50 |
1.250 |
31.75 |
1.049 |
26.64 |
0.032 0.81 |
1.906 48.41 |
0.375 9.53 |
|
6NBL1618YJ |
MS24466-6 |
0.3750 |
9.525 |
1.1250 |
28.58 |
1.000 |
25.40 |
0.875 |
22.23 |
0.022 0.56 |
1.000 25.40 |
0.188 4.78 |
|
8NBL2022YJ |
MS24466-8 |
0.5000 |
12.700 |
1.3750 |
34.93 |
1.250 |
31.75 |
1.125 |
28.58 |
0.032 0.81 |
1.250 31.75 |
0.250 6.35 |
|
10NBL2426YJ |
MS24466-10 |
0.6250 |
15.875 |
1.6250 |
41.28 |
1.500 |
38.10 |
1.375 |
34.93 |
0.032 0.81 |
1.500 38.10 |
0.375 9.53 |
|
12NBL2830YJ |
MS24466-12 |
0.7500 |
19.050 |
1.8750 |
47.63 |
1.750 |
44.45 |
1.625 |
41.28 |
0.032 0.81 |
1.750 44.45 |
0.375 9.53 |
|
14NBL3234YJ |
MS24466-14 |
0.8750 |
22.225 |
2.1250 |
53.98 |
2.000 |
50.80 |
1.875 |
47.63 |
0.032 0.81 |
2.000 50.80 |
0.375 9.53 |
|
16NBL3638YJ |
MS24466-16 |
1.0000 |
25.400 |
2.3750 |
60.33 |
2.250 |
57.15 |
2.049 |
52.04 |
0.032 0.81 |
2.125 53.98 |
0.375 9.53 |
|
20NBL4044YJ |
MS24466-20 |
1.2500 |
31.750 |
2.7500 |
69.85 |
2.500 |
63.50 |
2.299 |
58.39 |
0.032 0.81 |
2.500 63.50 |
0.375 9.53 | |
3NBF512YJ、6NBF817YJ、10NBF1224YJ现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
CF5B,
NJ 2313 ECP/C3,
NJ 324 ECM/C4VA301,
37SSTX2K3C G-74 P2S 26188,
68062RS,
TSN 519 G,
W3609SA-2D-C5Z10,
1212SL,
M1316EAX,
SEA35/GH7BE1DDL,
SEB180/S5BE1DDL,
HYS619/9CTA,
S1106K ,
CR PGR 200X194X30-PF,
SF-20,
UG343L,
PAF30160P10,
PSW220E,
PFC435K3-316,
FF2025ZW,
GT361.07,
594A/592A,
RE40040,
LM122130NFUUAJ,
EPB22547FH轴径2.9375(in),
MP-24T(P307+3-18T),
1904HDLC O-67 P2P 15863,
LS-127,
473135V油封,
6010 BHT FB 400°,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008进行详细查询，谢谢！
