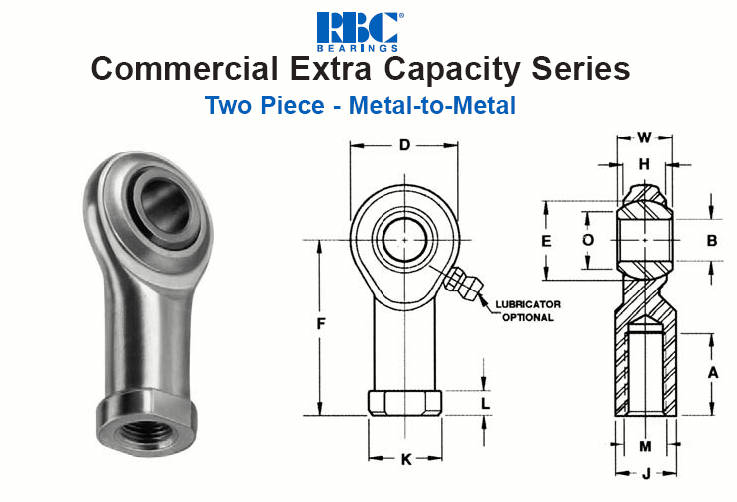

杆端关节轴承F3CR、F4CR、F5CR、F7CR、F12CR

ROD END NUMBER

DIMENSIONS IN INCHES

OTHER DIMENSIONS

MAXIMUM STATIC RADIAL LOAD

APPROX WEIGHT

BORE

BALL WIDTH

HOUSING WIDTH

HEAD DIAMETER

LENGTH TO

CENTER OF BALL

THREAD LENGTH

THREAD SIZE

BALL DIAMETER

BALL

FLAT DIAMETER

ACROSS

WRENCH FLATS

B

W

H

D

F

A

M

E

O

J

K

L

LBF

LBS

+.0025

- .0005

+.005

- .005

+.010

- .010

REF

REF

+.062

- .062

UNF-3B

REF

REF

REF

REF

REF

F3CR

.1900

.312

.250

.625

1.062

.562

.1900-32

.437

.306

.312

.406

.187

2,000

.03

F4CR

.2500

.375

.281

.750

1.312

.750

2500-28

.515

.353

.375

.468

.187

3,200

.05

F5CR

.3125

.437

.344

.875

1.375

.750

. 3125-24

.625

.447

.437

.500

.187

3,800

.08

F6CR

.3750

.500

.406

1.000

1.625

.937

.3750-24

.718

.516

.562

.687

.250

5,000

.12

F7CR

.4375

.562

.437

1.125

1.812

1.062

.4375-20

.812

.586

.625

.750

.250

6,500

.17

F8CR

.5000

.625

.500

1.312

2.125

1.187

5000-20

.937

.698

.750

.875

.250

9,500

.26

F10CR

.6250

.750

.562

1.500

2.500

1.500

.6250-18

1.125

.839

.875

1.000

.312

10,000

.41

F12CR

.7500

.875

.687

1.750

2.875

1.750

7500-16

1.312

.978

1.000

1.125

.312

14,000

.64
