杆端关节轴承HM4、HM7、HM8 、HM12

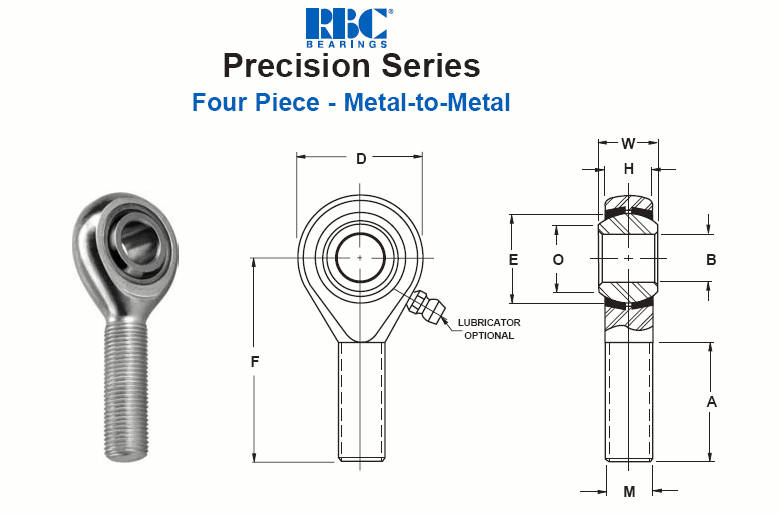

DIMENSIONS IN INCHES

LENGTH TO

BALL        HOUSING        HEAD         CENTER       THREAD

MAXIMUM

BALL

STATIC

THREAD

BALL

FLAT

RADIAL

APPROX

BORE

WIDTH

WIDTH

DIAMETER

OF BALL

LENGTH

SIZE

DIAMETER

DIAMETER

LOAD ➐

WEIGHT

B                 W                H                 D                  F                 A                 M                 E                 O

ROD END

+.0015

+.000

+.005

+.010

+.031

+.062

NUMBER

- .0005

- .005

- .005

- .010

- .031

- .031

UNF-3A

REF

REF

LBF

LBS

HM3

.1900

.312

.250

.625

1.250

.750

.1900-32

.437

.306

900

.03

HM4

.2500

.375

.281

.750

1.562

1.000

.2500-28

.515

.353

1,700

.05

HM5

.3125

.437

.344

.875

1.875

1.250

.3125-24

.625

.447

2,500

.08

HM6

.3750

.500

.406

1.000

1.938

1.250

.3750-24

.718

.516

4,000

.12

HM7

.4375

.562

.437

1.125

2.125

1.375

.4375-20

.812

.586

5,000

.17

HM8

.5000

.625

.500

1.312

2.438

1.500

.5000-20

.937

.698

7,000

.26

HM10

.6250

.750

.562

1.500

2.625

1.625

.6250-18

1.125

.839

8,050

.41

HM12

.7500

.875

.687

1.750

2.875

1.750

.7500-16

1.312

.978

11,300

.64

HM16❻

1.0000

1.375

1.000➎

2.750 ➎

4.125

2.125

1.2500-12

1.875

1.275

28,400

2.25
