| F3CL2M20N、F3CL2B16N、F3CL2E20N |
|
上海川代轴承机械有限公司 新闻动态 2025-8-1
|
|
|
|

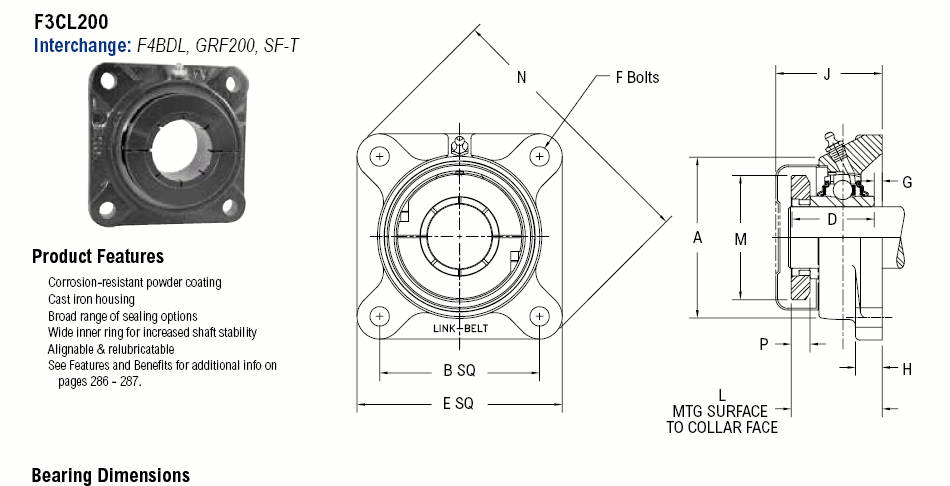

Shaft
Diameter |
Part Number |
B
Distance
Between
Bolt Holes |
L
Mounted
Surface to
Collar Face |
A |
D |
E |
F
Bolts |
G |
H |
J |
M |
N |
P |
Approx.
Weight |
|
3/4 |
F3CL212N*■ |
2 1/2 |
1 9/16 |
2 7/16 |
1 11/32 |
3 3/8 |
3/8 |
13/64 |
9/16 |
2 1/16 |
1 59/64 |
4 13/32 |
3/8 |
1.50 |
|
20.00 |
F3CL2M20N*■ |
63.50 |
39.90 |
61.90 |
34.04 |
85.70 |
10.00 |
5.20 |
14.30 |
52.30 |
48.77 |
111.90 |
9.53 |
0.68 |
|
7/8 |
F3CL214N*Δ■ |
2 3/4 |
1 17/32 |
2 11/16 |
1 3/8 |
3 3/4 |
7/16 |
3/16 |
19/32 |
2 1/16 |
2 5/64 |
4 29/32 |
3/8 |
1.90 |
|
15/16 |
F3CL215N*Δ■ |
|
1 |
F3CL216N*Δ■ |
|
25.00 |
F3CL2M25N*Δ■ |
69.85 |
38.90 |
68.30 |
34.80 |
95.20 |
10.00 |
4.80 |
15.10 |
52.30 |
52.83 |
124.60 |
9.53 |
0.86 |
|
1 |
F3CL2B16N*Δ■ |
3 1/4 |
1 47/64 |
3 3/16 |
1 9/16 |
4 1/4 |
7/16 |
11/64 |
19/32 |
2 1/4 |
2 15/32 |
5 19/32 |
27/64 |
3.10 |
|
1 1/8 |
F3CL218N*Δ■ |
|
1 3/16 |
F3CL219N*Δ■ |
|
1 1/4 |
F3CL2E20N*Δ■ |
|
30.00 |
F3CL2M30N*Δ■ |
82.55 |
43.90 |
81.00 |
39.62 |
108.00 |
10.00 |
4.40 |
15.10 |
57.20 |
62.48 |
142.10 |
10.72 |
1.40 |
|
1 3/16 |
F3CL2B19N*Δ■ |
3 5/8 |
1 29/32 |
3 5/8 |
1 3/4 |
4 5/8 |
1/2 |
5/32 |
5/8 |
2 25/64 |
2 7/8 |
6 1/8 |
1/2 |
3.90 |
|
1 1/4 |
F3CL220N*Δ■ |
|
1 3/8 |
F3CL222N*Δ■ |
|
1 7/16 |
F3CL223N*Δ■ |
|
35.00 |
F3CL2M35N*Δ■ |
92.08 |
48.30 |
92.10 |
44.45 |
117.50 |
12.00 |
4.00 |
15.90 |
60.70 |
73.15 |
155.60 |
12.70 |
1.75 |
|
1 7/16 |
F3CL2B23N*Δ■ |
4 |
2 1/8 |
4 |
1 15/16 |
5 1/8 |
1/2 |
11/64 |
5/8 |
2 37/64 |
3 3/64 |
6 25/32 |
35/64 |
5.00 |
|
1 1/2 |
F3CL224N*Δ■ |
|
1 5/8 |
F3CL2E26N*Δ■ |
|
40.00 |
F3CL2M40N*Δ■ |
101.60 |
53.90 |
101.60 |
49.28 |
130.20 |
12.00 |
4.40 |
15.90 |
65.50 |
77.47 |
172.20 |
13.72 |
2.25 |
|
1 1/2 |
F3CL2B24N*Δ■ |
4 1/8 |
2 1/8 |
4 1/4 |
1 61/64 |
5 3/8 |
1/2 |
7/64 |
5/8 |
2 19/32 |
3 17/64 |
7 3/32 |
33/64 |
6.20 |
|
1 5/8 |
F3CL226N*Δ■ |
|
1 11/16 |
F3CL227N*Δ■ |
|
1 3/4 |
F3CL228N*Δ■ |
|
45.00 |
F3CL2M45N*Δ■ |
104.78 |
53.90 |
108.00 |
49.53 |
136.50 |
12.00 |
2.80 |
15.90 |
65.80 |
82.80 |
180.20 |
13.21 |
2.80 |
|
1 11/16 |
F3CL2B27N*Δ■ |
4 3/8 |
2 23/64 |
4 1/2 |
2 5/64 |
5 5/8 |
1/2 |
13/64 |
3/4 |
2 53/64 |
3 5/8 |
7 7/16 |
5/8 |
6.90 |
|
1 3/4 |
F3CL2B28N*Δ■ |
|
1 7/8 |
F3CL230N*Δ■ |
|
1 15/16 |
F3CL231N*Δ■ |
|
2 |
F3CL2E32N*Δ■ |
4 3/8 |
2 23/64 |
4 1/2 |
2 5/64 |
5 5/8 |
1/2 |
13/64 |
3/4 |
2 53/64 |
3 5/8 |
7 7/16 |
5/8 |
6.90 |
|
50.00 |
F3CL2M50N*Δ■ |
111.12 |
59.70 |
114.30 |
52.58 |
142.90 |
12.00 |
5.20 |
19.00 |
71.90 |
92.20 |
188.90 |
15.75 |
3.10 | |
F3CL2M20N、F3CL2B16N、F3CL2E20N现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
