PLB23148K81516、PLB23156K10716、PLB23168K12716

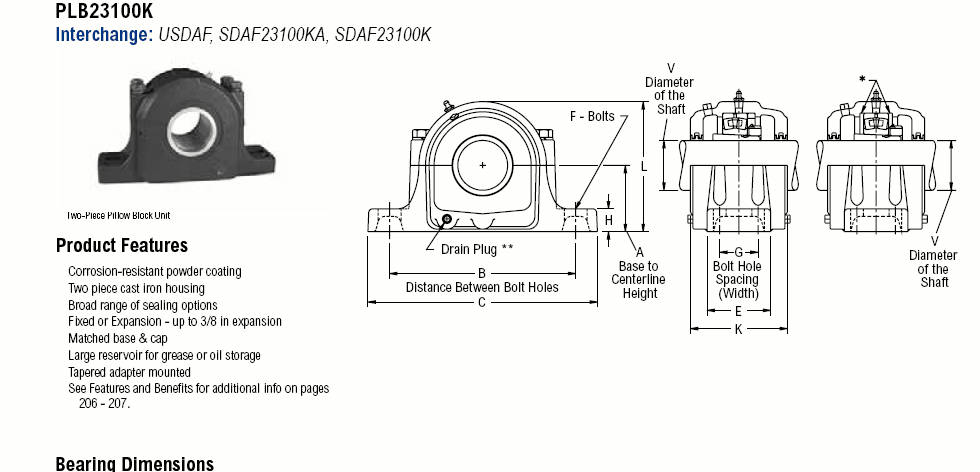

Shaft

 Diameter

Part Number

A

Base to

Centerline Height

B Min.

Distance

Between

Bolt Holes

B Max.

Distance

Between

Bolt Holes

G

Bolt Hole

Spacing (Width)

C

E

F

Bolts

H

K

L

Approx. Weight

8

PLB23144K8

8 1/4

22 1/2

25

5

29 1/2

8

1 1/4

3 3/8

12 1/8

16 1/2

496.00

8 15/16

PLB23148K81516

9 1/2

24 3/4

27 7/8

5 1/4

32 3/4

8 3/4

1 1/2

3 3/4

13 1/2

18 5/8

820.00

9 7/16

PLB23152K9716

10 1/4

29

30 1/2

8 3/4

35

14 1/2

1 5/8

3 3/4

14 1/8

20 1/2

1,029.00

10 7/16

PLB23156K10716

12

32 3/4

33 1/2

9

38 1/4

14 3/4

1 5/8

3 1/2

15 1/2

24

1,253.00

10 15/16

PLB23160K101516

12

32 3/4

33 1/2

9

38 1/4

15 1/8

1 5/8

3 1/2

16 1/2

24

1,333.00

11 15/16

PLB23164K111516

12 13/16

35

36 1/2

10 1/2

41 3/4

15 3/4

1 7/8

4 1/2

16 1/4

26

1,768.00

12 7/16

PLB23168K12716

14

36 3/4

38 1/4

10 3/4

43 3/4

18 1/4

2

5

18

28

2,265.00

13 7/16

PLB23172K13716

14 1/2

39 1/4

40 3/4

11

46

17 1/8

2

5

18

28 3/4

2,442.00

13 15/16

PLB23176K131516

14 1/2

39 1/4

40 3/4

11

46

17 1/8

2

5

18

28 3/4

2,473.00

15

PLB23180K15

15 1/2

41 1/2

43 1/2

12 1/4

48 3/4

18 3/4

2 1/4

5 1/2

19 3/8

31

3,119.00

15 3/4

PLB23184K1534

17

44 1/2

46 5/8

14 1/2

52 3/4

22 1/4

2 1/4

5 1/2

21 3/4

34

4,039.00

16 1/2

PLB23188K1612

17

44 1/2

46 5/8

14 1/2

52 3/4

22 1/4

2 1/4

5 1/2

21 3/4

34

4,003.00

17

PLB23192K17

18

47 1/8

48 7/8

15

54 1/4

21 5/8

2 1/2

5 3/4

22 3/4

35 3/4

4,600.00

18

PLB23196K18

18

47 1/8

48 7/8

15

54 1/4

21 5/8

2 1/2

5 3/4

22 3/4

35 3/4

4,707.00

19 1/2

PLB231530K1912

20

52 1/2

54

16

60

22

3

6

24 5/8

40

6,002.00

21

PLB231560K21

20

52 1/2

54

16

60

22

3

6

24 5/8

40

5,881.00
