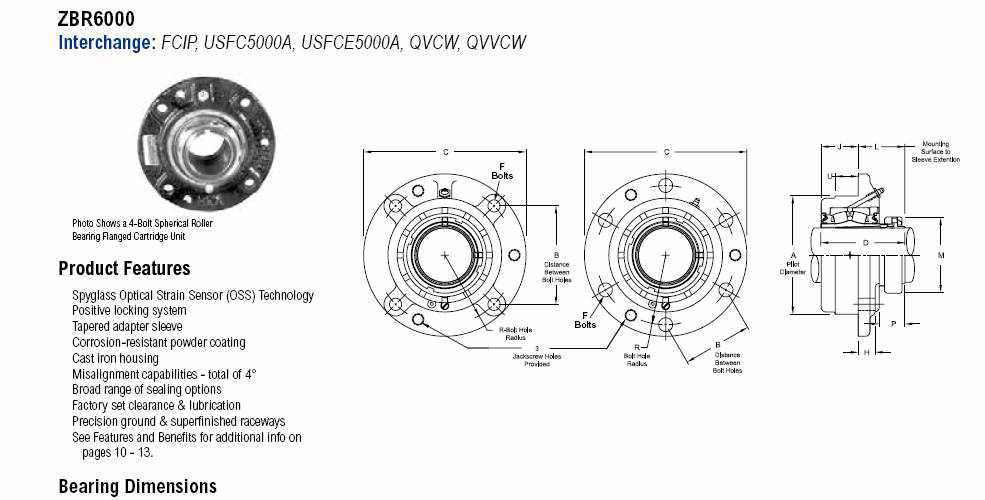

| ZBR6107、ZBR6111、ZBR6206 |
|
上海川代轴承机械有限公司 新闻动态 2025-6-16
|
|
|
|
Shaft Diameter |
Part Number |
A
Pilot Diameter |
B
Distance Between Bolt Holes |
L
Mounting Surface to
Collar Face |
R
Bolt Circle Radius |
C |
D |
F
Bolts |
H |
J |
M |
P |
U |
Approx. Weight |
|
1 7/16 |
ZBR6107 |
3.625 |
3 3/32 |
1 61/64 |
2 3/16 |
5 1/4 |
3 21/64 |
3/8 |
1/2 |
1 3/8 |
2 25/64 |
1 9/64 |
3/4 |
5.40 |
|
1 11/16 |
ZBR6111 |
4.250 |
3 5/8 |
2 3/16 |
2 9/16 |
6 1/8 |
3 47/64 |
7/16 |
1/2 |
1 17/32 |
2 41/64 |
1 9/32 |
7/8 |
8.40 |
|
1 15/16 |
ZBR6115 |
4.500 |
3 51/64 |
2 |
2 11/16 |
6 3/8 |
3 41/64 |
7/16 |
9/16 |
1 9/16 |
2 55/64 |
1 1/8 |
7/8 |
9.60 |
|
45.00 |
ZBR6045MM |
114.300 |
96.44 |
50.80 |
68.26 |
161.93 |
92.47 |
11.00 |
14.29 |
39.69 |
72.63 |
28.58 |
22.23 |
4.40 |
|
2 3/16 |
ZBR6203 |
5.000 |
4 1/4 |
2 7/64 |
3 |
7 1/8 |
3 11/16 |
1/2 |
9/16 |
1 9/16 |
3 15/64 |
1 5/32 |
1 |
13.70 |
|
55.00 |
ZBR6055MM |
127.000 |
107.95 |
53.57 |
76.20 |
180.98 |
93.66 |
13.00 |
14.29 |
39.69 |
82.15 |
29.37 |
25.40 |
5.90 |
|
2 3/8 |
ZBR6206 |
5.500 |
4 19/32 |
2 23/64 |
3 1/4 |
7 5/8 |
4 1/16 |
1/2 |
5/8 |
1 11/16 |
3 19/32 |
1 27/64 |
1 |
16.20 |
|
2 7/16 |
ZBR6207 |
15.90 |
|
60.00 |
ZBR6060MM |
139.700 |
116.66 |
59.92 |
82.55 |
193.68 |
103.19 |
13.00 |
15.88 |
42.86 |
91.28 |
36.12 |
25.40 |
7.20 |
|
2 11/16 |
ZBR6211 |
6.375 |
5 19/64 |
2 17/32 |
3 3/4 |
8 3/4 |
4 17/32 |
5/8 |
3/4 |
2 |
4 3/32 |
1 25/64 |
1 1/4 |
26.10 |
|
2 3/4 |
ZBR6212 |
24.80 |
|
2 15/16 |
ZBR6215 |
22.70 |
|
70.00 |
ZBR6070MM |
161.925 |
134.54 |
64.29 |
95.25 |
222.25 |
115.09 |
16.00 |
19.05 |
50.80 |
103.98 |
35.32 |
31.75 |
11.20 |
|
75.00 |
ZBR6075MM |
10.30 |
|
3 3/16 |
ZBR6303 |
7.375 |
6 3/32 |
3 1/32 |
4 5/16 |
10 1/4 |
5 1/32 |
3/4 |
15/16 |
2 |
4 61/64 |
1 19/32 |
1 1/4 |
38.00 |
|
3 7/16 |
ZBR6307 |
36.50 |
|
80.00 |
ZBR6080MM |
187.325 |
154.79 |
76.99 |
109.54 |
260.35 |
127.79 |
19.00 |
23.81 |
50.80 |
125.81 |
40.48 |
31.75 |
17.20 |
|
85.00 |
ZBR6085MM |
17.10 |
|
3 11/16 |
ZBR6311 |
8.125 |
6 5/8 |
3 23/64 |
4 11/16 |
10 7/8 |
5 25/32 |
3/4 |
1 1/8 |
2 1/2 |
5 43/64 |
1 47/64 |
1 1/2 |
56.00 |
|
3 15/16 |
ZBR6315 |
53.00 |
|
90.00 |
ZBR6090MM |
206.375 |
168.28 |
85.32 |
119.06 |
276.23 |
146.84 |
19.00 |
28.58 |
63.50 |
144.07 |
44.05 |
38.10 |
24.00 |
|
100.00 |
ZBR6100MM | |
