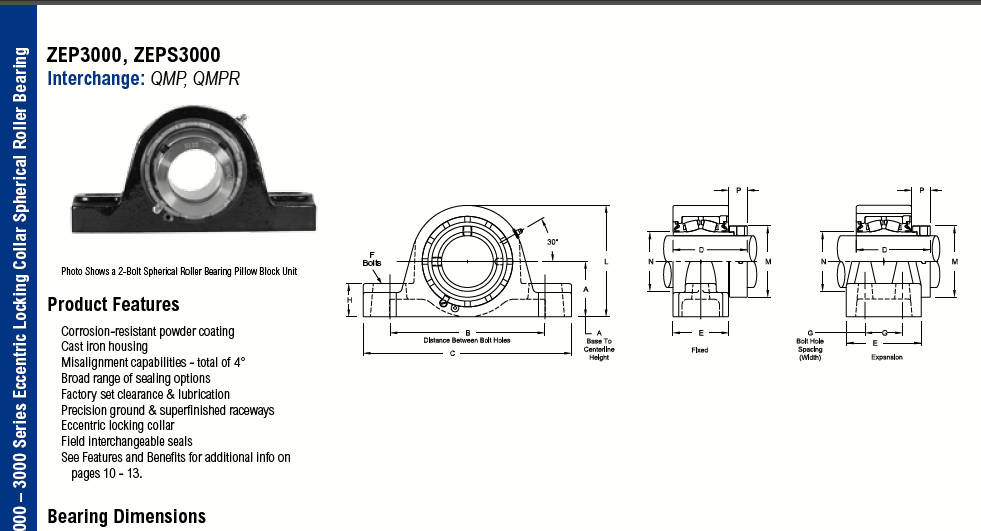

ZEPS3107、ZEP3211、ZEPS3215

内径

Expansion

Fixed

A

Base to

Centerline Height

B Min.

Distance

Between Bolt Holes

B Max.

Distance

Between Bolt Holes

G

Bolt Hole

Spacing (Width)

C

D

E

F

Bolts

H

L

M

N

P

Approx. Weight

Part Number

Part Number

1 7/16

ZEPS3107

ZEP3107

1 7/8

4 3/4

6

-

7 3/8

2 59/64

2 1/4

1/2

1 1/8

3 7/8

2 5/16

1 3/4

25/32

7.10

1 11/16

ZEPS3111

ZEP3111

2 1/8

5 1/4

6 1/2

-

7 7/8

3 3/16

2 1/2

1/2

1 1/4

4 3/8

2 5/8

2 1/32

3/4

10.10

1 15/16

ZEPS3115

ZEP3115

2 1/4

6 1/16

7 1/4

-

8 7/8

3 9/32

2 1/2

5/8

1 5/16

4 9/16

2 3/4

2 5/16

27/32

11.70

2 3/16

ZEPS3203

ZEP3203

2 1/2

6 9/16

8

-

9 5/8

3 1/2

2 9/16

5/8

1 1/2

5

3 1/4

2 5/8

31/32

15.10

2 7/16

ZEPS3207

ZEP3207

2 3/4

6 15/16

8 3/4

-

10 1/2

3 21/32

2 11/16

5/8

1 5/8

5 1/2

3 9/16

2 29/32

1 1/64

18.40

2 1/2

ZEPS3208

ZEP3208

18.10

2 11/16

ZEPS3211

ZEP3211

3 1/8

7 13/16

9 3/4

-

11 13/16

4 13/64

3 3/16

3/4

1 7/8

6 5/16

4 1/16

3 3/8

1 1/64

29.50

2 15/16

ZEPS3215

ZEP3215

28.10

3 7/16

ZEPS3307

ZEP3307

3 3/4

9 5/16

11 5/16

-

13 13/16

4 37/64

3 1/2

7/8

2 1/4

7 1/2

4 15/16

3 31/32

1 9/64

43.10

3 1/2

ZEPS3308

ZEP3308

42.20
