| 螺栓法兰PVR-1518、PVR-1504、PVR-3546、PVR-1501、PVR-1507 |
|
上海川代轴承机械有限公司 新闻动态 2025-8-2
|
|
|
|
|

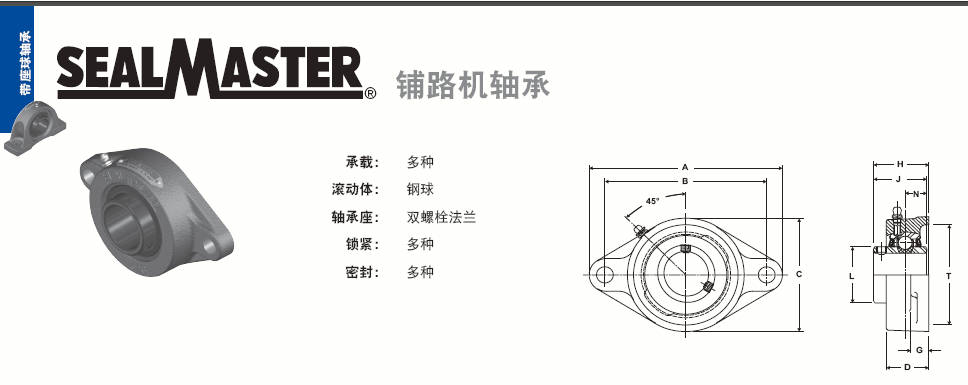

铺路机轴承承载： 多种
滚动体： 钢球
轴承座： 双螺栓法兰
锁紧： 多种
密封： 多种
PVR x 6xx 双螺栓法兰组件
|
|
|
孔径 |
型号 |
尺寸（英寸/毫米） |
螺栓
尺寸 |
单元-
重量-
磅/公斤 |
|
|
A |
B |
D |
G |
H |
J |
N |
L |
M |
T
芯 |
|
|
英寸 |
|
|
1-1/2 |
PVR-1504 |
5-1/8
130.2 |
4
101.6 |
1-1/2
38.1 |
9/16
14.3 |
2-1/64
51.2 |
1-15/16
49.2 |
3/4
19.1 |
2-1/16
52.4 |
4-5/64
103.6 |
3-1/2
88.9 |
1/2 |
5.5
2.49 |
|
|
1-9/16 |
PVR-1518 |
5-1/8
130.2 |
4
101.6 |
1-1/2
38.1 |
9/16
14.3 |
2-1/64
51.2 |
1-15/16
49.2 |
3/4
19.1 |
2-1/16
52.4 |
4-5/64
103.6 |
3-1/2
88.9 |
1/2 |
5.5
2.49 |
|
|
1-3/4 |
PVR-3546 |
5-3/8
136.5 |
4-1/8
104.8 |
1-9/16
39.7 |
9/16
14.3 |
2-3/64
52.0 |
1-15/16
49.2 |
3/4
19.1 |
2-19/64
58.3 |
4-11/32
110.3 |
3-7/8
98.4 |
9/16 |
5.7
2.59 |
|
|
1-3/4 |
PVR-1501 |
5-3/8
136.5 |
4-1/8
104.8 |
1-9/16
39.7 |
9/16
14.3 |
2-3/64
52.0 |
1-15/16
49.2 |
3/4
19.1 |
2-19/64
58.3 |
4-21/64
109.9 |
3-7/8
98.4 |
9/16 |
5.7
2.59 |
|
|
1-7/8 |
PVR-1509 |
5-5/8
142.9 |
4-3/8
111.1 |
1-9/16
39.7 |
9/16
14.3 |
2-5/32
54.8 |
2-1/32
51.6 |
3/4
19.1 |
2-15/32
62.7 |
4-33/64
114.7 |
4
101.6 |
9/16 |
6.4
2.90 |
|
|
2 |
PVR-1507 |
6-3/8
161.9 |
5-1/8
130.2 |
1-3/4
44.5 |
13/16
20.6 |
2-5/16
58.7 |
2-3/16
55.6 |
7/8
22.2 |
2-23/32
69.1 |
5-3/16
131.8 |
4-1/4
108.0 |
5/8 |
10.5
4.76 |
|
|
2-3/16 |
PVR-2533 |
5-3/4
146.1 |
4-7/16
112.7 |
1-3/4
44.5 |
13/16
20.6 |
2-3/8
60.3 |
2-3/16
55.6 |
7/8
22.2 |
3-5/8
92.1 |
5-3/16
131.8 |
4-1/4
108.0 |
9/16 |
11.1
5.03 |
|
|
2-3/16 |
PVR-2538 |
5-3/4
146.1 |
4-39/89
112.7 |
1-49/64
44.8 |
25/32
19.8 |
2-31/32
75.4 |
2-13/16
71.4 |
1-3/32
27.8 |
3
76.2 |
5-1/4
133.4 |
4-1/4
108.0 |
9/16 |
11.1
5.03 |
|
|
2-1/2 |
PVR-1551 |
7-3/8
187.3 |
5-7/8
149.2 |
2-5/16
58.7 |
11/16
17.5 |
3
76.1 |
2-3/4
69.9 |
1-1/16
27.0 |
3-7/16
87.3 |
6-1/8
155.6 |
5-1/8
130.2 |
5/8 |
16.4
7.44 |
|
|
2-11/16 |
PVR-1522 |
7-3/4
196.9 |
6
152.4 |
2-3/8
60.3 |
1
25.4 |
3-3/16
81.0 |
3-1/16
77.8 |
1-5/16
33.3 |
3-41/64
92.5 |
6-1/2
165.1 |
5-7/8
149.2 |
3/4 |
20.6
9.34 |
| |
螺栓法兰PVR-1518、PVR-1504、PVR-3546、PVR-1501、PVR-1507现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
