| 圆柱外径轴承芯件ER-8、ER-9、ER-12、ER-15、ER-17、ER-19 |
|
上海川代轴承机械有限公司 新闻动态 2025-8-1
|
|
|
|
|

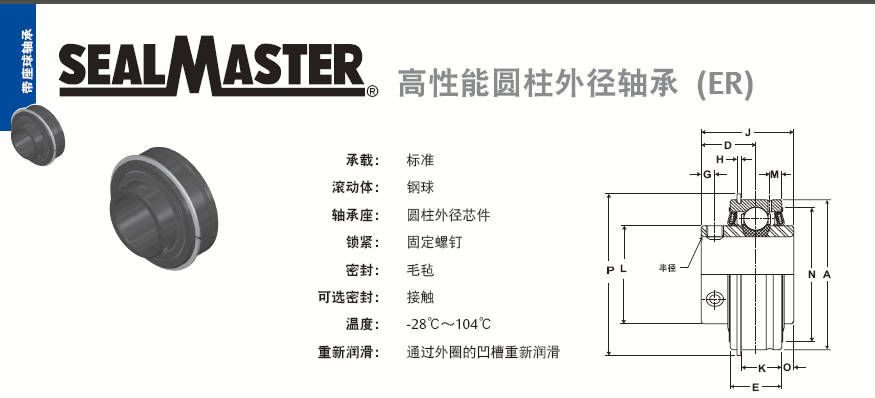

承载： 标准
滚动体： 钢球
轴承座： 圆柱外径芯件
锁紧： 固定螺钉
密封： 毛毡
可选密封： 接触
温度： -28℃～104℃
重新润滑： 通过外圈的凹槽重新润滑
ER 圆柱外径轴承芯件 － 固定螺钉锁定 |
|
|
孔径 |
轴承芯件
-编号 |
基本动态
-额定载荷
-磅/牛 |
尺寸（英寸/毫米） |
最大清角
-半径 |
单元-
重量-
磅/公斤 |
|
|
A |
D |
E |
G |
H |
J |
K |
L |
M |
N |
O |
P |
|
|
英寸 |
毫米 |
|
|
1/2
9/16
5/8
11/16
3/4 |
20 |
ER-8
ER-9
ER-10
ER-11
ER-12
ER-204 |
2611
11614 |
1.8504
47 |
13/16
20.6 |
5/8
15.9 |
3/16
4.8 |
3/64
1.2 |
1-7/32
31.0 |
31/64
12.3 |
1-3/16
30.2 |
11/64
4.4 |
1-5/8
41.3 |
.094
2.39 |
2-1/16
52.4 |
.040
1.02 |
.56
.25 |
|
|
7/8
15/16
1 |
25 |
ER-14
ER-15
ER-16
ER-205 |
2801
12459 |
2.0472
52 |
55/64
21.8 |
3/4
19.1 |
7/32
5.6 |
3/64
1.2 |
1-3/8
34.9 |
39/64
15.5 |
1-3/8
34.9 |
13/64
5.2 |
1-55/64
47.2 |
.135
3.43 |
2-17/64
57.5 |
.040
1.02 |
.68
.31 |
|
|
1-1/16
1-1/8
1-3/16
1-1/4 |
30 |
ER-17
ER-18
ER-19
ER-20R
ER-206 |
4381
19487 |
2.4409
62 |
7/8
22.2 |
7/8
22.2 |
7/32
5.6 |
1/16
1.6 |
1-1/2
38.1 |
11/16
17.5 |
1-19/32
40.5 |
7/32
5.6 |
2-5/32
54.8 |
.188
4.78 |
2-21/32
67.5 |
.040
1.02 |
.93
.42 |
|
|
1-1/4
1-5/16
1-3/8
1-7/16 |
35 |
ER-20
ER-21
ER-22
ER-23
ER-207 |
5782
25718 |
2.8364
72 |
1
25.4 |
15/16
23.8 |
1/4
6.4 |
1/16
1.6 |
1-11/16
42.9 |
3/4
19.1 |
1-55/64
47.2 |
7/32
5.6 |
2-17/32
64.3 |
.219
5.56 |
3-5/64
78.2 |
.040
1.02 |
1.37
.62 |
|
|
1-1/2
1-9/16 |
40 |
ER-24
ER-25
ER-208 |
5307
23606 |
3.1496
80 |
1-3/16
30.2 |
1-3/32
27.8 |
5/16
7.9 |
1/16
1.6 |
1-15/16
49.2 |
29/32
23.0 |
2-1/16
52.4 |
1/4
6.4 |
2-53/64
71.8 |
.203
5.16 |
3-13/32
86.5 |
.062
1.57 |
2
.91 |
|
|
1-5/8
1-11/16
1-3/4 |
45 |
ER-26
ER-27
ER-28
ER-209 |
7901
35144 |
3.3465
85 |
1-3/16
30.2 |
1-3/32
27.8 |
5/16
7.9 |
1/16
1.6 |
1-15/16
49.2 |
29/32
23.0 |
2-19/64
58.3 |
1/4
6.4 |
3-1/16
77.8 |
.203
5.16 |
3-19/32
91.3 |
.062
1.57 |
2.31
1.05 |
|
|
1-13/16
1-7/8
1-15/16
2 |
50 |
ER-29
ER-30
ER-31
ER-32R
ER-210 |
7889
35090 |
3.5433
90 |
1-9/32
32.5 |
1-1/8
28.6 |
3/8
9.5 |
3/32
2.4 |
2-1/32
51.6 |
29/32
23.0 |
2-15/32
62.7 |
19/64
7.5 |
3-7/32
81.8 |
.188
4.78 |
3-25/32
96.0 |
.062
1.57 |
2.43
1.10 |
|
|
2
2-1/8
2-3/16 |
55 |
ER-32
ER-34
ER-35
ER-211 |
9752
43377 |
3.9370
100 |
1-5/16
33.3 |
1-3/16
30.2 |
3/8
9.5 |
3/32
2.4 |
2-3/16
55.6 |
31/32
24.6 |
2-23/32
69.1 |
19/64
7.5 |
3-9/16
90.5 |
.281
7.14 |
4-3/16
106.4 |
.080
2.03 |
3
1.36 |
|
|
2-1/4
2-3/8
2-7/16 |
60 |
ER-36
ER-38
ER-39
ER-212 |
11789
52437 |
4.3307
110 |
1-9/16
39.7 |
1-1/4
31.8 |
7/16
11.1 |
3/32
2.4 |
2-9/16
65.1 |
1-1/32
26.2 |
2-63/64
75.8 |
19/64
7.5 |
3-29/32
99.2 |
.375
9.53 |
4-37/64
116.3 |
.080
2.03 |
4
1.81 |
|
|
2-1/2
2-11/16 |
70 |
ER-40
ER-43
ER-214 |
13971
62143 |
4.9213
125 |
1-11/16
42.9 |
1-3/8
34.9 |
7/16
11.1 |
7/64
2.8 |
2-3/4
69.9 |
1-7/64
28.2 |
3-7/16
87.3 |
5/16
7.9 |
4-7/16
112.7 |
.375
9.53 |
5-9/32
134.1 |
.080
2.03 |
5.56
2.52 |
|
|
2-7/8
2-15/16 |
75 |
ER-46
ER-47
ER-215 |
14839
66004 |
5.1181
130 |
1-3/4
44.5 |
1-1/2
38.1 |
7/16
11.1 |
7/64
2.8 |
3-1/16
77.8 |
1-15/16
31.5 |
1-15/64
92.5 |
3/8
9.5 |
4-5/8
117.5 |
.563
14.30 |
5-7/16
138.1 |
.080
2.03 |
6.37
2.89 |
|
|
3
3-3/16 |
80 |
ER-48
ER-51
ER-216 |
17412
77449 |
5.5118
140 |
1-15/16
49.2 |
1-11/16
42.9 |
17/32
13.5 |
7/64
2.8 |
3-1/4
82.6 |
1-25/64
35.3 |
3-59/64
99.6 |
7/16
11.1 |
4-63/64
126.6 |
.469
11.91 |
5-13/16
147.6 |
.120
3.05 |
7.85
3.56 |
|
|
3-1/4
3-3/8
3-7/16 |
|
ER-52
ER-54
ER-55 |
18681
83093 |
5.9055
150 |
2-1/32
51.6 |
1-15/16
49.2 |
15/32
11.9 |
7/64
2.8 |
3-3/8
85.7 |
1-41/64
41.7 |
4-5/32
105.6 |
7/16
11.1 |
5-19/64
134.5 |
.375
9.53 |
6-9/32
159.5 |
.120
3.05 |
9.5
4.31 |
|
|
3-15/16
4 |
|
ER-63
ER-64 |
29905
133017 |
7.4803
190 |
2-11/16
68.3 |
2-1/2
63.5 |
3/4
19.1 |
1/8
3.2 |
4-5/8
117.5 |
2-5/32
54.8 |
5-11/64
131.4 |
11/16
17.5 |
6-21/32
169.1 |
.688
17.48 |
8
203.2 |
.120
3.05 |
22
9.98 |
| |
圆柱外径轴承芯件ER-8、ER-9、ER-12、ER-15、ER-17、ER-19现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
