| 中型滑块单元MST-16、MST-305、MST-19、MST-23、MST-308 |
|
上海川代轴承机械有限公司 新闻动态 2025-8-2
|
|
|
|

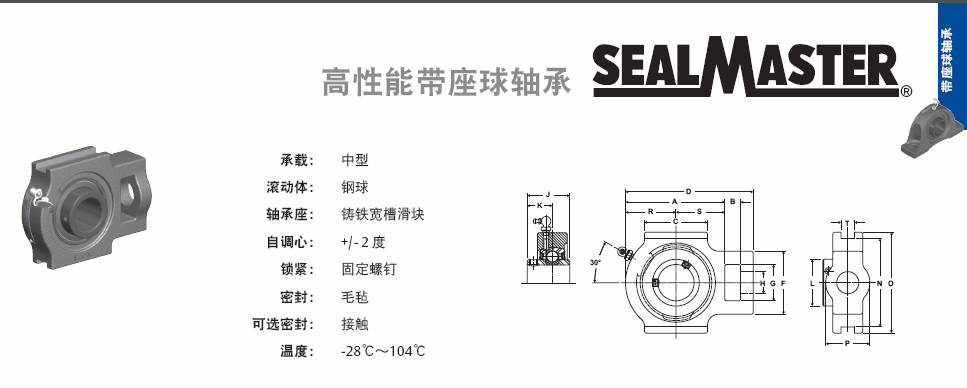

承载： 中型
滚动体： 钢球
轴承座： 铸铁宽槽滑块
自调心： +/- 2 度
锁紧： 固定螺钉
密封： 毛毡
可选密封： 接触
温度： -28℃～104℃
MST 系列中型滑块单元 － 固定螺钉锁定 |
|
孔径 |
型号 |
轴承芯
件-编号 |
基本动态
-额定
载荷-磅/牛 |
尺寸（英寸/毫米） |
单元-
重量
-磅/公斤 |
|
A |
B |
C |
D |
F |
G |
H |
J |
K |
N |
O |
P |
R |
S |
T |
|
英寸 |
毫米 |
芯 |
毂 |
|
15/16
1 |
25 |
MST-15
MST-16
MST-305 |
3-015
3-1
5305 |
4381
19487 |
3-7/16
87.3 |
5/8
15.9 |
2-1/4
57.2 |
4-7/16
112.7 |
2
3/16
55.6 |
1-7/16
36.5 |
7/8
22.2 |
1-1/2
38.1 |
7/8
22.2 |
3-1/2
88.9 |
4
101.6 |
1-3/4
44.5 |
1
11/16
42.9 |
1-3/4
44.5 |
17/32 |
3.4
1.54 |
|
1-3/16
1-1/4 |
30 |
MST-19
MST-20
MST-306 |
3-13
2-14
5306 |
5782
25718 |
3
15/16
100.0 |
5/8
15.9 |
2-1/2
63.5 |
5-1/16
128.6 |
2-1/2
63.5 |
1-7/16
36.5 |
7/8
22.2 |
1-11/16
42.9 |
1
25.4 |
3-1/2
88.9 |
4
101.6 |
1-3/4
44.5 |
2
50.8 |
1
15/16
49.2 |
17/32 |
4.0
1.81 |
|
1-7/16 |
35 |
MST-23
MST-307 |
3-17
5307 |
7340
32648 |
4-5/16
109.5 |
3/4
19.1 |
3-1/4
82.6 |
5-11/16
144.5 |
3-1/4
82.6 |
1-15/16
49.2 |
1-1/8
28.6 |
1-15/16
49.2 |
1-3/16
30.2 |
4
101.6 |
4-1/2
114.3 |
2-1/8
54.0 |
2-3/16
55.6 |
2-1/8
54.0 |
11/16 |
6.2
2.81 |
|
1-1/2 |
40 |
MST-24
MST-308 |
3-18
5308 |
7901
35144 |
4-5/16
109.5 |
3/4
19.1 |
3-1/4
82.6 |
5-11/16
144.5 |
3-1/4
82.6 |
1-15/16
49.2 |
1-1/8
28.6 |
1-15/16
49.2 |
1-3/16
30.2 |
4
101.6 |
4-5/8
117.5 |
2-3/16
55.6 |
2-1/4
57.2 |
2-1/16
52.4 |
11/16 |
6.2
2.81 |
|
1-11/16
1-3/4 |
45 |
MST-27
MST-28
MST-309 |
3-111
3-112
5309 |
7889
35090 |
4-1/2
114.3 |
3/4
19.1 |
3-3/8
85.7 |
5-7/8
149.2 |
3-1/4
82.6 |
1-15/16
49.2 |
1-1/8
28.6 |
2-1/32
51.6 |
1-9/32
32.5 |
4
101.6 |
4-5/8
117.5 |
2-3/16
55.6 |
2-5/16
58.7 |
2-3/16
55.6 |
11/16 |
6.4
2.90 |
|
1-15/16
2 |
50 |
MST-31
MST-32
MST-310 |
3-115
2-2
5310 |
9752
43377 |
5
127.0 |
1
25.4 |
3-3/4
95.3 |
6-3/4
171.5 |
4
101.6 |
2-1/2
63.5 |
1-3/8
34.9 |
2-3/16
55.6 |
1-5/16
33.3 |
5-1/8
130.2 |
5-3/4
146.1 |
2-1/4
57.2 |
2-9/16
65.1 |
2-7/16
61.9 |
11/16 |
10.0
4.54 |
|
2-3/16
2-1/4 |
55 |
MST-35
MST-36
MST-311 |
3-23
2-24
5311 |
11789
52437 |
5-5/8
142.9 |
1-1/4
31.8 |
4
101.6 |
7-5/8
193.7 |
4
101.6 |
2-1/2
63.5 |
1-3/8
34.9 |
2-9/16
65.1 |
1-9/16
39.7 |
5-1/8
130.2 |
5-3/4
146.1 |
2-3/8
60.3 |
2
15/16
74.6 |
2
11/16
68.3 |
1-1/16 |
12.3
5.58 |
|
2-7/16
2-1/2 |
65 |
MST-39
MST-40
MST-313 |
3-27
3-28
5313 |
13971
62143 |
6-3/4
171.5 |
1-1/4
31.8 |
4-3/4
120.7 |
8-13/16
223.8 |
4-3/8
111.1 |
2-3/4
69.9 |
1-5/8
41.3 |
2-3/4
69.9 |
1
11/16
42.9 |
5-15/16
150.8 |
6-9/16
166.7 |
3-3/8
85.7 |
3-7/16
87.3 |
3-5/16
84.1 |
1-1/16 |
19.5
8.85 |
|
2-11/16 |
70 |
MST-43
MST-314 |
3-211
5314 |
14839
66004 |
7-1/16
179.4 |
1-1/4
31.8 |
4-3/4
120.7 |
9-1/8
231.8 |
4-3/8
111.1 |
2-3/4
69.9 |
1-5/8
41.3 |
3-1/16
77.8 |
1-3/4
44.5 |
5-15/16
150.8 |
6-9/16
166.7 |
3-3/8
85.7 |
3-5/8
92.1 |
3-7/16
87.3 |
1-1/16 |
19.8
8.98 |
|
2-15/16
3 |
75 |
MST-47
MST-48
MST-315 |
3-215
3-3
5315 |
17412
77449 |
7-3/16
182.6 |
1-1/4
31.8 |
4-3/4
120.7 |
9-1/4
235.0 |
4-3/8
111.1 |
2-3/4
69.9 |
1-5/8
41.3 |
3-1/4
82.6 |
1
15/16
49.2 |
6-1/2
165.1 |
7-1/4
184.2 |
3-3/8
85.7 |
3-3/4
95.3 |
3-7/16
87.3 |
1-1/16 |
23.0
10.43 |
|
3-3/16
3-1/4 |
80 |
MST-51
MST-52
MST-316 |
3-33
2-34
5316 |
18681
83093 |
7-5/8
193.7 |
1-1/2
38.1 |
6
3/16
157.2 |
10-1/4
260.4 |
4-7/8
123.8 |
2-7/8
73.0 |
1-7/8
47.6 |
3-3/8
85.7 |
2-1/32
51.6 |
6-13/16
173.0 |
7
13/16
198.4 |
3-1/2
88.9 |
3-7/8
98.4 |
3-3/4
95.3 |
1
13/16 |
31.8
14.42 |
|
3-15/16
4 |
100 |
MST-63
MST-64
MST-320 |
3-315
3-4
5320 |
29905
133017 |
9-1/4
235.0 |
1-1/2
38.1 |
6-1/2
165.1 |
11-7/8
301.6 |
4-7/8
123.8 |
2-7/8
73.0 |
1-7/8
47.6 |
4-5/8
117.5 |
2
11/16
68.3 |
8-3/8
212.7 |
9-3/8
238.1 |
3-1/2
88.9 |
4-3/4
120.7 |
4-1/2
114.3 |
1
13/16 |
50.0
22.68 | |
