| 固定螺钉锁定ST-204、ST-12、ST-205、ST-20R、ST-23、ST-208 |
|
上海川代轴承机械有限公司 新闻动态 2025-9-15
|
|
|
|
|

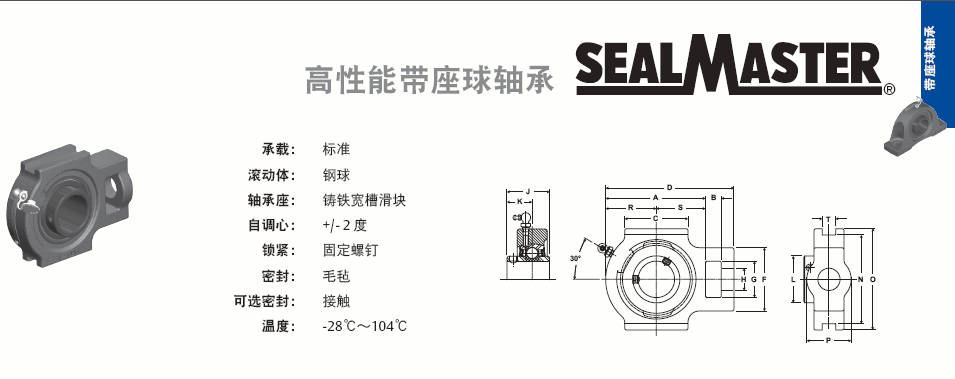

承载： 标准
滚动体： 钢球
轴承座： 铸铁宽槽滑块
自调心： +/- 2 度
锁紧： 固定螺钉
密封： 毛毡
可选密封： 接触
温度： -28℃～104℃
ST 系列标准型滑块单元 － 固定螺钉锁定 |
|
|
孔径 |
型号 |
轴承
芯-件编号 |
基本动
-态额定
-载荷 |
尺寸（英寸/毫米） |
单元 |
|
|
A |
B |
C |
D |
F |
G |
H |
J |
K |
L |
N |
O |
P |
R |
S |
T |
|
|
重量 |
|
|
英寸 |
毫米 |
芯 |
毂 |
|
|
磅/公斤 |
|
|
磅/牛 |
|
|
1/2 |
20 |
ST-8 |
2-08 |
2611
11614 |
2-11/16
68.3 |
5/8
15.9 |
2
50.8 |
3-11/16
93.7 |
2
50.8 |
1-1/4
31.8 |
3/4
19.1 |
1-7/32
31.0 |
23/32
18.3 |
1-3/16
30.2 |
3
76.2 |
3-1/2
88.9 |
1-3/8
34.9 |
1-5/16
33.3 |
1-3/8
34.9 |
17/32 |
2.1
0.95 |
|
|
9/16 |
ST-9 |
2-09 |
|
|
5/8
11/16 |
ST-10
ST-11 |
2-010
2-011 |
|
|
3/4 |
ST-12 |
2-012 |
|
|
ST-204 |
5204 |
|
|
13/16 |
25 |
ST-13 |
2-013 |
2801
12459 |
2-13/16
71.4 |
5/8
15.9 |
2
50.8 |
3-13/16
96.8 |
2
50.8 |
1-1/4
31.8 |
3/4
19.1 |
1-3/8
34.9 |
13/16
20.6 |
1-3/8
34.9 |
3
76.2 |
3-1/2
88.9 |
1-1/2
38.1 |
1-3/8
34.9 |
1-7/16
36.5 |
17/32 |
2.6
1.18 |
|
|
7/8
15/16
1 |
ST-14
ST-15
ST-16 |
2-014
2-015
2-1 |
|
|
ST-205 |
5205 |
|
|
1-1/16 |
30 |
ST-17 |
2-11 |
4381
19487 |
3-7/16
87.3 |
5/8
15.9 |
2-1/4
57.2 |
4-7/16
112.7 |
2-3/16
55.6 |
1-7/16
36.5 |
7/8
22.2 |
1-1/2
38.1 |
7/8
22.2 |
1-19/32
40.5 |
3-1/2
88.9 |
4
101.6 |
1-3/4
44.5 |
1-11/16
42.9 |
1-3/4
44.5 |
17/32 |
3.4
1.54 |
|
|
1-1/8
1-3/16
1-1/4 |
ST-18
ST-19
ST-20R |
2-12
2-13
1-14 |
|
|
ST-206 |
5206 |
|
|
1-1/4 |
35 |
ST-20 |
2-14 |
5782
25718 |
3-15/16
100.0 |
5/8
15.9 |
2-1/2
63.5 |
5-1/16
128.6 |
2-1/2
63.5 |
1-7/16
36.5 |
7/8
22.2 |
1-11/16
42.9 |
1
25.4 |
1-55/64
47.2 |
3-1/2
88.9 |
4
101.6 |
1-3/4
44.5 |
2
50.8 |
1-15/16
49.2 |
17/32 |
4.0
1.81 |
|
|
1-5/16
1-3/8
1-7/16 |
ST-21
ST-22
ST-23 |
2-15
2-16
2-17 |
|
|
ST-207 |
5207 |
|
|
1-1/2
1-9/16 |
40 |
ST-24
ST-25
ST-208 |
2-18
2-19
5208 |
7340
32648 |
4-5/16
109.5 |
3/4
19.1 |
3-1/4
82.6 |
5-11/16
144.5 |
3-1/4
82.6 |
1-15/16
49.2 |
1-1/8
28.6 |
1-15/16
49.2 |
1-3/16
30.2 |
2-1/16
52.4 |
4
101.6 |
4-1/2
114.3 |
2-1/8
54.0 |
2-3/16
55.6 |
2-1/8
54.0 |
11/16 |
6.0
2.7 |
|
|
1-5/8 |
45 |
ST-26 |
2-110 |
7901
35144 |
4-5/16
109.5 |
3/4
19.1 |
3-1/4
82.6 |
5-11/16
144.5 |
3-1/4
82.6 |
1-15/16
49.2 |
1-1/8
28.6 |
1-15/16
49.2 |
1-3/16
30.2 |
2-19/64
58.3 |
4
101.6 |
4-5/8
117.5 |
2-3/16
55.6 |
2-1/4
57.2 |
2-1/16
52.4 |
11/16 |
6.0
2.72 |
|
|
1-11/16
1-3/4 |
ST-27
ST-28 |
2-111
2-112 |
|
|
ST-209 |
5209 |
|
|
1-13/16 |
50 |
ST-29 |
2-113 |
7889
35090 |
4-1/2
114.3 |
3/4
19.1 |
3-3/8
85.7 |
5-7/8
149.2 |
3-1/4
82.6 |
1-15/16
49.2 |
1-1/8
28.6 |
2-1/32
51.6 |
1-9/32
32.5 |
2-15/32
62.7 |
4
101.6 |
4-5/8
117.5 |
2-3/16
55.6 |
2-5/16
58.7 |
2-3/16
55.6 |
11/16 |
6.0
2.72 |
|
|
1-7/8
1-15/16
2 |
ST-30
ST-31
ST-32R |
2-114
2-115
1-2 |
|
|
ST-210 |
5210 |
|
|
2 |
55 |
ST-32 |
2-2 |
9752
43377 |
5
127.0 |
1
25.4 |
3-3/4
95.3 |
6-3/4
171.5 |
4
101.6 |
2-1/2
63.5 |
1-3/8
34.9 |
2-3/16
55.6 |
1-5/16
33.3 |
2-23/32
69.1 |
5-1/8
130.2 |
5-3/4
146.1 |
2-1/4
57.2 |
2-9/16
65.1 |
2-7/16
61.9 |
1-1/16 |
9.8
4.4 |
|
|
2-1/8
2-3/16 |
ST-34
ST-35 |
2-22
2-23 |
|
|
ST-211 |
5211 |
|
|
2-1/4 |
60 |
ST-36 |
2-24 |
11789
52437 |
5-5/8
142.9 |
1-1/4
31.8 |
4
101.6 |
7-5/8
193.7 |
4
101.6 |
2-1/2
63.5 |
1-3/8
34.9 |
2-9/16
65.1 |
1-9/16
39.7 |
2-63/64
75.8 |
5-1/8
130.2 |
5-3/4
146.1 |
2-3/8
60.3 |
2-15/16
74.6 |
2-11/16
68.3 |
1-1/16 |
12.3
5.58 |
|
|
2-3/8
2-7/16 |
ST-38
ST-39 |
2-26
2-27 |
|
|
ST-212 |
5212 |
|
|
2-1/2
2-11/16 |
70 |
ST-40
ST-43
ST-214 |
3-28
2-211
5214 |
13971
62143 |
6-3/4
171.5 |
1-1/4
31.8 |
4-3/4
120.7 |
8-13/16
223.8 |
4-3/8
111.1 |
2-3/4
69.9 |
1-5/8
41.3 |
2-3/4
69.9 |
1-11/16
42.9 |
3-7/16
87.3 |
5-15/16
150.8 |
6-9/16
166.7 |
3-3/8
85.7 |
3-7/16
87.3 |
3-5/16
84.1 |
1-1/16 |
19.0
8.62 |
|
|
2-7/8
2-15/16 |
75 |
ST-46
ST-47
ST-215 |
2-214
2-215
5215 |
14839
66004 |
7-1/16
179.4 |
1-1/4
31.8 |
4-3/4
120.7 |
9-1/8
231.8 |
4-3/8
111.1 |
2-3/4
69.9 |
1-5/8
41.3 |
3-1/16
77.8 |
1-3/4
44.5 |
3-41/64
92.5 |
5-15/16
150.8 |
6-9/16
166.7 |
3-3/8
85.7 |
3-5/8
92.1 |
3-7/16
87.3 |
1-1/16
27.0 |
19.0
8.62 |
|
|
3-3/16 |
80 |
ST-51 |
2-33 |
17412 |
7-3/16 |
1-1/4 |
4-3/4 |
9-1/4 |
4-3/8 |
2-3/4 |
1-5/8 |
3-1/4 |
1-15/16 |
3-59/64 |
6-1/2 |
7-1/4 |
3-3/8 |
3-3/4 |
3-7/16 |
1-1/16 |
22.1 |
|
|
ST-216 |
5216 |
77449 |
182.6 |
31.8 |
120.7 |
235.0 |
111.1 |
69.9 |
41.3 |
82.6 |
49.2 |
99.6 |
165.1 |
184.2 |
85.7 |
95.3 |
87.3 |
27.0 |
10.02 |
|
|
3-1/4
3-3/8
3-7/16 |
|
ST-52
ST-54
ST-55 |
2-34
2-36
2-37 |
18681
83093 |
7-5/8
193.7 |
1-1/2
38.1 |
6-3/16
157.2 |
10-1/4
260.4 |
4-7/8
123.8 |
2-7/8
73.0 |
1-7/8
47.6 |
3-3/8
85.7 |
2-1/32
51.6 |
4-5/32
105.6 |
6-13/16
173.0 |
7-13/16
198.4 |
3-1/2
88.9 |
3-7/8
98.4 |
3-3/4
95.3 |
1-13/16
46.0 |
31.4
14.2 |
| |
固定螺钉锁定ST-204、ST-12、ST-205、ST-20R、ST-23、ST-208现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
