| 双螺栓法兰SFT-16T、SFT-18T、SFT-19T、SFT-20RT、SFT-22T |
|
上海川代轴承机械有限公司 新闻动态 2026-6-23
|
|
|
|
|

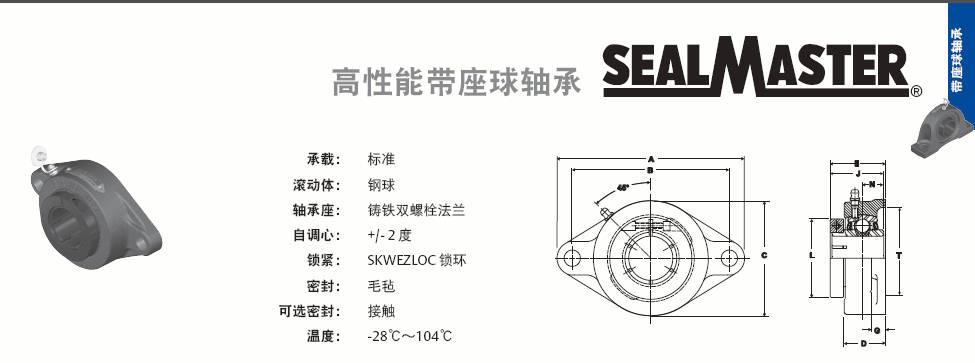

SFT-T 系列标准型双螺栓法兰 － SKWEZLOC 锁环 － 英制
|
|
|
孔径 |
型号 |
轴承芯件
-编号 |
基本动态
额定载荷
磅/牛 |
尺寸（英寸/毫米） |
螺栓-
尺寸 |
单元
重量
磅/公斤 |
|
|
A |
B |
C |
D |
G |
H |
J |
L |
N |
T-芯 |
|
|
英寸 |
|
|
3/4 |
SFT-12T |
2-012T |
2611
11614 |
4-13/32
111.9 |
3-17/32
89.7 |
2-3/8
60.3 |
59/64
23.4 |
7/16
11.1 |
1-11/32
34.1 |
1-9/32
32.5 |
1-3/4
44.5 |
1/2
12.7 |
2
50.8 |
3/8 |
1.3
.59 |
|
|
15/16
1 |
SFT-15T
SFT-16T |
2-015T
2-1T |
2801
12459 |
4-7/8
123.8 |
3-57/64
98.8 |
2-3/4
69.9 |
1-1/32
26.2 |
17/32
13.5 |
1-1/2
38.1 |
1-7/16
36.5 |
1-15/16
49.2 |
9/16
14.3 |
2-3/8
60.3 |
7/16 |
1.8
.82 |
|
|
1-1/8
1-3/16
1-1/4 |
SFT-18T
SFT-19T
SFT-20RT |
2-12T
2-13T
1-14T |
4381
19487 |
5-9/16
141.3 |
4-19/32
116.7 |
3-1/4
82.6 |
1-11/64
29.8 |
17/32
13.5 |
1-5/8
41.3 |
1-9/16
39.7 |
2-3/16
55.6 |
5/8
15.9 |
2-7/8
73.0 |
7/16 |
2.4
1.09 |
|
|
1-1/4 |
SFT-20T |
2-14T |
5782
25718 |
6-1/8
155.6 |
5-1/8
130.2 |
3-3/4
95.3 |
1-11/32
34.1 |
9/16
14.3 |
1-13/16
46.0 |
1-3/4
44.5 |
2-7/16
61.9 |
11/16
17.5 |
3-5/16
84.1 |
7/16 |
3.5
1.59 |
|
|
1-3/8
1-7/16 |
SFT-22T
SFT-23T |
2-16T
2-17T |
5782
25718 |
6-1/8
155.6 |
5-1/8
130.2 |
3-3/4
95.3 |
1-11/32
34.1 |
9/16
14.3 |
1-13/16
46.0 |
1-3/4
44.5 |
2-9/16
65.1 |
11/16
17.5 |
3-5/16
84.1 |
1/2 |
3.5
1.59 |
|
|
1-1/2 |
SFT-24T |
2-18T |
7340
32648 |
6-3/4
171.5 |
5-21/32
143.7 |
4-1/8
104.8 |
1-1/2
38.1 |
9/16
14.3 |
2-5/64
52.8 |
2
50.8 |
2-11/16
68.3 |
3/4
19.1 |
3-1/2
88.9 |
1/2 |
4.8
2.18 |
|
|
1-5/8 |
SFT-26T |
2-110T |
7901
35144 |
7-1/16
179.4 |
5-27/32
148.4 |
4-3/8
111.1 |
1-9/16
39.7 |
9/16
14.3 |
2-7/64
53.6 |
2
50.8 |
2-13/16
71.4 |
3/4
19.1 |
3-7/8
98.4 |
9/16 |
5.3
2.40 |
|
|
1-11/16
1-3/4 |
SFT-27T
SFT-28T |
2-111T
2-112T |
7901
35144 |
7-1/16
179.4 |
5-27/32
148.4 |
4-3/8
111.1 |
1-9/16
39.7 |
9/16
14.3 |
2-7/64
53.6 |
2
50.8 |
2-15/16
74.6 |
3/4
19.1 |
3-7/8
98.4 |
9/16 |
5.3
2.40 |
|
|
1-15/16
2 |
SFT-31T
SFT-32RT |
2-115T
1-2T |
7889
35090 |
7-7/16
188.9 |
6-3/16
157.2 |
4-9/16
115.9 |
1-9/16
39.7 |
9/16
14.3 |
2-7/32
56.4 |
2-3/32
53.2 |
3-3/8
85.7 |
3/4
19.1 |
4
101.6 |
9/16 |
6
2.72 |
|
|
2 |
SFT-32T |
2-2T |
9752
43377 |
8-1/2
215.9 |
7-1/4
184.2 |
5-1/4
133.4 |
1-3/4
44.5 |
13/16
20.6 |
2-3/8
60.3 |
2-1/4
57.2 |
3-1/2
88.9 |
7/8
22.2 |
4-1/4
108.0 |
5/8 |
9
4.08 |
|
|
2-1/8
2-3/16 |
SFT-34T
SFT-35T |
2-22T
2-23T |
9752
43377 |
8-1/2
215.9 |
7-1/4
184.2 |
5-1/4
133.4 |
1-3/4
44.5 |
13/16
20.6 |
2-3/8
60.3 |
2-1/4
57.2 |
3-5/8
92.1 |
7/8
22.2 |
4-1/4
108.0 |
5/8 |
9
4.08 |
| |
双螺栓法兰SFT-16T、SFT-18T、SFT-19T、SFT-20RT、SFT-22T现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
